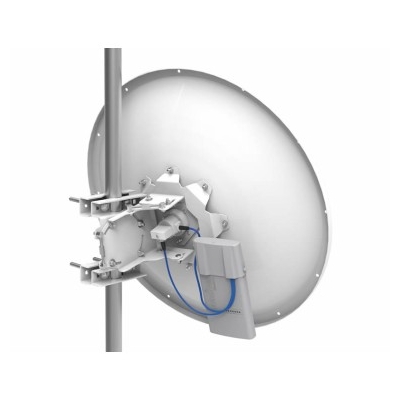

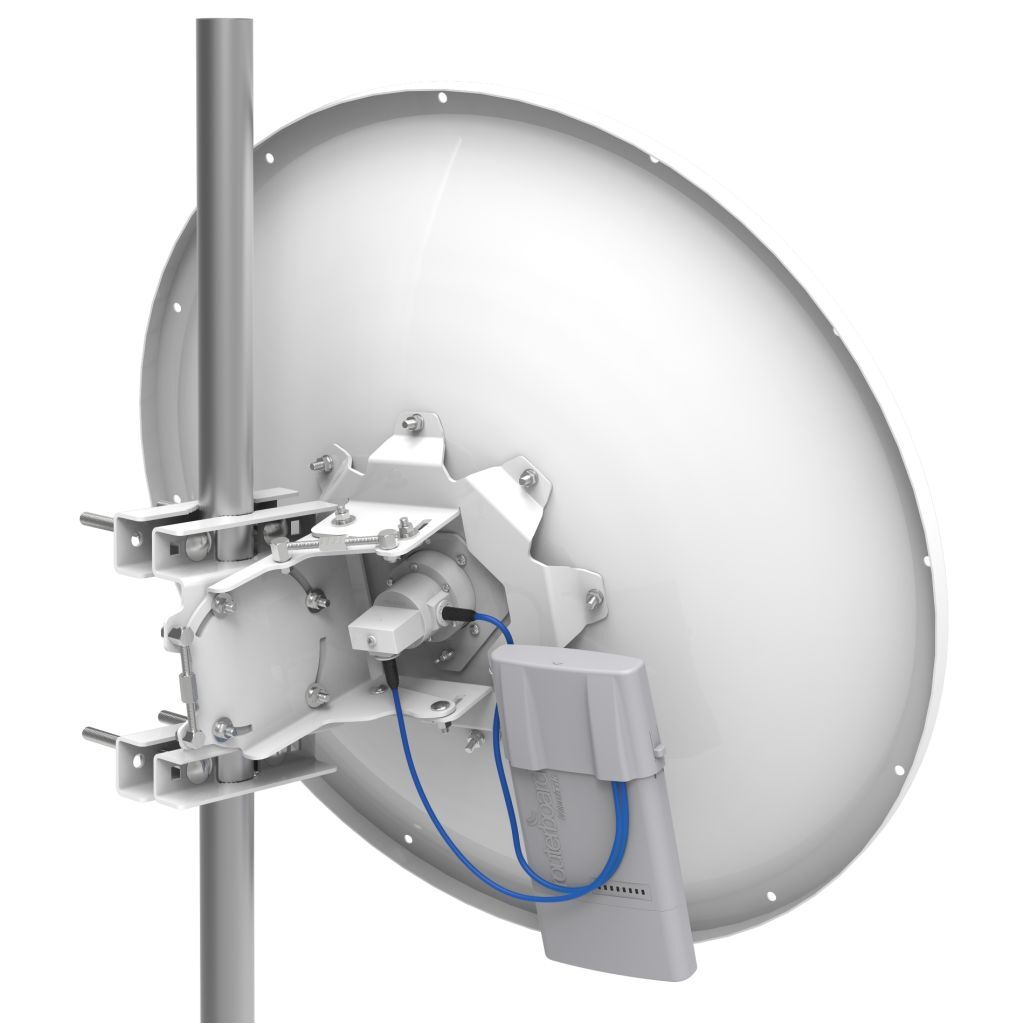

mANT30 is a professional class 5 GHz 30dBi dish antenna, built to the highest industry standards. Built to seamlessly accomodate our Basebox series products, but can be used for any pole mounted wireless device due to the adequate length of the included FlexGuide cable. Two modifications are available - with a standard type mount (MTAD-5G-30D3), and with a precision alignment mount (MTAD-5G-30D3-PA). The antennas come packaged with all necessary accessories and cables. Note: Basebox wireless device pictured for illustrative purposes. It is not included Brochure Quick Guide Slant instructions Assembly instructions Assembly instructions 2
(MTAD-5G-30D3-PA)
| Specifications |
| Product code | MTAD-5G-30D3-PA |
| Tested ambient temperature | -50°C to 80°C(-49°F to 158°F) |
| Certification & Approvals |
| Certification | CE, ROHS |
| Product specifications |
| Beamwidth | +/-2.5 deg |
| Wind Load (125 mph) | 181.4kg (400 lbs), 50 kg at 40 m/s, 28 kg at 30 m/s |
| Cross Polarization | >40 dB |
| Diameter x Depth | 70 x 45cm (27.5 x 17.8in) |
| Elevation adjustment range | +/- 15 deg |
| Frequency Range | 4.7-5.875 GHz |
| Connector | 2x RP-SMA Female (outside thread) |
| Front-to-Back Ratio | >30 dB |
| Polarization | Vertical and Horizontal |
| Impedance | 50 ohms |
| Port to Port Isolation | >40dB min |
| Outdoor Rating | ETSI EN 300 019-2-4 |
| VSWR | ≤ 1.4 typ, ≤ 1.8 max |
| Packaged size | 73x73x20cm (29x29x8in) |
| Weight | 5.7kg (12.6 lbs) |
| Packaged weight | 8.4 kg (18,5) |
| Pole Mount Diameter Range | 3 to 10cm (1.2 to 3.9in) |
| Power Rating | 100W |
| Reflector | Aluminum |
| Standards | EN 302 326 DN1, DN2, DN3, DN5 |
| Wind Survivability | 201kph (125mph) |
| SKU |
MTAD-5G-30D3-PA |
| Brand |
MIKROTIK |
| Shipping Weight |
3.3000kg |
