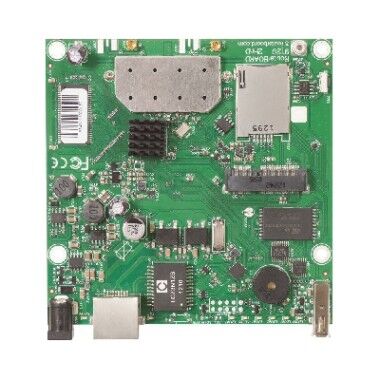

The RB912UAG-2HPnD is very versatile device. It's small wireless router with an integrated high power 2.4GHz wireless card and an additional miniPCIe slot for 802.11 wireless, or 3G card. The Gigabit port helps to utilize the full potential of 802.11n wireless speeds. MiniPCI-express slot supports new WiFi modules now available , for potential dual band application. The integrated wireless card is capable of up to 1000mW output power. It has built in 16kV ESD protection on both the Ethernet and the MMCX ports.
(RB912UAG-2HPnD)
| Specifications |
| Product code | RB912UAG-2HPnD |
| CPU | AR9342 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | 105x105mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Powering |
| Number of DC inputs | 2 (PoE-IN, DC jack) |
| DC jack input Voltage | 8-30 V |
| Max power consumption | 13.5 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 8-30 V |
| Ethernet |
| 10/100/1000 Ethernet ports | 1 |
| Peripherals |
| Number of SIM slots | 1 Modem (Mini SIM) |
| MiniPCI-e slots | 1 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
| Certification & Approvals |
| Certification | FCC, IC |
| IP | IP00 |
| Other |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Beeper | Yes |
| Wireless specifications |
| 2.4 GHz TX/RX | | 2.4 GHz | Transmit (dBm) | Receive Sensitivity | | 1MBit/s | 30 | -100 | | 11MBit/s | 30 | -94 | | 6MBit/s | 30 | -96 | | 54MBit/s | 27 | -78 | | MCS0 | 30 | -96 | | MCS7 | 24 | -73 | |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Wireless 2.4 GHz chip model | AR9342 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| SKU |
RB912UAG-2HPnD |
| Brand |
MIKROTIK |
| Shipping Weight |
3.3000kg |
