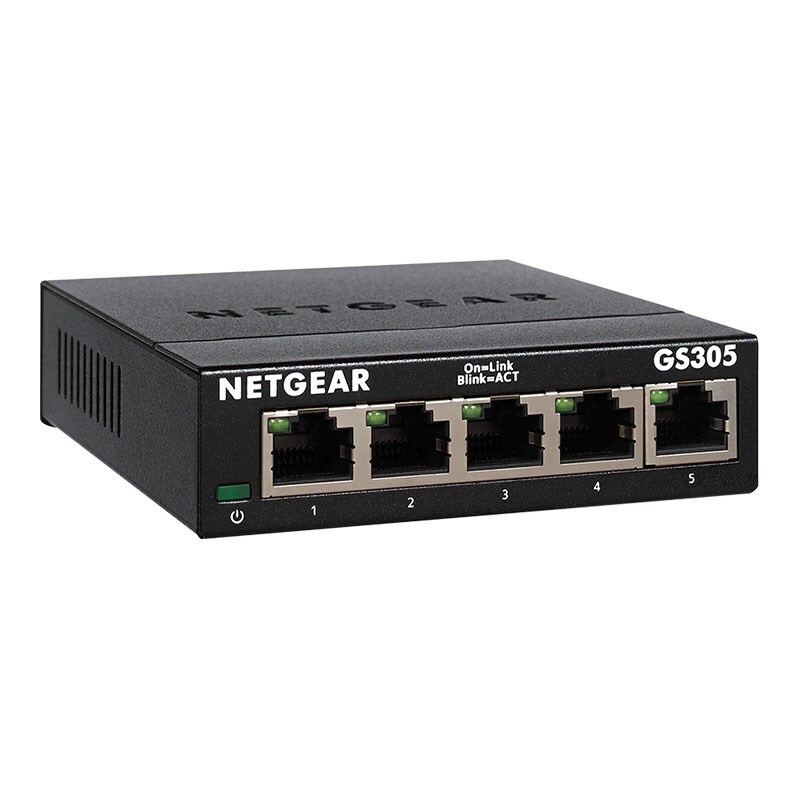

NETGEAR GS305-300AUS
NETGEAR (GS305) SOHO 5-PORT GbE UNMANAGED SWITCH

Name: Netgear GS305v3 SOHO 5-Port Gigabit Unmanaged Switch
Brand: NETGEAR
SKU: GS305-300AUS
Price: 37 AUD
Availability: InStock

Gigabit ethernet connectivity

Fan-less design for quiet operation

Power savings with energy-efficient technology

Simple set up without requiring any software or configuration

Overview:

Expanding Wired Connectivity for SOHO Networks

NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly.

The GS305/GS305 and GS308 with Power-over-Ethernet (PoE) provides power and data from a single Ethernet (CAT-5) cable to devices such as IP cameras, VoIP/Internet-based phones, wireless access points, etc.

Just step up to GS316, GS324 or GS348 directly to avoid congestion due to stacking up lower port count switches and be ready for future expansion

Highlights

Auto-MDI/MDIX eliminates the need for crossover cables
LED indicators for ease of use
Energy-efficient technology for power savings
Fanless design for silent operation
Auto-negotiation for automatic connection at the highest common speed between switch and an end device
Non-blocking switching architecture for maximum throughput at wire speed
802.1p QoS for traffic/frame prioritization
Plug-and-play; no setup required
Durable and rugged metal case
Desktop or wall-mountable (5 and 8 models); GS324 is desktop, wall-mountable, and rack-mountable (rack-mount kit included); GS348 is rackmountable (rack-mount kit included)
Ideal for small office and home networks
Standards-based technology ensures interoperability with any standardsbased devices in the existing network
Power up to 4 PoE-capable devices(GS305/GS305 and GS308 only)
802.3af Power Over Ethernet (PoE) for IP cameras, VoIP/Internet-based phones, wireless access points (GS308 only)

Support & Warranty

Warranty: These products are backup by a NETGEAR limited Hardware Warranty up to 3 years (depending on model and region).
Support : 24/7 basic technical support provided for 90 days from purchase date, when purchased from a NETGEAR authorized reseller.

Features:

PERFORMANCE

ETHERNET PORT CONFIGURATION

5 Gigabit ports

PLUG & PLAY:

Simple setup with no software or configuration needed.

FULL PERFORMANCE

Non-blocking switching architecture for maximum throughput at wire speed

HARDWARE

SILENT OPERATION

The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments

ENERGY EFFICIENT

Designed to optimize power usage lowering its cost to operate.

Metal Case

Durable and Rugged

VERSATILE MOUNTING OPTIONS

The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments

STANDARDS-BASED DESIGN

Ensure interoperability with any standards-based PDs

GS305v3 FEATURES

Plug-and-play Automatic connectivity to your router or modem of 4 or 7 additional wired connections. No need for an IT expert!
All speeds welcome Expand your network instantly, and give your devices either 100Mb, 1, 2.5, 5 or 10-Gigabit, automatically
Mounting flexibility Small and silent desktop or rackmount form factor for quiet operation – Adapts to your needs and configuration in any environment
Industry leading support ProSAFE LIFETIME Warranty, Next Business Day replacement and 24/7 chat with a NETGEAR expert
Energy efficient Switches automatically adjust power consumption according to the link status and cable length.

Diagram:

NETGEAR GS108 Diagram

(GS305-300AUS)

Specifications:

NETGEAR GS305-300AUS Specifications
Physical Specification	Dimensions : 158 x 101 x 29mm (6.2 x 4.0 x 1.1in) Weight : 0.88 kg (1.94 lb)
Technical Specification	Product name : NETGEAR 5-Port Gigabit Ethernet Unmanaged Switch (GS305v3) Speed : Gigabit Number of Ports : 5 Energy Efficient Ethernet support : Yes - Compliant with IEEE802.3az Energy Efficient Ethernet mode Jumbo frame support : 9,720 bytes MAC table size : 2K Packet buffer size : 128KB Power Supply : External PoE Auto balance : N/A PoE budget : N/A Protocols : IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3i 10BASE-T Ethernet IEEE 802.3x Flow Control IEEE 802.1p Priority QoS (all models) IEEE 802.3 CSMA/CD 802.3az Energy Efficient Ethernet
Support & Warranty	Warranty: These products are backup by a NETGEAR limited Hardware Warranty up to 3 years (depending on model and region). Support : 24/7 basic technical support provided for 90 days from purchase date, when purchased from a NETGEAR authorized reseller.
