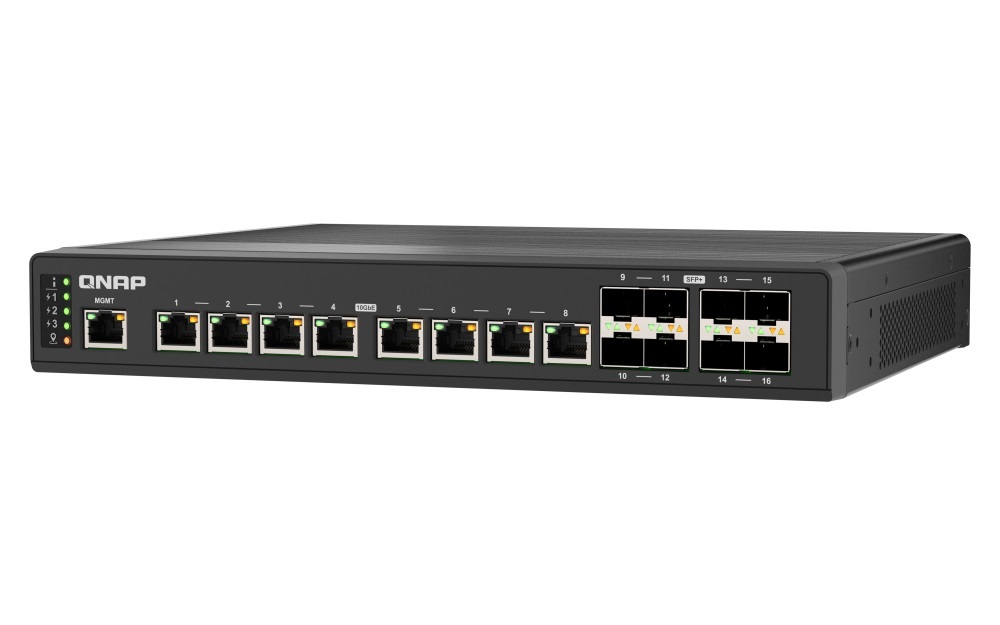

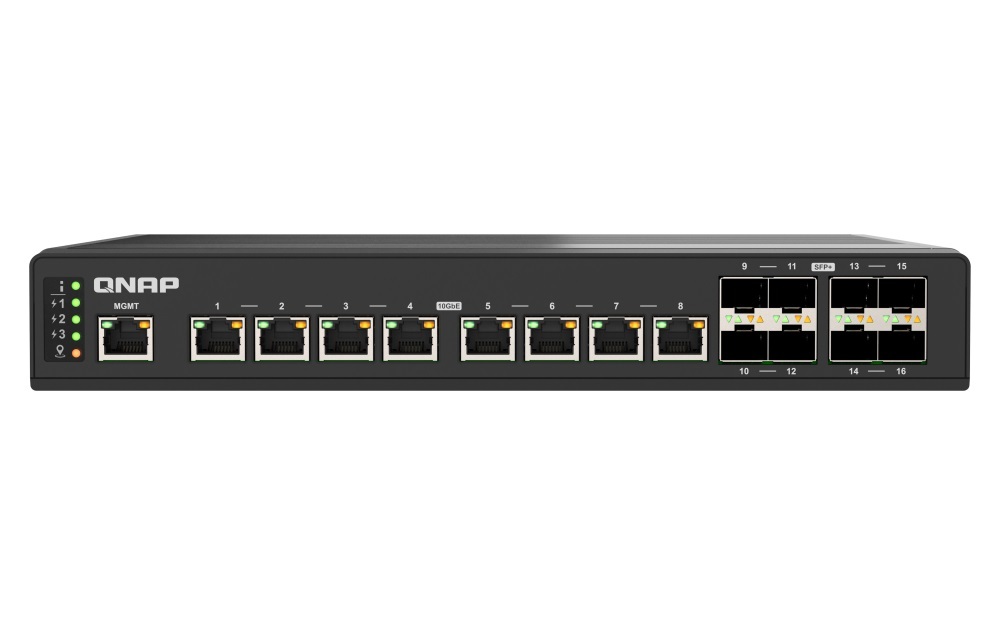

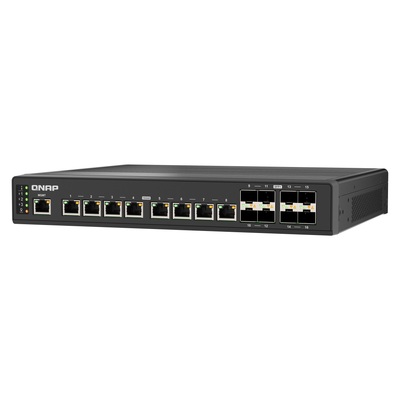

Designed for harsh industrial environments, the QSW-IM3216-8S8T high-speed switch features a fanless IP20-rated enclosure with a redundant DC 9-54V power supply. It provides sixteen 10GbE ports, practical L2 management functions, and can be mounted in a rack, placed on a desktop, or wall mounted. This range of installation options makes it an economical and efficient high-speed networking solution for factory automation, AI smart manufacturing, smart cities, automotive industry, traffic monitoring, and other applications. The QSW-IM3216-8S8T was designed and manufactured in Taiwan, offering high-quality and reliable networking solutions.

full-10gbetemperaturefanless

  • IP20 industrial-grade protection

    Rugged, shock-resistant, IP20 rated, and with a fanless design. Capable of operating in temperatures from -30°C to 65°C (-22°F to 149°F).

  • 16 high-speed 10GbE ports

    Includes 8 x 10GbE SFP+ fiber ports (10G/1G) and 8 x 10GbE RJ45 network ports (10G/5G/2.5G/1G). Supports a range of network devices and link aggregation for up to 20Gbps network bandwidth.

  • Redundant power design

    Has two wide voltage DC 9-54V power inputs and a circuit breaker, ensuring continuous operation. A DC power adapter is also included.

  • More secure network management

    Supports ACL, Qfinder Pro login, and SNMP management to ensure network and device connection security with centralized network device management and maintenance.

  • Simplified AV-over-IP configuration

    Manages IGMP Snooping and IGMP Snooping-controlled traffic forwarding for low-latency network connections with multiple AV endpoint devices.

  • Smart graphical Web management

    QSS (QNAP Switch System) simplifies network management with an overview dashboard, port management, and setup guides.

Reliable high-speed industrial networks on a budget

QNAP provides complete industrial-grade networking and storage solutions. Pair the QSW-IM3216-8S8T with a TS-i410X industrial NAS to build a powerful and secure network transmission and data storage solution, meeting data storage and management needs in extreme climates.

Robust, wide-temperature, and shock-resistant

The QSW-IM3216-8S8T is IP20 rated with a fanless design capable of enduring temperatures of -30 ~ 65° Celsius in airy environments (0.5~0.7m/s ) or -30 ~ 45° Celsius in enclosed space. It operates reliably in factories, warehouses, offices, and enterprise IT rooms.

16x 10GbE ports for connecting more high-speed network devices

The QSW-IM3216-8S8T features 8 x 10GbE SFP+ fiber ports and 8 x 10GbE RJ45 ports, with a backplane bandwidth of up to 320Gbps. It provides connectivity for uplinks to data center switches or servers, or connections to 10GbE NAS, workstations, AV-over-IP endpoints, and various SNMP network devices, allowing for a flexible and high-speed network transmission infrastructure.

  • Connecting 10GbE NAS, servers, and computers

    The 10GbE RJ45 ports are compatible with 10GBASE-T and Multi-Gigabit NBASE-T™ standards, with backward compatibility with 5G/2.5G/1G. 10GbE NAS, servers, and computers are all supported. The 10GbE SFP+ fiber ports also support 1GbE SFP speed devices.

  • Uncompromising AV-over-IP experience

    Direct AV traffic to specific client devices for efficient bandwidth utilization in particular applications or scenarios, such as video walls.

  • Manage all networked devices

    Supports SNMP for centrally and securely management over all networked devices in your network environment, such as NAS, routers, network switches, workstations, modems, IP phones, and IP cameras.

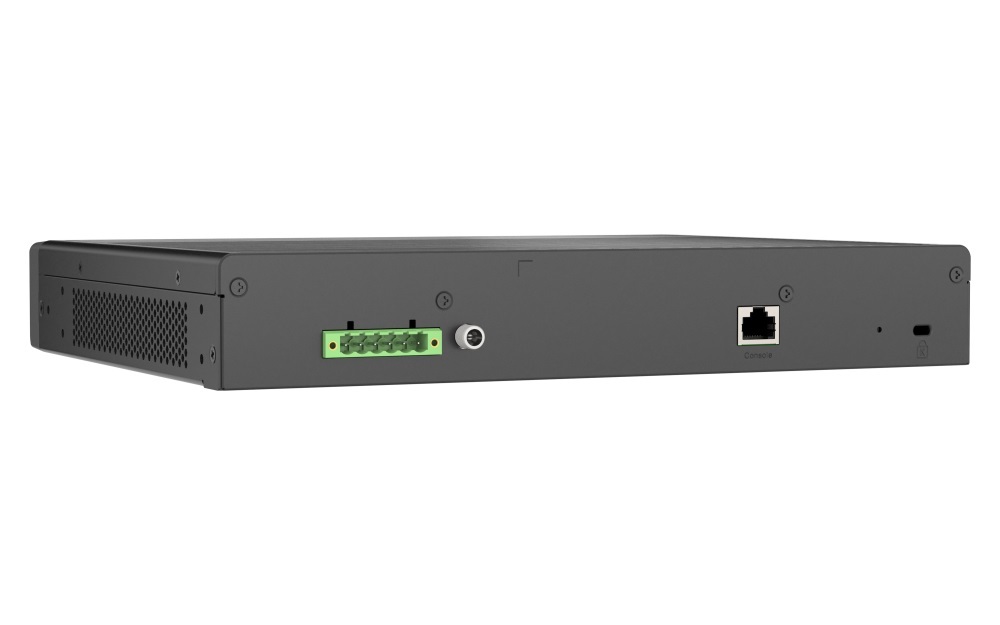

Redundant DC power for reliable operations

Provides dual DC 9-54V power inputs with redundancy and a circuit breaker, adapting to various industrial power sources. Automatic power cut-off ensures electrical safety in case of voltage abnormalities.

Supports power failure relays that can connect to alarms to issue immediate alerts. If the system detects a power failure, the protection system immediately sends an alarm notification.

Fanless, heat dissipation design

With its fanless design and smart ventilated construction, the QSW-IM3216-8S8T ensures high-speed network performance with easier maintenance.

QSS: Graphical UI for management over all network devices

QNAP Switch System (QSS) features an easy-to-use web interface, allowing you to easily perform various L2 network management functions.

  • Overview dashboard

    View real-time system information, port connection status, and port traffic.

  • AV-over-IP functions

    Provides AV-over-IP Wizard, IGMP Snooping, and VLAN functions.

  • SNMP

    Enable SNMPv2c, v3 login or public SNMP MIB to collect and organize information about all SNMP-enabled devices on IP networks.

  • SNMP

    Enable SNMPv2c, v3 login or public SNMP MIB to collect and organize information about all SNMP-enabled devices on IP networks.

Optimize network performance with bandwidth and packet control

The QSW-IM3216-8S8T provides bandwidth and packet control functions (such as LACP, VLAN, QoS, and IGMP Snooping) to boost network performance through IP grouping and bandwidth management.

  • LACP

    Link Aggregation combines multiple network connections to increase throughput and protect against connection failure.

  • VLAN

    Virtual Networks allows groups of devices from different networks to be combined into a single network.

  • QoS

    QoS (Quality of Service) prioritizes bandwidth usage to optimize network resource allocation.

  • IGMP Snooping

    IGMP snooping assists in minimizing bandwidth loss and preventing network information leakage.

Powerful security and system functions

The QSW-IM3216-8S8T has powerful security and system functions (including ACL, LLDP, RSTP and Flow Control) to help administrators enhance network reliability using access controls, troubleshooting, loop prevention and avoiding packet loss.

  • ACL

    Filters packets based on rules to offer firewall-like security protection.

  • LLDP

    Allows devices to advertise device information to directly-connected peers/neighbors to simplify troubleshooting processes.

  • RSTP

    Ensures loop-free topology for Ethernet networks by blocking or forwarding traffic.

  • Flow Control

    Balances traffic between a sender and a receiver to avoid network congestion.

QNAP high-speed switch solutions for diverse business network environments

QNAP provides comprehensive enterprise managed and unmanaged switches with speeds ranging from 2.5GbE, 10GbE to 25GbE and covering PoE, industrial-grade, rackmount, and desktop models. QNAP’s all-inclusive high-speed switches assist businesses in quickly deploying high-speed network infrastructure, accelerating enterprise backbone, smart hotels, retail, and industry 5.0 applications.

Extend hardware warranty up to 5 years

The QSW-IM3216-8S8T is backed by a 2-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years.

(QSW-IM3216-8S8T)



Management Type Web Managed
Number of Ports 16
10GbE SFP+ 8 (10G/1G)
10GbE BASE-T (RJ45) 8 (10G/5G/2.5G/1G/100M)
Management Port 1 x 1GbE RJ45
Power Supply Description Internal Power supply Unit
Max. Power Consumption 48.632W
Input Power Type AC
Input Voltage Range 100-240VAC, 50/60Hz
MAC Address Table 16K
Total Non-Blocking Throughput 160Gbps
Switching Capacity 320Gbps
Management Interface Web
Console RJ45
Fan Fanless
Supported Standards IEEE 802.3 Ethernet
IEEE 802.3u 100BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3bz 2.5G/5GBase-T
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3an 10GBASE-T
IEEE 802.3ae 10G Fiber
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.1Q VLAN Tagging
IEEE 802.1w RSTP
IEEE 802.3ad LACP
IEEE 802.1AB LLDP
IEEE 802.1p Class of Service
Form Factor Rackmount
LED Indicators Per Port: Speed/Link/Activity
Per System: Status/Power1/Power2/Power3/Locator
Buttons Reset button
Dimensions (HxWxD) 43.5 x 285 x 231.5 mm
Weight (Net) 4.26 kg
Weight (Gross) 5.72 kg
Operating Temperature "Natural convection (in airy environments 0.5~0.7m/s) operating temperature
-30°C-65°C (-22°F –149°F) in airy environments
Non natural convection operating temperature
-30°C-45°C (-22°F –113°F)"
Relative Humidity 5~95% Non-condensing
Certifications CE, FCC, VCCI, BSMI
Electromagnetic Compliance CLASS A
Jumbo Frames 9K
Warranty 2 Years

Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications and refer to the hardware user manual to install compatible QNAP memory modules.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.


SKU QSW-IM3216-8S8T
Brand QNAP
Shipping Weight 5.3100kg
Shipping Width 0.450m
Shipping Height 0.250m
Shipping Length 0.300m
Shipping Cubic 0.033750000m3

Maunfacturer Warranty: 2 Years Maunfacturer Warranty
