Sixteen 2.5GbE PoE+ ports
Ports 116 provide up to 30W per port for compatible powered devices.
QNAP QSW-M2116P-2T2S 16-Port PoE+ 2-Port PoE++ 2-Port SFP+ Managed Switch
Model # QSW-M2116P-2T2S
-
SKU: QSW-M2116P-2T2S
- Pick Up Available
- Australian Warranty
- Checkout Securely
QNAP Layer 2 PoE managed switch
QNAP QSW-M2116P-2T2S 20-Port 2.5GbE and 10GbE PoE Managed Switch

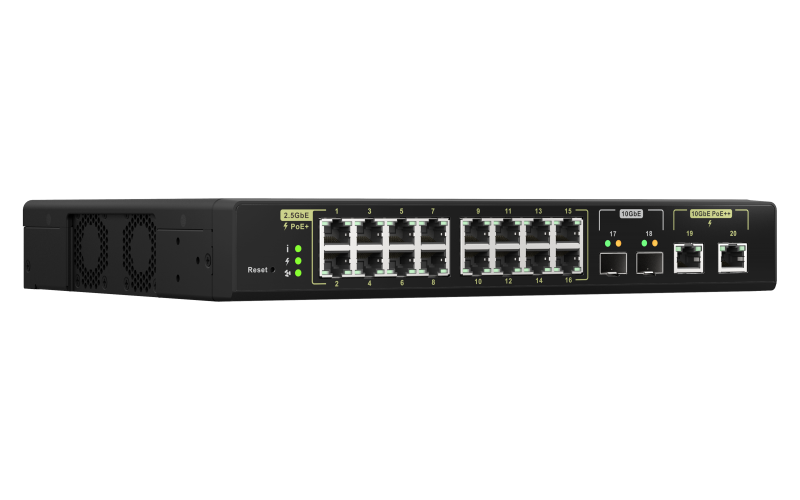

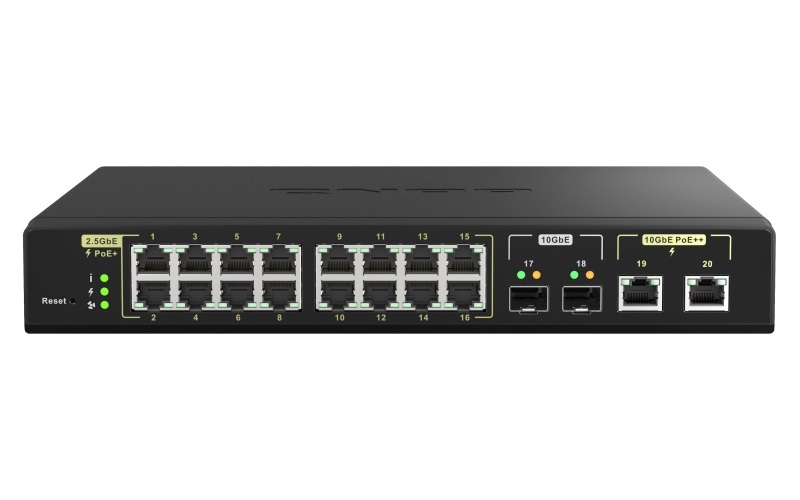

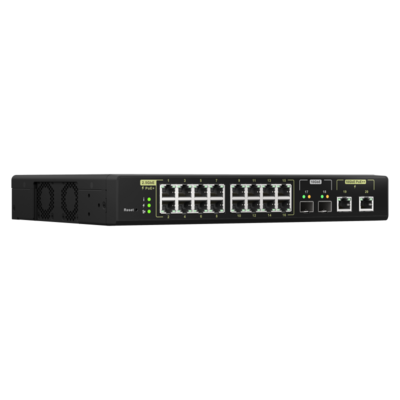

A 20-port rackmount switch with sixteen 2.5GbE PoE+ ports, two 10GbE PoE++ RJ45 ports, two 10GbE SFP+ ports and a 280W PoE budget.
Network ports20
PoE ports18 total
PoE budget280W
Switching capacity160Gbps
PoE+ access with 10GbE PoE++ and SFP+ uplinks
Ports 116 provide 2.5GbE connectivity with up to 30W PoE+ per port. Ports 1920 provide multi-speed 10GbE RJ45 with up to 90W PoE++, while two 10GbE SFP+ interfaces support high-speed uplinks.
Management, performance and deployment
- QSS PoE functions include scheduling, power prioritisation, power enable/disable and real-time powered-device status.
- Layer 2 functions include VLAN, LACP, QoS, IGMP Snooping, ACL, LLDP, port mirroring and loop protection.
- The supplied performance values are 160Gbps switching capacity and 80Gbps total non-blocking throughput.
- The rackmount chassis uses an internal AC power supply and has maximum power consumption listed as 350W.
PoE budget planning
The 30W and 90W values are per-port maximums. The combined load of all connected powered devices must remain within the switchs 280W total PoE power budget.
Frequently asked questions
Answers below are based only on the supplied product information for QSW-M2116P-2T2S.
How many ports does the QSW-M2116P-2T2S provide?
It provides 20 network ports: sixteen 2.5GbE RJ45 ports, two 10GbE RJ45 ports and two 10GbE SFP+ ports.
How many ports provide PoE power?
Eighteen RJ45 ports provide PoE: sixteen PoE+ ports and two PoE++ ports.
What power is available from the PoE ports?
Ports 116 provide up to 30W per port, while ports 1920 provide up to 90W per port, subject to the 280W total PoE budget.
What PoE management functions are supplied?
The supplied specifications list PoE scheduling, power prioritisation, power enable/disable and real-time powered-device status and consumption information.
What switching performance is specified?
The supplied specifications list 160Gbps switching capacity and 80Gbps total non-blocking throughput.
What warranty applies to the QSW-M2116P-2T2S?
The supplied specifications state a 2-year QNAP manufacturer warranty.
(QSW-M2116P-2T2S)
Features and highlights
QNAP QSW-M2116P-2T2S 20-Port 2.5GbE and 10GbE PoE Managed Switch
Two 10GbE PoE++ ports
Ports 1920 support 10G to 100M and provide up to 90W per port.
Dual 10GbE SFP+ uplinks
Provides fibre or DAC backbone connectivity alongside the powered RJ45 ports.
Intelligent PoE management
QSS supports scheduling, power priority and real-time power-status information.
Additional supplied highlights
- 280W total PoE power budget across 18 PoE-capable ports.
- 160Gbps switching capacity and 80Gbps total non-blocking throughput.
- 32K MAC address table and support for 9K jumbo frames.
- Two-year QNAP manufacturer warranty.
Technical specifications
Specifications below are organised from the supplied product information for QSW-M2116P-2T2S.
| Specification | Details |
|---|---|
| Product and Management | |
| Model | QSW-M2116P-2T2S |
| Management Type | Web Managed |
| Management Interface | Web |
| Console | RJ45 |
| Management System | QNAP Switch System (QSS) |
| Network Interfaces | |
| Number of Ports | 20 |
| 10GbE SFP+ | 2 |
| 10GbE BASE-T (RJ45) | 2 |
| 2.5GbE (RJ45) | 16 |
| 10GbE RJ45 Supported Speeds | 10G / 5G / 2.5G / 1G / 100M |
| Power over Ethernet | |
| Total PoE Ports | 18 |
| PoE PSE | IEEE 802.3af, 15.4W Ports 116 |
| PoE+ PSE | IEEE 802.3at, 30W Ports 116 |
| PoE++ PSE | IEEE 802.3bt, 90W Ports 1920 |
| PoE Power Output | Ports 116: 30W per port Ports 1920: 90W per port |
| Total PoE Power Budget | 280W |
| PoE Management Functions | PoE scheduling, power supply prioritisation, power enabling and disabling, real-time powered-device status and power consumption information |
| Switching Performance | |
| MAC Address Table | 32K |
| Total Non-Blocking Throughput | 80Gbps |
| Switching Capacity | 160Gbps |
| Jumbo Frames | 9K |
| Layer 2 Management Features | |
| Port Management | Port status, port statistics, port configuration, jumbo frame support, IEEE 802.3x flow control and auto-negotiation of speed and duplex modes |
| VLAN | VLAN configuration, port-based private VLAN and IEEE 802.1Q-based VLAN |
| Port Trunking | Port trunking and LACP groups |
| QoS | Bandwidth control and traffic classification |
| IGMP | IGMP snooping v2 |
| Security | Access Control Lists by IP address or MAC address, static MAC address and rate limits |
| Management Services | LLDP remote device, web UI, SNTP, DNS and DHCP client entry |
| Advanced Applications | Port mirroring, loop protection and Wake-on-LAN |
| Supported Standards | |
| Ethernet and Networking Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3an 10GBASE-T IEEE 802.3ae 10G Fiber IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.3ad LACP IEEE 802.1AB LLDP IEEE 802.3af/at/bt Power over Ethernet |
| Power and Cooling | |
| Power Supply | Internal power supply unit |
| Input Power Type | AC |
| Input Voltage Range | 100240VAC, 50/60Hz |
| Maximum Power Consumption | 350W |
| Fan | 2 × PWM double ball bearing fans |
| Physical Specifications | |
| Form Factor | Rackmount |
| Dimensions (H × W × D) | 43.5 × 285 × 234.8mm |
| Net Weight | 2.08kg |
| Gross Weight | 2.13kg |
| LED Indicators | Per port: Speed, link and activity Per system: Status, PoE and fan |
| Buttons | Reset button |
| Operating Environment | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 595%, non-condensing |
| Compliance and Warranty | |
| Certifications | CE, FCC, VCCI, BSMI |
| Electromagnetic Compliance | Class A |
| Warranty | 2 years |
Note: Per-port PoE maximums are subject to the 280W total PoE power budget.
| SKU | QSW-M2116P-2T2S |
| Model # | QSW-M2116P-2T2S |
| Brand | QNAP |
| Shipping Weight | 2.1000kg |
| Shipping Width | 0.380m |
| Shipping Height | 0.290m |
| Shipping Length | 0.080m |
QNAP2-year
QNAP manufacturer warranty
The QNAP QSW-M2116P-2T2S is supplied with a 2-year QNAP manufacturer warranty.
Warranty coverage, eligibility and claim assessment are subject to QNAP terms. Please retain your DeviceDeal tax invoice as proof of purchase.
