Active 10m signal extension
Integrated bus-powered amplifier boosts the DisplayPort signal without an external power supply.

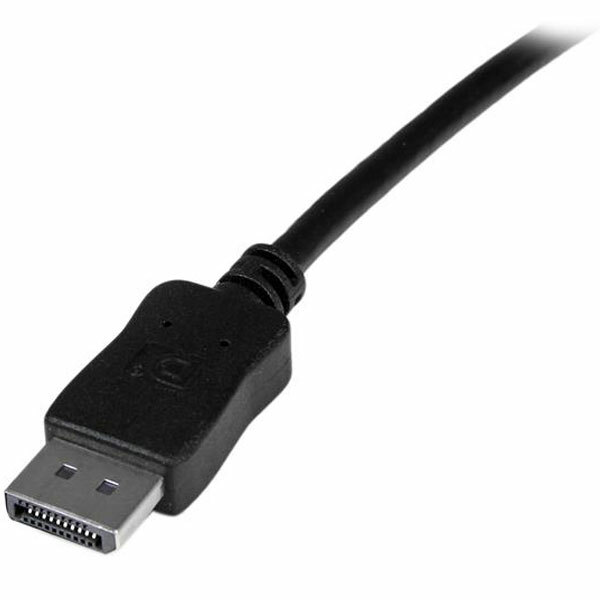

StarTech 10m Active DisplayPort Cable (M/M), Black - DISPL10MA
Model # DISPL10MA
-
SKU: DISPL10MA
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech.com · DISPL10MA
StarTech 10m Active DisplayPort Cable - 4K 30Hz
Extend a DisplayPort source-to-display connection to 10m using an integrated bus-powered signal booster, with current feature support up to 4K 30Hz.
10m active cable4K 30Hz current featureUnidirectional2-year warranty
Product overview
DISPL10MA is a directional active DisplayPort 1.1a cable. The source-labelled connector must attach to the computer and the display-labelled connector to the monitor or projector; the cable does not work in reverse.
Features that matter
Current 4K 30Hz feature rating
The current technical feature lists 3840 x 2160 at 30Hz with 10.8Gbps HBR bandwidth.
Audio and DisplayPort features
Supports up to eight-channel audio, MST pass-through, GTC timing and 3D stereo at 1080p 60Hz.
Flexible shielded construction
Uses 32 AWG conductors, PVC jacket and aluminium-Mylar foil with copper-braid shielding.
What to know before ordering
Directional installation
Connect the end labelled Source to the computer and Display to the monitor or projector. The cable is not reversible.
Official resolution conflict
Current feature data lists 4K 30Hz, while older narrative text lists WQXGA 2560 x 1600. Use 4K 30Hz only after confirming the full source/display chain.
No external power
The active circuitry is powered through DisplayPort; no separate adapter is included or required.
Warranty confidence in Australia
Australian version · Official StarTech.com warranty
This item is the Australian version supplied by DeviceDeal and is covered by the official two-year StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Frequently asked questions
What is StarTech DISPL10MA?
DISPL10MA is a 10m active, unidirectional DisplayPort male-to-male cable with an integrated signal booster.
What is the maximum resolution?
The current official feature specification lists up to 3840 x 2160 at 30Hz; older narrative text lists 2560 x 1600, so the full signal chain should be verified.
Is the cable bidirectional?
No. The Source-labelled end connects to the computer and the Display-labelled end connects to the monitor or projector.
Does it need an external power adapter?
No. Its active amplifier is bus powered through the DisplayPort connection.
Does it carry audio?
Yes. The current feature specification lists support for up to eight-channel audio.
Does it support MST?
Yes. MST pass-through is listed, subject to compatible source, operating system, displays and topology.
What is included in the package?
The package contains one 10m active DisplayPort male-to-male cable.
What warranty applies in Australia?
DISPL10MA is the Australian version supplied by DeviceDeal and is covered by the official two-year StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.
(DISPL10MA)
Features and highlights
DISPL10MA key capabilities
Product-specific highlights verified for this exact StarTech.com model.
Active 10m signal extension
Integrated bus-powered amplifier boosts the DisplayPort signal without an external power supply.
Current 4K 30Hz feature rating
The current technical feature lists 3840 x 2160 at 30Hz with 10.8Gbps HBR bandwidth.
Audio and DisplayPort features
Supports up to eight-channel audio, MST pass-through, GTC timing and 3D stereo at 1080p 60Hz.
Flexible shielded construction
Uses 32 AWG conductors, PVC jacket and aluminium-Mylar foil with copper-braid shielding.
Key highlights
- 10m active DP cable
- Current feature: 4K 30Hz
- 10.8Gbps HBR
- 8-channel audio · MST
- Official two-year StarTech.com manufacturer warranty in Australia
Technical specifications
StarTech DISPL10MA
Verified specifications and package details for the exact model.
General and Connectivity
Product type
Active unidirectional DisplayPort cable
Cable length
10m
Connectors
DisplayPort male to DisplayPort male
Direction
Source-labelled end to host; Display-labelled end to display
External power
Not required; bus powered
Warranty
2 Years
UPC
065030854221
Video and Audio
Current feature maximum
3840 x 2160 at 30Hz
Older narrative maximum
WQXGA 2560 x 1600; conflicts with current feature
Purchase-planning value
Use current explicit 4K 30Hz feature only after verifying the complete signal chain
Bandwidth
10.8Gbps HBR
Audio
Up to 8 channels
Other protocols
MST; GTC; 3D stereo 1080p 60Hz
Content protection
HDCP and DPCP capable
Revision
DisplayPort 1.1a; backward compatible with DP 1.1
Construction and Environmental
Wire gauge
32 AWG
Conductors
19
Jacket
Black PVC; CMG fire rating
Shielding
Aluminium-Mylar foil with copper braid
Connector plating
Nickel
Product dimensions (L x W x H)
10000 x 20 x 12mm
Product weight
452g
Operating temperature
045°C
Storage temperature
-2070°C
Packaging
Package dimensions (W x D x H)
330 x 255 x 40mm
Shipping weight
466g
Package contents
1 x 10m active DisplayPort cable
| SKU | DISPL10MA |
| Barcode # | 65030854221 |
| Brand | Startech |
| Shipping Weight | 0.4400kg |
| Shipping Width | 0.240m |
| Shipping Height | 0.020m |
| Shipping Length | 0.260m |
| Shipping Cubic | 0.001248000m3 |
Official StarTech.com manufacturer warranty
2 Years
This item is the Australian version supplied by DeviceDeal and is covered by the official two-year StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
This warranty statement applies to StarTech DISPL10MA.
