StarTech.com · PEX1394B3LP

StarTech 2b 1a LP PCI Express FireWire Card - PEX1394B3LP

Low-profile PCIe expansion card with two FireWire 800 ports and one FireWire 400 port using a native Texas Instruments controller.

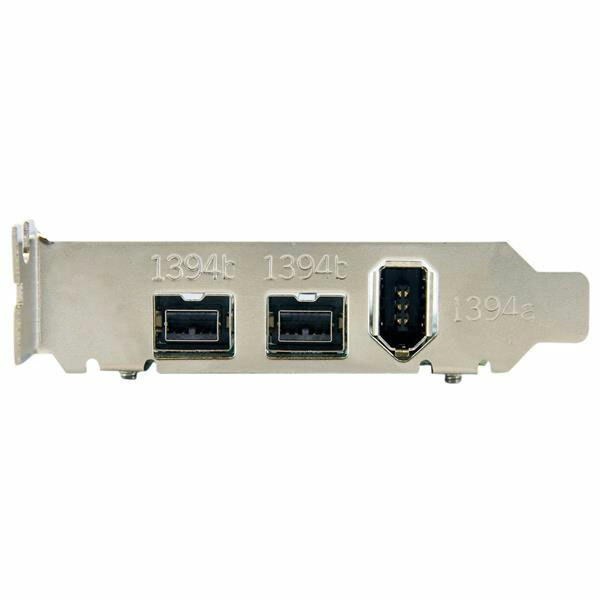

Quick answer: Adds two 9-pin IEEE 1394b FireWire 800 ports and one 6-pin IEEE 1394a FireWire 400 port to a PCIe x1 or larger system.

Best forConnecting compatible DV cameras, audio interfaces, external drives and legacy professional FireWire equipment.

Check before orderingConfirm the operating system and peripheral have current FireWire support. The card requires a PCIe x1 or larger slot; LP4 power is available.

Answers before you buy

Frequently asked questions

What does PEX1394B3LP do?

Adds two 9-pin IEEE 1394b FireWire 800 ports and one 6-pin IEEE 1394a FireWire 400 port to a PCIe x1 or larger system.

Who is this product best for?

Connecting compatible DV cameras, audio interfaces, external drives and legacy professional FireWire equipment.

What should I check before ordering?

Confirm the operating system and peripheral have current FireWire support. The card requires a PCIe x1 or larger slot; LP4 power is available.

Does it require drivers or software?

Supported operating systems use the relevant FireWire drivers; confirm OS and peripheral compatibility before ordering.

What is included in the package?

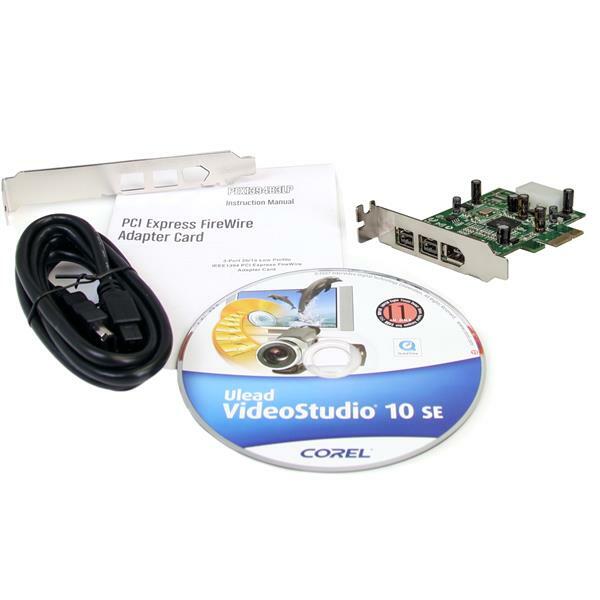

FireWire PCIe card, FireWire cable, full-profile bracket, software CD and instruction manual.

What is the key installation requirement?

The low-profile bracket is fitted. Use the included full-height bracket when installing in a standard-profile chassis.

Is it suitable for an Australian setup?

Yes. DeviceDeal supplies the Australian-market version; always confirm the available ports, power and system compatibility for your installation.

What warranty applies?

PEX1394B3LP carries a StarTech.com limited lifetime manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides. View the DeviceDeal product page.

(PEX1394B3LP)

Features & highlights

Why choose PEX1394B3LP?

?Two FireWire 800 portsProvides two 9-pin IEEE 1394b connections at up to 800Mbps.

?One FireWire 400 portAdds one 6-pin IEEE 1394a connection at up to 400Mbps.

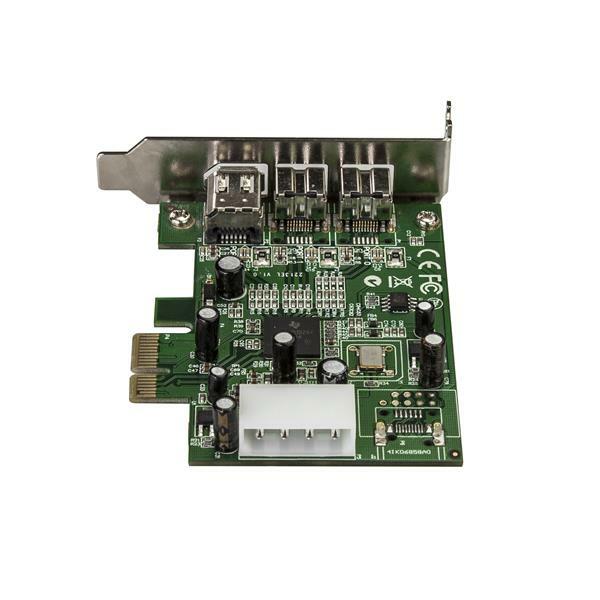

?Native PCIe controllerTexas Instruments XIO2213B chipset avoids a separate bridge-chip design.

?Low-profile cardDesigned for compact systems with a full-height bracket also included.

?Broad legacy-device supportUseful for compatible cameras, drives and professional audio equipment.

?Optional LP4 powerInternal LP4 connector supports qualifying powered FireWire applications.

Compatibility reminder: Confirm the operating system and peripheral have current FireWire support. The card requires a PCIe x1 or larger slot; LP4 power is available.

StarTech 2b 1a LP PCI Express FireWire Card - PEX1394B3LP product image

Technical specifications

PEX1394B3LP specifications

Exact-model specifications for compatibility checking.

Warranty Information
Warranty	Lifetime
Hardware
Bus Type	PCI Express
Card Type	Low Profile (SP bracket incl.)
Chipset ID	Texas Instruments - XIO2213B
Industry Standards	IEEE-1394/1394A/1394B; OHCI; PCI Express 1.1
Interface	FireWire 800 (1394b)
Ports	3
Performance
Maximum Data Transfer Rate	800 Mbps
Type and Rate	FireWire 800 IEEE-1394b - 800 Mbit/s
MTBF	197,978 hours
Connector(s)
Connector Type(s)	1 - PCI Express x1 Male
External Ports	1 - FireWire 400 (6 pin, IEEE 1394a) Female
Internal Ports	1 - LP4 (4 pin; Large Drive Power) Male
Software
OS Compatibility	Windows® 2000, XP, Vista, 7, 8, 8.1, 10; Windows Server® 2003, 2008 R2, 2012, 2016, 2019; Mac OS® 10.6 to 10.14; Linux 3.5.x to 4.4.x LTS Versions Only
Special Notes / Requirements
System and Cable Requirements	PCI Express enabled computer with an available PCI Express x1 slot or higher
Environmental
Humidity	0~90% RH
Operating Temperature	0°C to 70°C (32°F to 158°F)
Storage Temperature	-20°C to 90°C (-4°F to 194°F)
Physical Characteristics
Product Height	0.8 in [2 cm]
Product Length	3.3 in [85 mm]
Product Width	2.3 in [58 mm]
Weight of Product	1.5 oz [43 g]
Packaging Information
Package Height	1.3 in [32 mm]
Package Length	5.7 in [14.4 cm]
Package Quantity	1
Package Width	6.9 in [17.5 cm]
Shipping (Package) Weight	7.1 oz [200 g]
What's in the Box
Included in Package	1 - PCI Express FireWire Card
Additional Items	1 - FireWire cable; 1 - full-profile bracket; 1 - software CD; 1 - instruction manual
Connectors
FireWire 800 Ports	2 - FireWire 800 (9 pin, IEEE 1394b)

Sources: supplied product file, DeviceDeal product page and official StarTech.com specifications. Product appearance and specifications may change; confirm critical deployment requirements before ordering.

SKU	PEX1394B3LP
Barcode #	65030837897
Brand	STARTECH
Shipping Weight	0.2200kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.140m
Shipping Cubic	0.000700000m3
