StarTech.com · PATA2SATA3

StarTech Bi-Directional SATA IDE Adapter Converter - PATA2SATA3

Bidirectional SATA-to-IDE and IDE-to-SATA adapter for connecting one legacy or newer drive without adding a controller card.

Quick answer: Connects a SATA drive to a 40-pin IDE/PATA host, or an IDE drive to a SATA motherboard port, at SATA I speeds up to 1.5Gbps.

Best forDrive migration, legacy PC upgrades, temporary access to older IDE drives and mixed SATA/PATA service work.

Check before orderingSupports one 2.5in or 3.5in SATA or IDE drive. Confirm connector direction, drive power and space around the motherboard or drive.

Answers before you buy

Frequently asked questions

What does PATA2SATA3 do?

Connects a SATA drive to a 40-pin IDE/PATA host, or an IDE drive to a SATA motherboard port, at SATA I speeds up to 1.5Gbps.

Who is this product best for?

Drive migration, legacy PC upgrades, temporary access to older IDE drives and mixed SATA/PATA service work.

What should I check before ordering?

Supports one 2.5in or 3.5in SATA or IDE drive. Confirm connector direction, drive power and space around the motherboard or drive.

Does it require drivers or software?

No. It is OS independent and requires no software or drivers.

What is included in the package?

Converter, SP4-to-dual-LP4 power adapter, SATA cable and instruction manual.

What is the key installation requirement?

Power must be off during connection. Select the required SATA-to-IDE or IDE-to-SATA direction and connect the supplied power hardware.

Is it suitable for an Australian setup?

Yes. DeviceDeal supplies the Australian-market version; always confirm the available ports, power and system compatibility for your installation.

What warranty applies?

PATA2SATA3 carries a StarTech.com 2 years manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides. View the DeviceDeal product page.

(PATA2SATA3)

Features & highlights

Why choose PATA2SATA3?

?Bidirectional conversionUse SATA storage with an IDE host or an IDE drive with a SATA host.

?One SATA or IDE driveSupports compatible 2.5in and 3.5in hard drives and optical drives.

?SATA I performanceProvides a rated interface speed of up to 1.5Gbps.

?OS independentNo operating-system driver or software installation is required.

?Activity indicatorsPower and drive-activity LEDs assist installation and troubleshooting.

?Expansion slot preservedAdds compatibility without occupying a PCI or PCIe controller-card slot.

Compatibility reminder: Supports one 2.5in or 3.5in SATA or IDE drive. Confirm connector direction, drive power and space around the motherboard or drive.

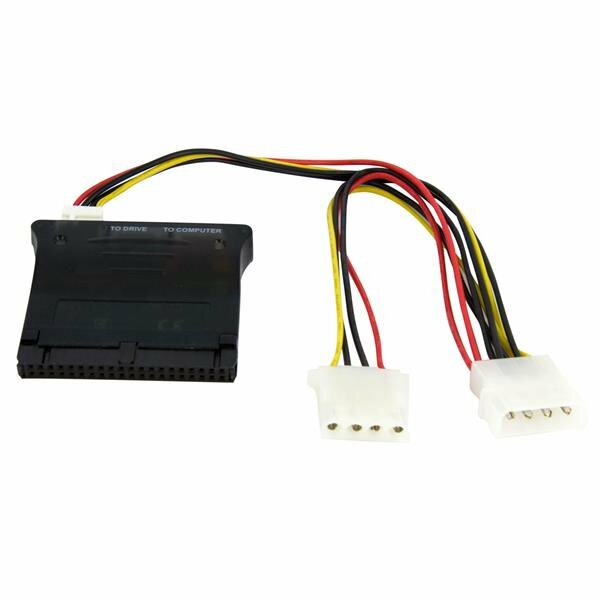

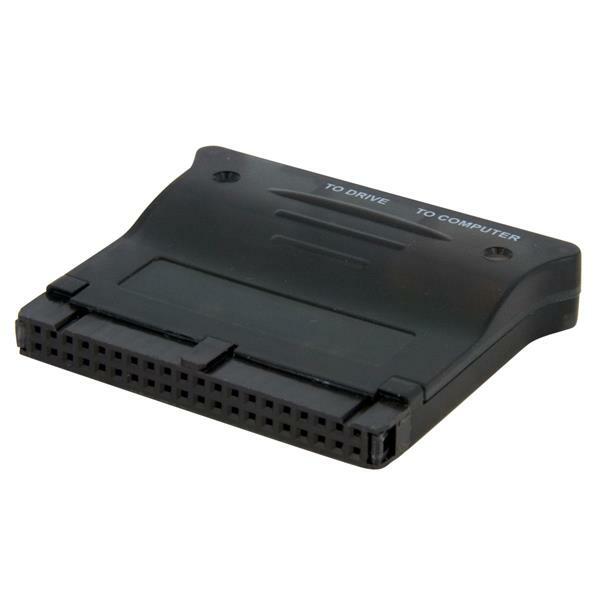

StarTech Bi-Directional SATA IDE Adapter Converter - PATA2SATA3 product image

Technical specifications

PATA2SATA3 specifications

Exact-model specifications for compatibility checking.

Warranty Information
Warranty	2 Years
Hardware
Chipset ID	SunplusIT - SPIF223A
Drive Size	2.5in & 3.5in
Number of Drives	1
Performance
Type and Rate	SATA I (1.5 Gbps)
Connector(s)
Connector Type(s)	1 - IDE (40 Pin, EIDE/PATA) Female
Software
OS Compatibility	OS independent; No software or drivers required
Indicators
LED Indicators	1 - HDD Activity - Green
Power	1 - Power LED (red)
Environmental
Humidity	90% RH
Operating Temperature	0°C to 70°C (32°F to 158°F)
Storage Temperature	-40°C to 150°C (-40°F to 302°F)
Physical Characteristics
Color	Black
Enclosure Type	Plastic
Product Height	0.4 in [1.1 cm]
Product Length	2.4 in [61 mm]
Product Width	2 in [50 mm]
Weight of Product	0.7 oz [20 g]
Packaging Information
Package Height	1.3 in [32 mm]
Package Length	5.6 in [14.2 cm]
Package Width	6.8 in [17.3 cm]
Shipping (Package) Weight	3.6 oz [102 g]

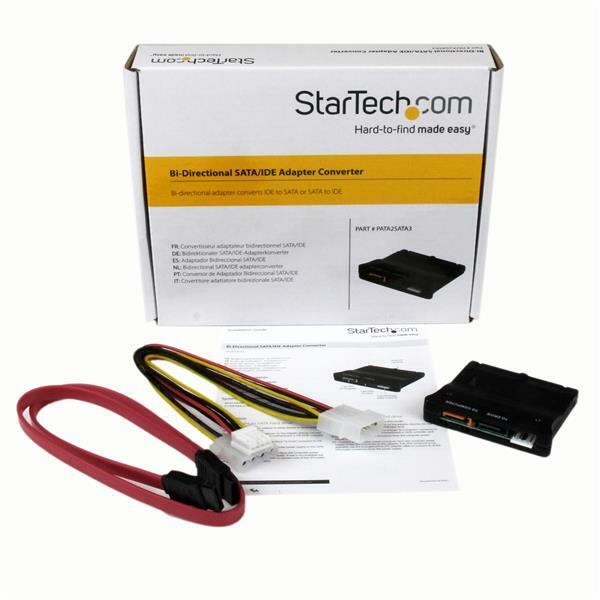

What's in the Box
Included in Package	1 - Bi-Directional SATA IDE Converter
Additional Items	1 - SP4-to-dual-LP4 power cable; 1 - SATA cable; 1 - instruction manual
Connectors
Power Connector	1 - SP4
SATA Data	2 - SATA (7 pin)

Sources: supplied product file, DeviceDeal product page and official StarTech.com specifications. Product appearance and specifications may change; confirm critical deployment requirements before ordering.

SKU	PATA2SATA3
Barcode #	65030836982
Brand	Startech
Shipping Weight	0.1000kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.170m
Shipping Cubic	0.000850000m3

Manufacturer warranty

2 Years

This Australian-version product is supplied by DeviceDeal and is covered by the official StarTech.com 2 years manufacturer warranty in Australia.

Keep your DeviceDeal tax invoice as proof of purchase.
Coverage is subject to StarTech.com warranty terms, eligibility and product assessment.
Warranty service does not replace rights that may apply under Australian Consumer Law.
