StarTech Connect a DVI display to a Mini DisplayPort-equipped PC or MAC¨ over a longer 10 foot distance Ð White MDP2DVIMM10W
Model # MDP2DVIMM10W
-
SKU: MDP2DVIMM10W
- Pick Up Available
- Australian Warranty
- Checkout Securely

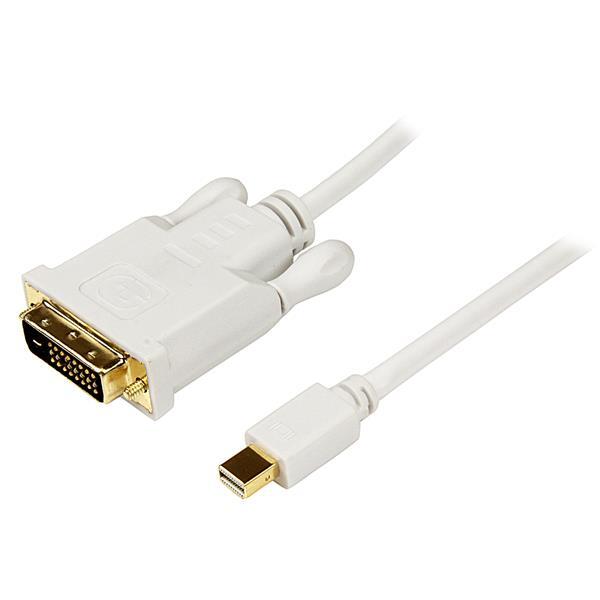

The MDP2DVIMM10W Mini DisplayPort to DVI Adapter Cable lets you directly connect your Mini DP video source (such as any of your MacBook® or Microsoft® Surface™ Pro devices with mDP) to a DVI monitor or projector, eliminating the expense of having to upgrade to a Mini DisplayPort-capable monitor.
The adapter cable is 10 feet (3 m) in length, and features male-to-male connectors, allowing you to connect your Mini DisplayPort source directly to a DVI display with no additional cabling required.
Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt I/O port, the adapter supports resolutions up to 1920x1200 (WUXGA).
MDP2DVIMM10W is a passive adapter that requires a dual-mode DisplayPort port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
(MDP2DVIMM10W)
| Warranty Information | ||
|---|---|---|
| Warranty | 3 Years | |
| Hardware | ||
| Active or Passive Adapter | Passive | |
| Adapter Style | Cable Adapters | |
| Audio | No | |
| AV Input | DisplayPort | |
| AV Output | DVI | |
| Chipset ID | NXP - 3361 | |
| Performance | ||
| Maximum Cable Length | 10 ft [3 m] | |
| Maximum Digital Resolutions | 1920x1200 / 1080p | |
| Wide Screen Supported | Yes | |
| Connector(s) | ||
| Connector A | 1 - Mini-DisplayPort (20 pin) Male | |

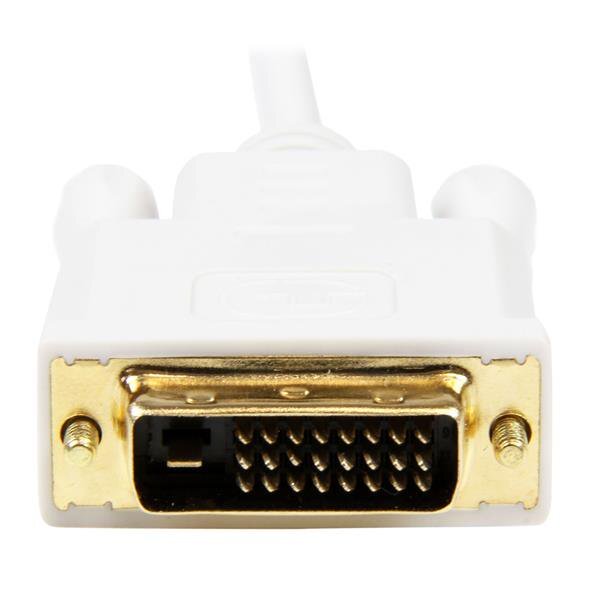

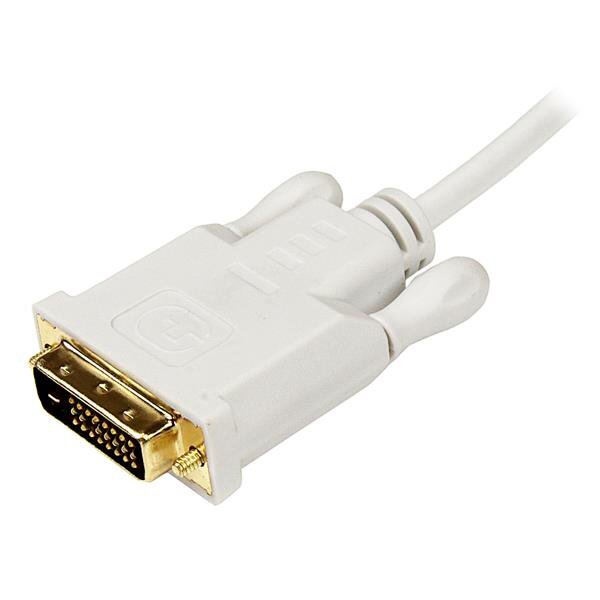

| Connector B | 1 - DVI-D (25 pin) Male | |
| Special Notes / Requirements | ||
| System and Cable Requirements | DP++ (DisplayPort++) port required from video card or video source for DVI and HDMI¨ signal pass-through | |
| Environmental | ||
| Humidity | 40%-85%RH | |
| Operating Temperature | 0¡C to 60¡C (32¡F to 140¡F) | |
| Storage Temperature | 0¡C to 70¡C (32¡F to 158¡F) | |
| Physical Characteristics | ||
| Cable Length | 10 ft [3 m] | |
| Color | White | |
| Product Height | 0.6 in [1.5 cm] | |
| Product Length | 10 ft [3 m] | |
| Product Width | 1.5 in [37 mm] | |
| Weight of Product | 5.4 oz [154 g] | |
| Packaging Information | ||
| Package Height | 0.7 in [18 mm] | |
| Package Length | 8.7 in [22 cm] | |
| Package Width | 7.9 in [20 cm] | |
| Shipping (Package) Weight | 0.4 lb [0.2 kg] | |
| What's in the Box | ||
| Included in Package | 1 - Mini DisplayPort¨ to DVI Adapter | |
| SKU | MDP2DVIMM10W |
| Barcode # | 65030851510 |
| Brand | Startech |
| Shipping Weight | 0.1600kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.180m |
| Shipping Cubic | 0.000900000m3 |
