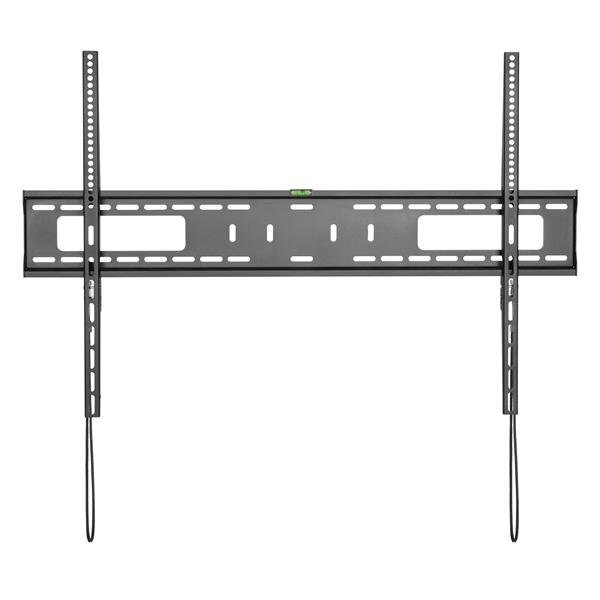

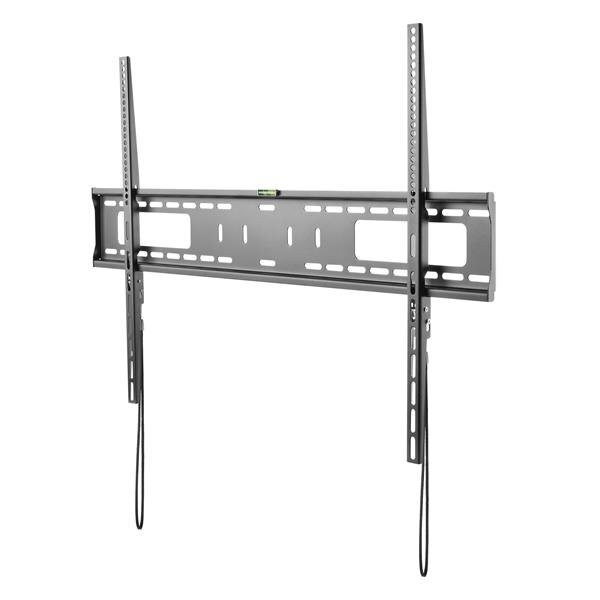

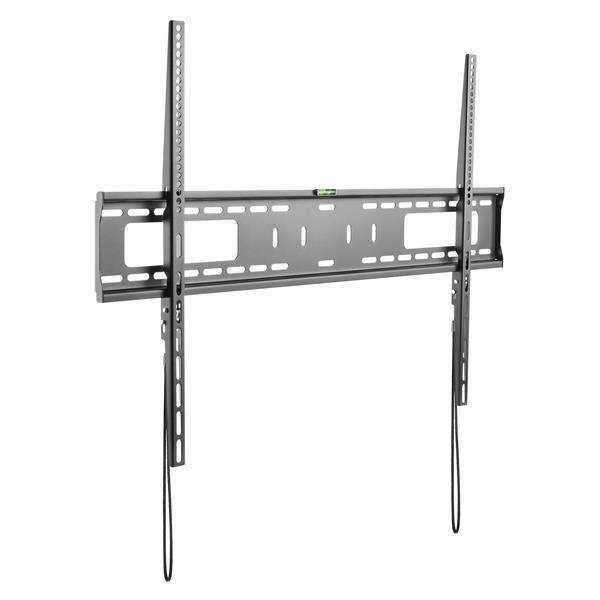

This heavy-duty TV wall mount is ideal for commercial and business purposes such as digital signage in lobbies, displays for boardrooms or anywhere a large professional display needs to be mounted.

Engineered for Heavy Duty Commercial Grade TVs

This TV wall mount is designed to be used with commercial or heavy-duty televisions and displays. It supports a weight of up to 165 lbs. or 75 kilograms and has been thoroughly tested to triple the rated weight capacity to ensure premium product quality and reliable performance.

The mount is ideal for 60Ó to 100Ó TVs including curved TVs; however, most larger or smaller TVs can be accommodated if they fall within the listed weight capacity.

Straightforward Installation & Removal

This TV mount is VESA¨ compatible and has two rows of seventeen mounting holes across the wall bracket to accommodate a variety of spacing between studs and helping you to center your display. The included bubble level helps to ensure an accurate mount to the wall.

Once the wall bracket is attached to the wall and the vertical brackets are attached to the TV, the TV simply attaches to the mount using the spring locks and can be as easily removed using the release pull straps.



Technical drawing of TV Mount

Technical drawing of TV Mount

Comprehensive Product Testing_&_Expert_Technical Support_

StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales.


Applications

  • Securely wall-mount your TV in boardrooms, classrooms and meeting spaces
  • Keep visitors informed in hotels, restaurants, commercial facilities and other venues
  • Wall-mount your TV in your home theater or living room

(FPWFXB1)

Warranty Information
Warranty 5 Years
Hardware
# of Displays Supported 1
Cable Management No
VESA Hole Pattern(s) 200x200 mm
300x200 mm
300x300 mm
400x200 mm
400x300 mm
600x400 mm
600x600 mm
800x600 mm
900x600 mm
Wallmountable Yes
Performance
Anti-theft No
Fits Curved TV Yes
Maximum Display Size 100"
Minimum Display Size 60"
Video Wall No
Weight Capacity (Per Display) 165.8 lb [75 kg]
Physical Characteristics
Color Black
Enclosure Type Steel and Plastic
Product Height 1.2 in [3 cm]
Product Length 37.6 in [95.4 cm]
Product Width 24.6 in [62.5 cm]
Weight of Product 7.7 lb [3.5 kg]
Packaging Information
Package Height 15 in [38 cm]
Package Length 38.6 in [98 cm]
Package Width 6.1 in [15.6 cm]
Shipping (Package) Weight 8.2 lb [3.7 kg]
What's in the Box
Included in Package 1 - Wall Bracket
2 - Vertical Brackets
1 - Bubble Level
4 - M5 x 14 mm Screws
4 - M6 x 14 mm Screws
4 - M6 x 30 mm Screws
4 - M8 x 30 mm Screws
4 - M8 x 50 mm Screws
4 - Rectangular Washers
8 - Small Spacers
8 - Large Spacers
6 - Wall Screws
6 - Concrete Anchors
6 - Round Washers
1 - User Manual
SKU FPWFXB1
Barcode # 65030880497
Brand Startech
Shipping Weight 3.5900kg
Shipping Width 0.160m
Shipping Height 0.040m
Shipping Length 0.985m
