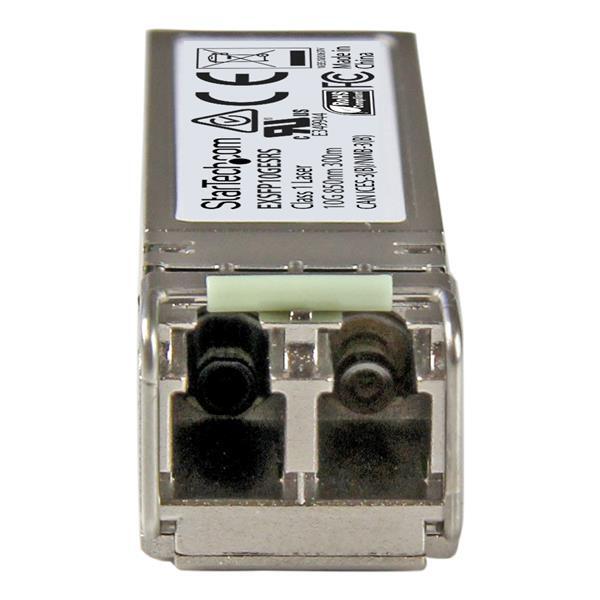

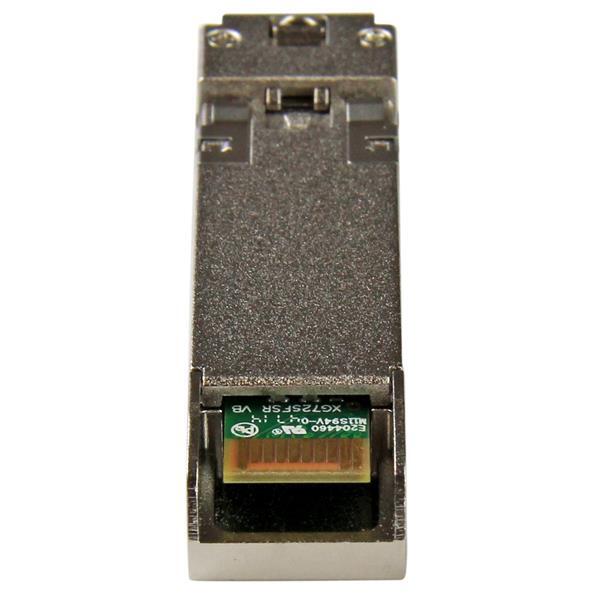

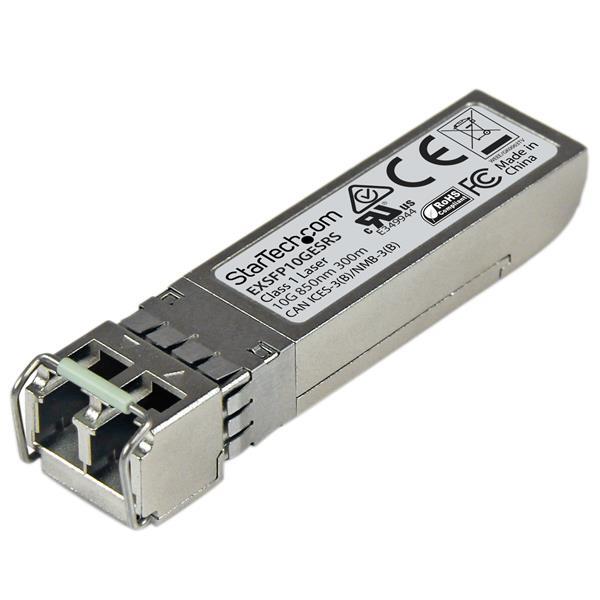

STARTECH.COM | EXSFP10GESRS

Juniper-Compatible 10GBASE-SR Multimode SFP+ Module

Add a Juniper EX-SFP-10GE-SR compatible 10GbE optical link over 850nm multimode fibre with duplex LC connectivity up to 300m.

Juniper coded and tested

Designed, programmed and tested for compatible Juniper switches and routers requiring EX-SFP-10GE-SR.

10Gbps up to 300m

Supports 10GBASE-SR links at up to 10Gbps over suitable multimode fibre for distances up to 300m.

DDM and hot swap

Digital Diagnostic Monitoring reports operating status, and the SFP+ module is hot-swappable in compatible equipment.

What to know

Match the host coding, SFP+ port, 10GBASE-SR standard, 850nm wavelength, duplex LC connector and multimode fibre type. This is a short-reach multimode module, not a single-mode transceiver.

Australian supply and warranty: Supplied by DeviceDeal as an Australian-market product with the official lifetime StarTech.com manufacturer warranty in Australia. Keep your DeviceDeal tax invoice; terms, eligibility and product assessment apply.

Frequently asked questions

What is the EXSFP10GESRS compatible with?

It is coded and tested for compatible Juniper switches and routers requiring EX-SFP-10GE-SR.

What network standard does the EXSFP10GESRS support?

It supports IEEE 802.3ae 10GBASE-SR at up to 10Gbps.

Which fibre type does the EXSFP10GESRS use?

It uses 850nm multimode fibre and is not a single-mode transceiver.

Which connector is on the EXSFP10GESRS?

It uses a duplex LC optical connector.

What is the maximum EXSFP10GESRS distance?

It supports links up to 300m with suitable multimode fibre and compatible equipment.

Does the EXSFP10GESRS support DDM?

Yes. Digital Diagnostic Monitoring can report transceiver status to compatible management tools.

Is the EXSFP10GESRS hot-swappable?

Yes. It is designed for hot-swappable installation in compatible SFP+ ports.

What warranty applies to the EXSFP10GESRS?

It is supplied by DeviceDeal as an Australian-market product and is backed by a lifetime StarTech.com manufacturer warranty in Australia.

Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.

(EXSFP10GESRS)

Features and highlights

Compatible replacement for Juniper EX-SFP-10GE-SR
10GBASE-SR 10 Gigabit Ethernet optical transceiver
850nm multimode fibre operation
Duplex LC optical connector
Maximum distance up to 300m
Digital Diagnostic Monitoring support
Hot-swappable SFP+ form factor
Works in compatible MSA or Juniper-compliant SFP+ ports
Power consumption below 1.2W and MTBF of 1,967,709 hours
Lifetime StarTech.com manufacturer warranty

Compatibility check: Confirm that the host accepts Juniper-coded EX-SFP-10GE-SR or compatible MSA modules. Use 850nm multimode fibre with duplex LC connectors; single-mode fibre is not the specified medium.

Specifications

Product type	Juniper-compatible 10GBASE-SR SFP+ transceiver
OEM equivalent	Juniper EX-SFP-10GE-SR
Compatible ports	MSA or Juniper-compliant SFP+ port
Maximum data rate	10Gbps
Network standard	IEEE 802.3ae 10GBASE-SR
Fibre type	Multimode
Wavelength	850nm
Optical connector	Duplex LC
Maximum transfer distance	300m
Operating mode	Full-duplex
DDM	Yes
Hot swap	Yes
Power consumption	Less than 1.2W
MTBF	1,967,709 hours
Dimensions	58.4 × 14 × 13mm in the current official specification
Product weight	19g in the current official specification; supplied catalogue lists 19.8g
Operating temperature	0°C to 70°C
Warranty	Lifetime StarTech.com manufacturer warranty

SKU	EXSFP10GESRS
Barcode #	65030869959
Brand	STARTECH
Shipping Weight	0.0500kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.110m
Shipping Cubic	0.000550000m3

Warranty and Australian supply

EXSFP10GESRS is supplied by DeviceDeal as an Australian-market product and carries the official lifetime StarTech.com manufacturer warranty in Australia.

Keep your DeviceDeal tax invoice as proof of purchase. Warranty service is subject to StarTech.com terms, eligibility requirements and product assessment.
