StarTech.com RKCONS17HD

1U 17.3-inch Full HD VGA KVM console

A single-port 1U rack console with a 17.3-inch 16:9 Active Matrix TFT LCD, QWERTY keyboard and touchpad, supporting VGA resolutions up to 1920 x 1080 at 60Hz.

17.3-inch 16:91920 x 108050,000-hour MTBF2-year warranty

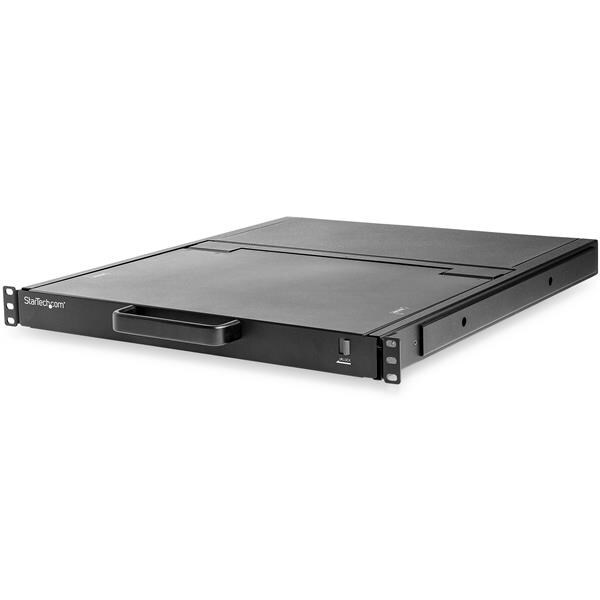

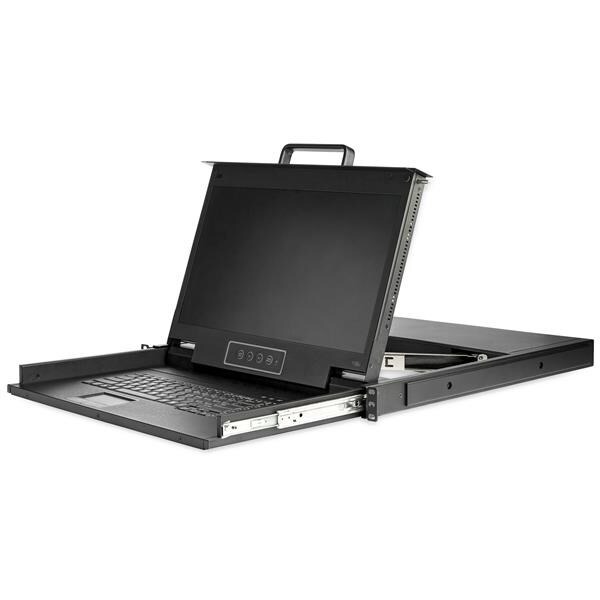

StarTech RKCONS17HD 1U 17.3-inch 1080p VGA KVM console

Key capabilities

Full HD rack console

The 17.3-inch widescreen display supports VGA resolutions up to 1920 x 1080 at 60Hz.

Single-port VGA/USB control

Connects directly to one compatible system or to a separate KVM switch for access to multiple servers.

50,000-hour MTBF

The current exact-SKU StarTech datasheet lists a 50,000-hour MTBF.

Rack installation kit

Includes a KVM cable, two mounting rails, M5 cage nuts and screws, plus regional power cords including ANZ.

What to know before buying

This console has one direct VGA/USB KVM port. Multiple-server control requires a separate compatible KVM switch. The current datasheet also notes that the minimum mounting depth is less than the console's own length, so check the full rack depth before installation.

Australian version and manufacturer warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is the StarTech RKCONS17HD?

It is a 1U single-port rackmount KVM console with a 17.3-inch 16:9 LCD, QWERTY keyboard and touchpad.

What maximum resolution does it support?

The current exact-SKU StarTech datasheet lists VGA resolutions up to 1920 x 1080 at 60Hz.

How much rack space does it use?

It installs in 1U of rack space.

What computer interfaces does it use?

It uses VGA for video and USB for the computer interface.

Can it control multiple servers?

Yes, when connected through a separate compatible VGA/USB KVM switch; the console itself has one KVM port.

What MTBF does the current datasheet list?

The current exact-SKU StarTech datasheet lists a 50,000-hour MTBF.

What installation hardware is included?

The package includes a KVM cable, two mounting rails, eight M5 cage nuts, eight M5 screws and regional power cords including ANZ.

What warranty applies to the StarTech RKCONS17HD in Australia?

The Australian version supplied by DeviceDeal is covered by the official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com terms and product assessment.

(RKCONS17HD)

Features and highlights

Full HD rack console

The 17.3-inch widescreen display supports VGA resolutions up to 1920 x 1080 at 60Hz.

Single-port VGA/USB control

Connects directly to one compatible system or to a separate KVM switch for access to multiple servers.

50,000-hour MTBF

The current exact-SKU StarTech datasheet lists a 50,000-hour MTBF.

Rack installation kit

Includes a KVM cable, two mounting rails, M5 cage nuts and screws, plus regional power cords including ANZ.

17.3-inch 16:9
1920 x 1080
50,000-hour MTBF
2-year warranty

Warranty confidence: Official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com warranty terms and assessment.

Specifications

Verified specifications for StarTech RKCONS17HD.

Hardware

Warranty	2 Years
U height	1U
Display size	17.3 in
Panel type	Active Matrix TFT LCD
Aspect ratio	16:9
Audio	No
KVM ports	1
PC interface	USB
PC video type	VGA
Monitors supported	1
Rack-mountable	Yes
Cables included	Yes

Display and Performance

Maximum analog resolution	1920 x 1080
Supported resolution	Up to 1920 x 1080 @ 60Hz
Contrast ratio	800:1
Brightness	300 cd/m²
Colour depth	6-bit, 262144 colours
Pixel pitch	0.1989 x 0.1989 mm
Viewing angle	170° horizontal / 170° vertical
Maximum users	1
MTBF	50,000 hours
IP control	No
On-screen display	Yes

Connectors and Power

Host connector	1 × VGA
Power connector	1 × IEC C14
Input voltage	100 - 240 AC
Input current	1.5A
Power consumption	13W
Power source	International power cords

Physical and Environmental

Colour	Black
Material	Steel
Cable length	1.8 m
Product length	22.2 in [565 mm]
Product width	19.0 in [483 mm]
Product height	1.7 in [43 mm]
Weight of product	395.6 oz [11206 g]
Minimum mounting depth	20.1 in [510 mm]
Maximum mounting depth	33.5 in [850 mm]
Operating temperature	0°C to 40°C
Storage temperature	-20°C to 60°C
Humidity	10 - 80% RH

Packaging and In the Box

Package width	24.3 in [616 mm]
Package length / depth	30.7 in [780 mm]
Package height	7.5 in [191 mm]
Shipping weight	575.7 oz [16308 g]
KVM console	1
Mounting rails	2
KVM cable	1
Regional power cords	5 - NA/JP, UK, EU, ANZ
M5 cage nuts	8
M5 screws	8
Quick-start guide	1

SKU	RKCONS17HD
Barcode #	65030872478
Brand	Startech
Shipping Weight	17.0000kg
Shipping Width	0.018m
Shipping Height	0.077m
Shipping Length	0.062m
