StarTech.com · ICUSB232PROC

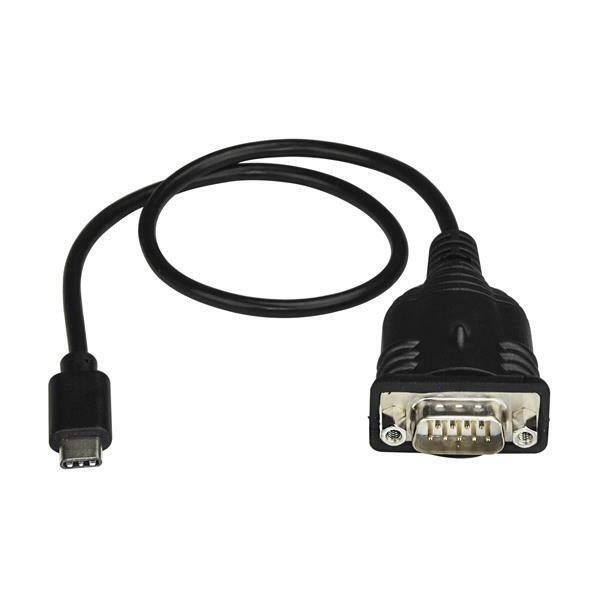

StarTech ICUSB232PROC USB-C to DB9 RS232 Adapter with COM Retention

USB-C to DB9 RS232 Adapter with COM Retention for connecting compatible legacy and industrial RS232 equipment to a modern USB-equipped computer.

Quick answer: ICUSB232PROC converts USB-C to one DB9 RS232 port and retains the assigned COM-port value for easier reconnection.

Best forUSB-C laptops and computers connecting POS, modem, console and industrial RS232 equipment.

Check before orderingConfirm USB-C host support, operating-system driver compatibility and the DB9 RS232 pinout required by the device.

Answers before you buy

What is StarTech ICUSB232PROC?

It is a USB-C COM-retention adapter that converts USB-C to one DB9 RS232 port and retains the assigned COM-port value for easier reconnection.

How many RS232 ports are provided?

It provides 1 RS232 serial port.

Which connectors are fitted?

The host side uses USB Type-C male; the serial side provides 1 × DB9 male RS232.

What is the maximum baud rate?

The specified maximum baud rate is 921.6Kbps.

Which chipset is used?

It uses the Prolific PL2303RA chipset.

Does it need an external power adapter?

No. It is powered through USB.

Does this USB-C adapter retain the COM-port assignment?

Yes. It is designed to restore the assigned COM-port number after reconnection.

What warranty applies?

ICUSB232PROC carries a StarTech.com 2-year manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides.

(ICUSB232PROC)

Features & highlights

Why choose ICUSB232PROC?

?Adds RS232 connectivityConnect one compatible serial device through a USB-equipped computer.

?Purpose-matched connectorsUSB Type-C male host connection with 1 × DB9 male RS232.

?Specified serial performanceSupports RS232 communication at baud rates up to 921.6Kbps.

?Defined hardware platformProlific PL2303RA chipset supports the adapters stated serial feature set.

?Power and constructionUSB powered; plastic enclosure construction.

?Installation advantageCOM retention helps the operating system restore the assigned serial port number after reconnection.

Compatibility reminder: Confirm USB-C host support, operating-system driver compatibility and the DB9 RS232 pinout required by the device.

Technical specifications

Exact-model specifications for compatibility checking. Measurements may be rounded.

Warranty Information
Warranty	2 Years
Hardware
Product Type	USB-C COM-retention adapter
Ports	1
Bus / Host Interface	USB Type-C male
Serial Protocol	RS-232
Chipset	Prolific PL2303RA
Enclosure	Plastic
Performance
Maximum Baud Rate	921.6Kbps
Serial Ports	1 × DB9 male RS232
Power
Power Source	USB powered
Physical Characteristics
Length	0.4m (1.4ft)
Dimensions / Weight	Cable 0.4m; 428 × 35 × 20mm; 36g
Colour	Black unless otherwise specified
Special Feature
Details	COM retention helps the operating system restore the assigned serial port number after reconnection.
What's in the Box
Included	USB-C to DB9 RS232 Adapter with COM Retention and model-specific supplied accessories

Sources: https://www.devicedeal.com.au/startech-ucb-c-to-serial-adapter-with-com-retentio and https://www.startech.com/

Manufacturer warranty

2 Years

This Australian-version product is supplied by DeviceDeal and is covered by the 2-year manufacturer warranty term listed for this exact product.

Keep your DeviceDeal tax invoice as proof of purchase.
Coverage is subject to StarTech.com warranty terms, eligibility and product assessment.
Warranty service does not replace rights that may apply under Australian Consumer Law.
