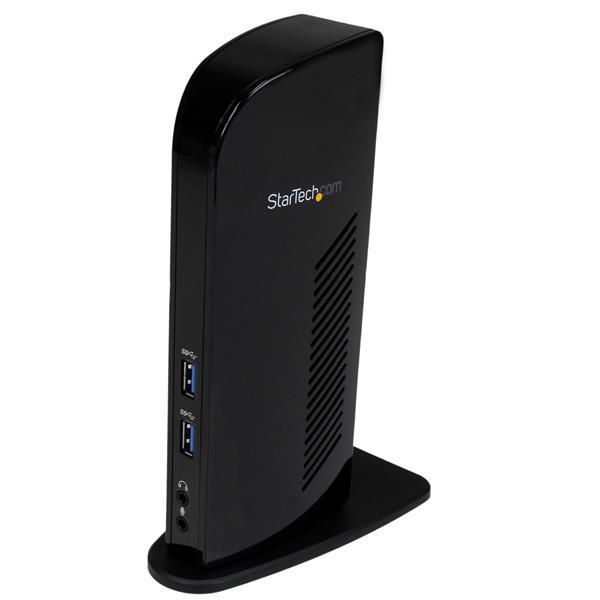

StarTech Universal USB 3.0 Laptop Docking Station - DVI USB3SDOCKD
Model # USB3SDOCKD
-
SKU: USB3SDOCKD
- Pick Up Available
- Australian Warranty
- Checkout Securely
Add DVI video, as well as audio and Gigabit Ethernet connection ports to a laptop computer through a single USB 3.0 port
The USB3SDOCKD Universal USB 3.0 Laptop Docking Station/Port Replicator with DVI, Audio and Ethernet adds an external DVI output, headphone/mic, as well as Gigabit Ethernet and additional USB 3.0 and USB 2.0 ports, all from a single device and over a single SuperSpeed USB 3.0 connection.
This highly versatile port replicator/universal docking station lets you expand or mirror your computer's main desktop at video resolutions up to 1920x1200, with DVI monitor output, as well as an included DVI to VGA adapter.
The docking station also combines USB 2.0 and USB 3.0 hubs, headphone and microphone audio connectors and a Gigabit Ethernet RJ45 port into an all-in-one laptop/notebook docking station that makes for the perfect accessory for users who need to connect and manage many devices on their laptops at home or at the office.
The USB3SDOCKD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Applications
- Add video, USB, Ethernet and Audio from a single USB connection, without having to open the computer system
- Add an external video output to a laptop or small form factor computer where the video card cannot be replaced
- Connect many different peripherals at home/office to a laptop and be able to disconnect them all from a single USB cable when leaving
Product Numbers
Ingram Micro Australia
2086147
UPC Code
065030847681
(USB3SDOCKD)
| Warranty Information | ||
|---|---|---|
| Warranty | 3 Years | |
| Hardware | ||
| 4K Support | No | |
| Bus Type | USB 3.0 | |
| Chipset ID | DisplayLink - DL-3700 VIA/VLI - VL810 Terminus - FE1.1 Realtek - RTL8211E | |
| Displays Supported | 1 | |
| Fast-Charge Port(s) | No | |
| Industry Standards | IEEE 802.3, 802.3u, and 802.3ab | |
| Performance | ||
| Auto MDIX | Yes | |
| Compatible Networks | 10/100/1000 Mbps | |
| Full Duplex Support | Yes | |
| Maximum Digital Resolutions | 1920 x 1200 | |
| Type and Rate | USB 2.0 - 480 Mbit/s | |
| USB 3.0 - 4.8 Gbit/s | ||
| Connector(s) | ||

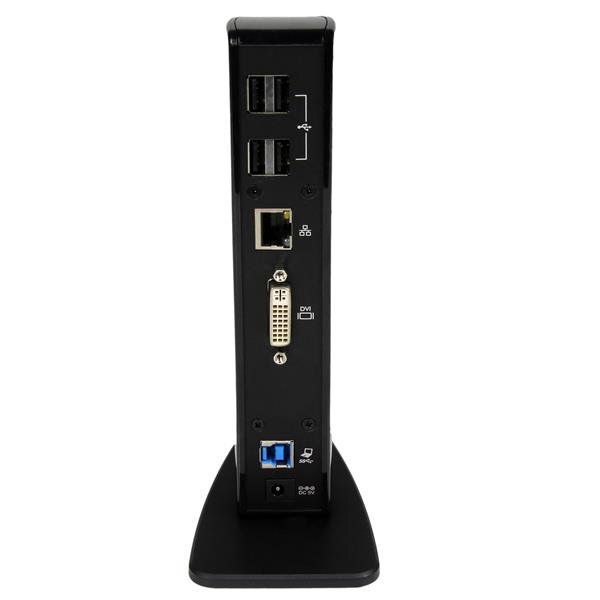

| Connector Type(s) | 1 - DVI-I (29 pin) Female | |
| 1 - RJ-45 Female | ||
| 1 - USB Type-B (9 pin) USB 3.0 Female | ||
| 2 - 3.5 mm Mini-Jack (3 Position) Female | ||
| 2 - USB Type-A (9 pin) USB 3.0 Female | ||
| 4 - USB Type-A (4 pin) USB 2.0 Female | ||
| Software | ||
| OS Compatibility | Windows¨ XP SP3 (32-bit), Vista, 7, 8, 8.1, 10 macOS 10.6 to 10.12, 10.14 | |
| Special Notes / Requirements | ||
| Note | Extended displays are currently only supported with DisplayLink-based products on macOS 10.11 to 10.13.3. This may change in future versions. | |
| System and Cable Requirements | CPU: i3 Dual core 2.8GHz or better RAM: 2GB or higher Available USB 3.0 port | |
| Indicators | ||
| LED Indicators | 1 - Power (Blue) | |
| 1 - USB Hub Link (Blue) | ||
| Power | ||
| Input Voltage | 100 - 240 AC | |
| Output Current | 4A | |
| Output Voltage | 5 DC | |
| Power Consumption (In Watts) | 20 | |
| Power Source | AC Adapter Included | |
| Environmental | ||
| Operating Temperature | 10¡C to 40¡C (50¡F to 104¡F) | |
| Storage Temperature | -10¡C to 80¡C (14¡F to 176¡F) | |
| Physical Characteristics | ||
| Color | Black | |
| Enclosure Type | Plastic | |
| Product Height | 5 in [12.6 cm] | |
| Product Length | 7.7 in [19.6 cm] | |
| Product Width | 3 in [77 mm] | |
| Weight of Product | 12.8 oz [364 g] | |
| Packaging Information | ||
| Package Height | 4.3 in [11 cm] | |
| Package Length | 10.8 in [27.5 cm] | |
| Package Quantity | 1 | |
| Package Width | 7.5 in [19 cm] | |
| Shipping (Package) Weight | 32.5 oz [920 g] | |
| What's in the Box | ||
| Included in Package | 1 - USB 3.0 Docking Station | |
| 1 - USB 3.0 Cable | ||
| 1 - DVI to VGA Adapter | ||
| 1 - Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand | ||
| 1 - Driver CD | ||
| 1 - Instruction Manual | ||
| SKU | USB3SDOCKD |
| Barcode # | 65030847681 |
| Brand | Startech |
| Shipping Weight | 1.0000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.270m |
| Shipping Cubic | 0.001350000m3 |
