The SATDOCK5U3ER Hard Drive Duplicator & Docking Station lets you clone a 2.5in or 3.5in SATA hard drive (HDD) or solid-state drive (SSD) to five other SATA drives simultaneously, as a standalone device. The duplicator also lets you erase up to 5 drives, without a host connection.

You can also use the duplicator as a 5-bay HDD / SSD docking station, by connecting it to a host computer system through either USB 3.0 or eSATA. With support for high-capacity drives (tested with up to 6TB), this is a simple and cost-effective way to boost your data storage/backup capabilities.

Optimized Productivity

By copying data from one drive to five drives simultaneously, the hard drive cloner helps boost your productivity by avoiding the hassle of repeatedly swapping drives in and out during high volume duplication projects.

Plus, the dock supports erasing up to five drives simultaneously with multiple operating modes, including Quick Erase as well as Multipass Overwriting (DoD) -- the ideal solution for permanently erasing confidential information and helping to protect your business and your clients from identity theft.

Hassle-free Performance

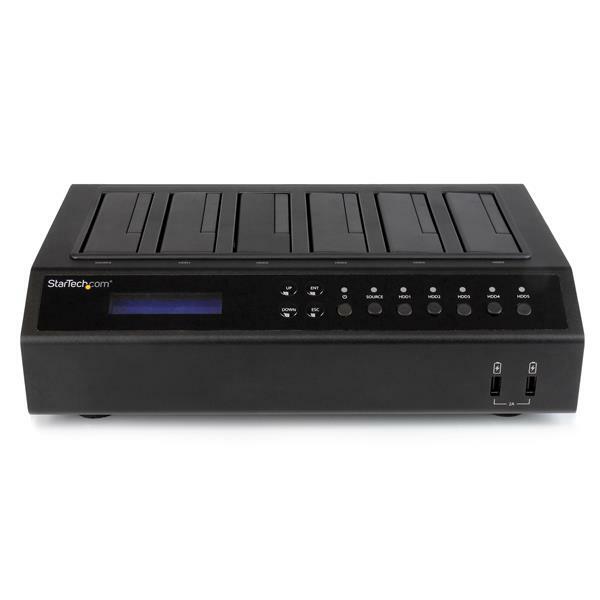

With a built-in LCD display, the SATDOCK5U3ER makes it easy to monitor duplication progress and review copy/erase results and drive diagnostics during standalone operation.

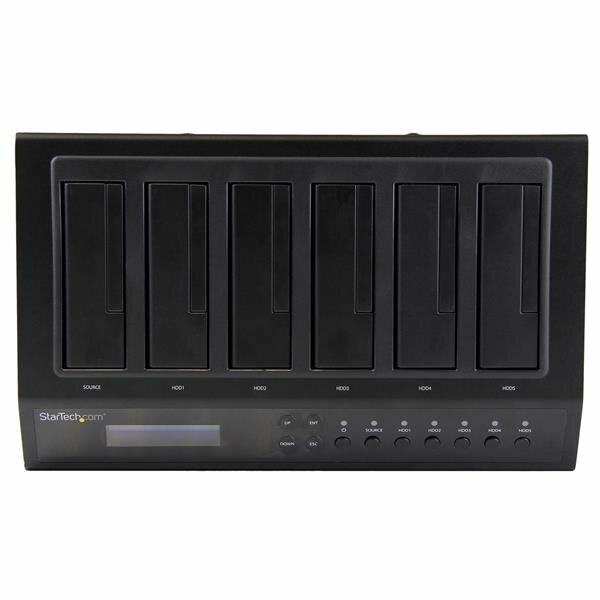

The housing has also been specifically designed with ease-of-use in mind. The drive slots feature a dual-profile design to support hassle-free swapping between 2.5in and 3.5in hard drives and solid-state drives without having to use additional brackets or adapters.

Maximum Versatility

With the option to connect the docking station through either eSATA or USB 3.0, the SATDOCK5U3ER provides a versatile solution for expanding the storage capability of almost any laptop or desktop computer. For fast performance, you can connect the docking station to your computer through eSATA for efficient data transfer speeds up to 3 Gbps. For broader system compatibility, you can connect the dock through USB 3.0, which is also backward compatible with USB 2.0/1.1 host connections.

The SATDOCK5U3ER also provides two charge-only, fast-charge USB ports, that you can use to keep your iPhone®; iPad®; and Android™ tablets or smartphones charged.

You can also duplicate, erase or access other drive types in duplication and quick-erase applications using a drive adapter. The following StarTech.com adapters have been tested to ensure compatibility with this drive duplicator:

2.5/3.5in IDE drives - SAT2IDEADP
mSATA drives - SAT2MSAT25
M.2 (NGFF) drives - SAT32M225

Built for dependable, long-term performance the SATDOCK5U3ER is durably constructed and backed by a StarTech.com 2-year warranty and free lifetime technical support.

(SATDOCK5U3ER)

Warranty Information
Warranty 2 Years
Hardware
Chipset ID SunplusIT - SPIF260A
ASMedia - ASM1153
JMicron - JMB393
Compatible Drive Types SATA
Drive Size 2.5in & 3.5in
Fans 2 - 60 mm
Number of Drives 5
Performance
Duplication Modes Sector by Sector (Whole Drive)
Duplication Speed 7GBpm
Erase Modes Quick Erase
1-Pass Overwrite (NIST SP 800-88 Rev 1 - Clear)
3-Pass Overwrite
7-Pass Overwrite
General Specifications 7 GB per minute duplication speed
Max Drive Capacity Currently tested with up to 6TB 7200 RPM
Maximum Data Transfer Rate 5 Gbps
Port Multiplier Yes
Type and Rate USB 3.0 - 5 Gbit/s
SATA II (3 Gbps)
Connector(s)
Drive Connectors 6 - SATA Data & Power Combo (7+15 pin) Receptacle
Host Connectors 1 - eSATA (7 pin, Data) Receptacle
1 - USB Type-B (9 pin) USB 3.0 Female
Software
OS Compatibility OS independent; No software or drivers required
Indicators
LED Indicators 1 - Docking station power
1 - Source Drive Power and Activity
5 - Target Drive Power / Activity
Power
Center Tip Polarity Positive
Input Current 2 A
Input Voltage 100 - 240 AC
Output Current 5 A
Output Voltage 19V DC
Plug Type M
Power Consumption (In Watts) 95
Power Source AC Adapter Included
Environmental
Humidity 20%~80% RH
Operating Temperature 5°C to 35°C (41°F to 95°F)
Storage Temperature -20°C to 50°C (-4°F to 122°F)
Physical Characteristics
Product Height 3 in [7.5 cm]
Product Length 12.4 in [31.5 cm]
Product Width 6 in [15.2 cm]
Weight of Product 3.3 lb [1.5 kg]
Packaging Information
Package Height 7.8 in [19.7 cm]
Package Length 15.2 in [38.7 cm]
Package Width 10.9 in [27.6 cm]
Shipping (Package) Weight 5.5 lb [2.5 kg]
What's in the Box
Included in Package 1 - USB 3.0\eSATA 1:5 SATA HDD duplicator dock
1 - USB 3.0 cable
1 - eSATA cable
4 - rubber feet (installed)
1 - universal power adapter (NA, UK, EU, ANZ)
1 - instruction manual
SKU SATDOCK5U3ER
Barcode # 65030859172
Brand Startech
Shipping Weight 3.4000kg
Shipping Width 0.100m
Shipping Height 0.050m
Shipping Length 0.390m
Shipping Cubic 0.001950000m3
Manufacturer Warranty: 2 Years Limited Warranty
