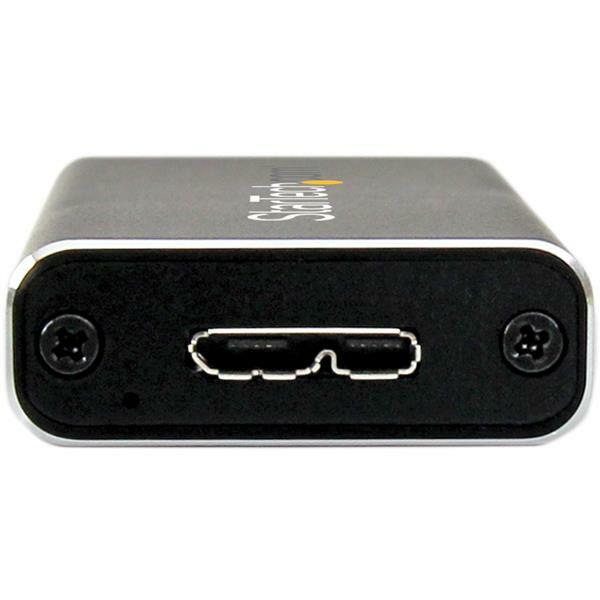

StarTech USB 3.1 (10Gbps) mSATA Drive Enclosure, Aluminum - SMS1BMU313
Model # SMS1BMU313
-
SKU: SMS1BMU313
- Pick Up Available
- Australian Warranty
- Checkout Securely
Add high-speed data storage to your laptop or desktop computer, with this portable mSATA and mSATA Mini drive enclosure. It gives you fast data transfer speeds with USB 3.1 (10Gbps) in a solid aluminum enclosure.
Durable and portable
With its compact design and metal housing, the mSATA drive enclosure gives you a highly portable, high-speed storage solution. Slim and stylish, the enclosure makes the ideal accessory for laptop or desktop computers.

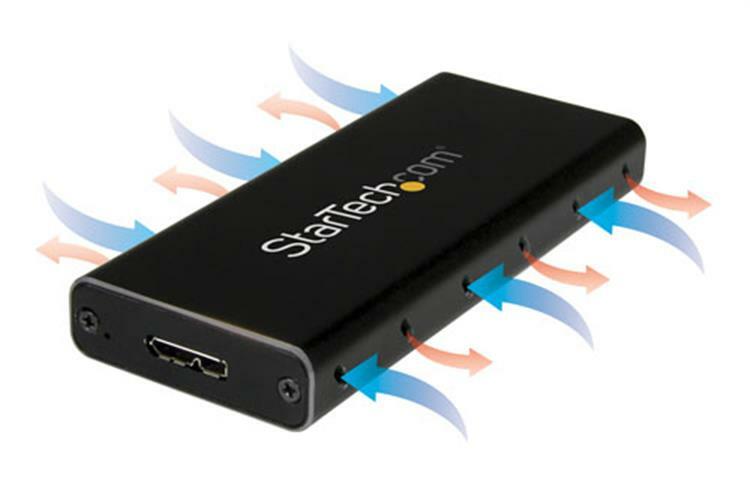

The mSATA enclosure provides dependable drive protection with its durable, solid aluminum housing. It also features ventilation holes to help protect your drive from overheating by allowing heat to dissipate and help maintain an optimum operating temperature.
Ultra-fast data transfer speeds
With support for USB 3.1 (also known as USB 3.1 Gen 2) and SATA III (6Gbps) host connections, the drive enclosure lets you maximize the performance of your mSATA solid-state drives to achieve greater data transfer speeds. The mSATA drive enclosure also supports UASP for enhanced performance.
Compatible with all mSATA drives
This portable drive enclosure is compatible with all standard mSATA drives, including the mSATA Mini (Half-Size) form factor.
The SMS1BMU313 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
(SMS1BMU313)
| Warranty Information | ||
|---|---|---|
| Warranty | 2 Years | |
| Hardware | ||
| Chipset ID | ASMedia - ASM1351 | |
| Compatible Drive Types | mSATA (Mini SATA) | |
| Drive Installation | Fixed | |
| Drive Size | mSATA (Full Size & Half Size) | |
| Fan(s) | No | |
| Interface | USB 3.1 Gen 2 | |
| Number of Drives | 1 | |
| Supported Drive Height(s) | Full Size (50.8mm) | |
| Half Size (26.8mm) | ||
| Performance | ||
| 4Kn Support | Yes | |
| Max Drive Capacity | Currently tested with up to 1TB mSATA drives | |
| Port Multiplier | No | |
| RAID | No | |
| TRIM Support | Yes | |
| Type and Rate | USB 3.1 Gen 2 - 10 Gbit/s | |
| SATA III (6 Gbps) | ||
| UASP Support | Yes | |
| Connector(s) | ||
| Drive Connectors | 1 - mSATA (52 pin, Mini SATA) Slot | |
| Host Connectors | 1 - USB 3.1 USB Type Micro-B (10 pin, Gen 2, 10 Gbps) Female | |
| Software | ||
| OS Compatibility | OS independent; No software or drivers required | |
| Indicators | ||
| LED Indicators | 1 - Power and Activity | |
| Power | ||
| Power Source | USB-Powered | |
| Physical Characteristics | ||
| Color | Black | |
| Enclosure Type | Aluminum | |
| Max Drive Height | 2 in [50.8 mm] | |
| Product Height | 0.5 in [1.2 cm] | |
| Product Length | 3.9 in [98 mm] | |
| Product Width | 1.6 in [40 mm] | |
| Weight of Product | 2 oz [58 g] | |
| Packaging Information | ||
| Package Height | 1.3 in [34 mm] | |
| Package Length | 6.4 in [16.2 cm] | |
| Package Width | 5 in [12.8 cm] | |
| Shipping (Package) Weight | 4.8 oz [136 g] | |
| What's in the Box | ||
| Included in Package | 1 - USB 3.1 mSATA SSD enclosure - aluminum | |
| 1 - USB A to Micro B cable - 18.25 inches | ||
| 4 - assembly screws | ||
| 2 - sets of mSATA mount hardware (preinstalled) | ||
| 1 - screwdriver | ||
| 1 - quick start guide | ||
| SKU | SMS1BMU313 |
| Barcode # | 65030863452 |
| Brand | Startech |
| Shipping Weight | 0.1400kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.160m |
| Shipping Cubic | 0.000800000m3 |
