DS1621XS

High-end scalable NAS in desktop form factor

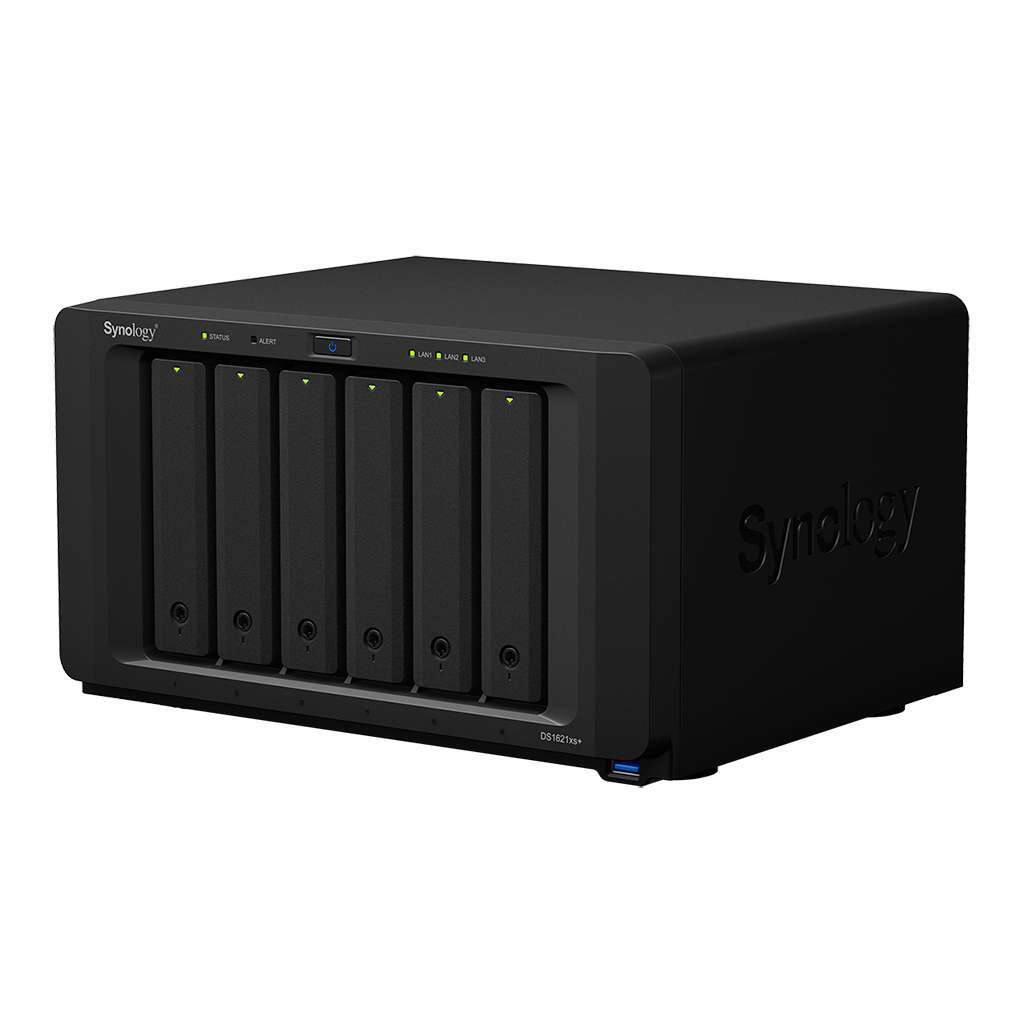

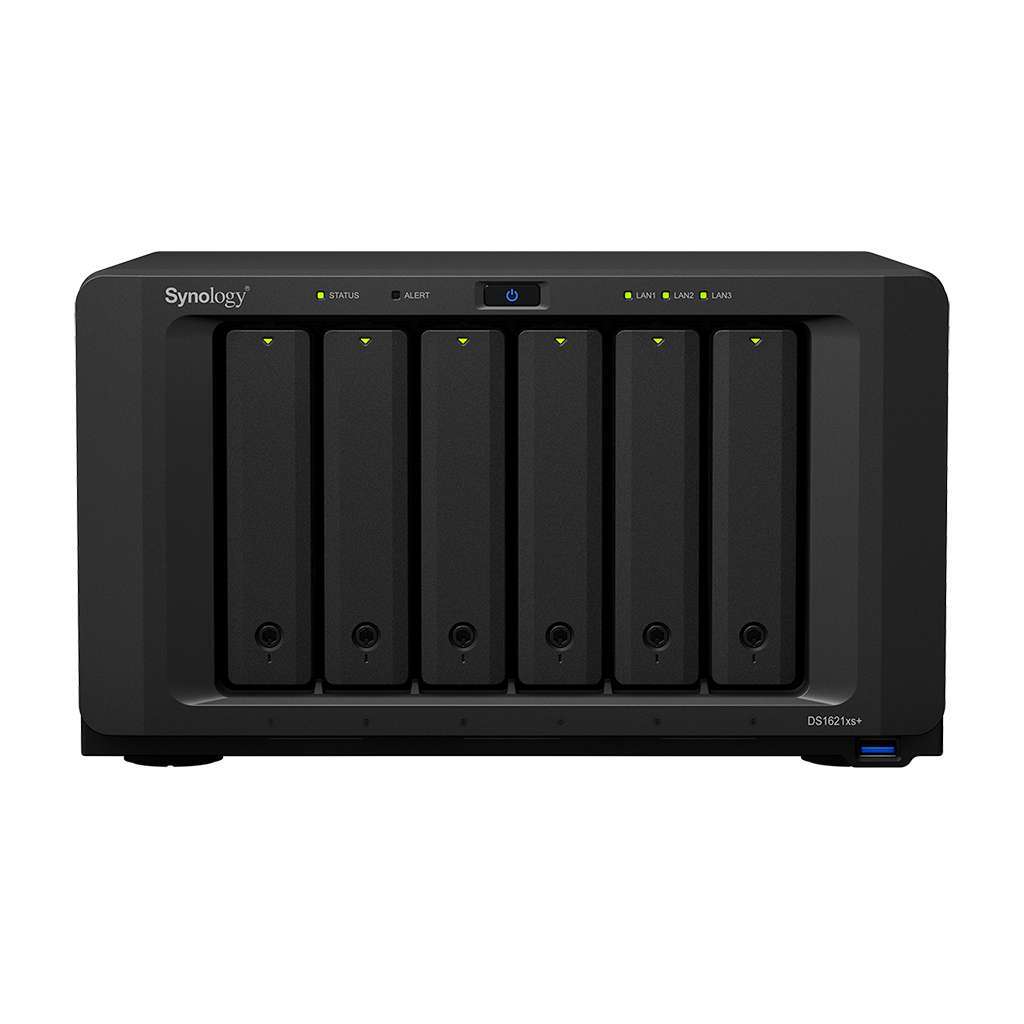

DS1621xs+ is a high-end NAS with server-class performance in a 6-bay desktop form factor. The built-in M.2 SSD cache slots, 10GbE port, expandable memory, and scalable storage design allow you to boost the performance of your NAS, making it ideal for small and medium-sized businesses that need an efficient and space-saving storage solution.

(DS1621XSPLUS)

CPU

 CPU Model Intel Xeon D-1527
  CPU Architecture 64-bit
  CPU Frequency 4-core 2.2 (base) / 2.7 (turbo) GHz
  Hardware Encryption Engine (AES-NI)

Memory

 System Memory 8 GB DDR4 ECC SODIMM
  Memory Module Pre-installed 8 GB (8 GB x 1)
  Total Memory Slots 2
  Maximum Memory Capacity 32 GB (16 GB x 2)
  Notes
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
  • For more information on the recommended memory configurations, visit here.
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

Storage

 Drive Bays 6
  Maximum Drive Bays with Expansion Unit 16 (DX517 x 2)
  M.2 Drive Slots 2 (NVMe)
  Compatible Drive Type* (See all supported drives)
  • 3.5" SATA HDD
  • 2.5" SATA HDD
  • 2.5" SATA SSD
  • M.2 2280 NVMe SSD
  Maximum Single Volume Size*
  • 200 TB (32 GB RAM required, for RAID 5 or RAID 6 groups only)
  • 108 TB
  Hot Swappable Drive
  Notes
  • "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
  • Each internal volume (may consist of multiple drives) is expandble up to 108TB (with memory less than 32GB) or 200TB (with memory equal to or greater than 32GB).

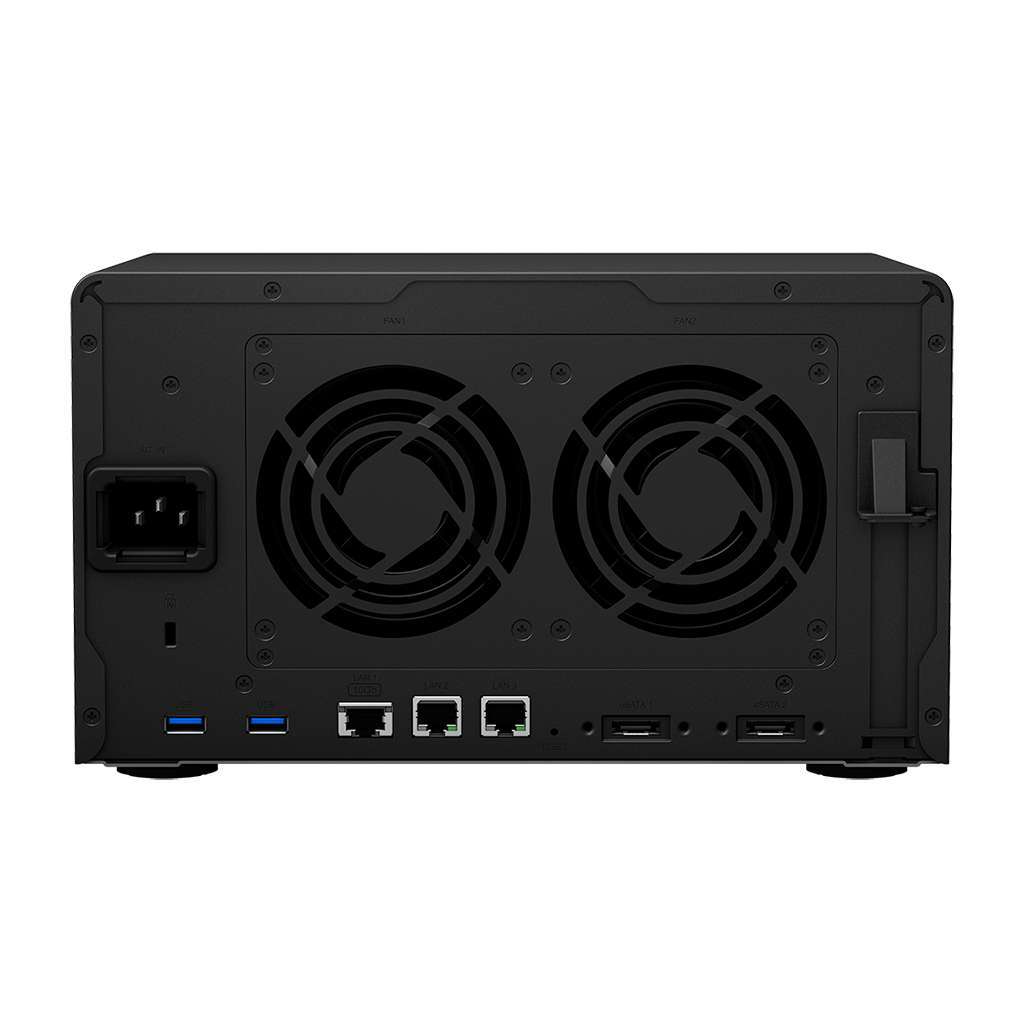

External Ports

 RJ-45 1GbE LAN Port 2 (with Link Aggregation / Failover support)
  RJ-45 10GbE LAN Port 1
  USB 3.0 Port 3
  eSATA Port 2

PCIe

 PCIe Expansion 1 x Gen3 x8 slot (x8 link)

File System

 Internal Drives
  • Btrfs
  • EXT4
  External Drives
  • Btrfs
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
  • exFAT*
  Notes exFAT Access is purchased separately in Package Center.

Appearance

 Size (Height x Width x Depth) 166 mm x 282 mm x 243 mm
  Weight 5.3 kg

Others

 System Fan 92 mm x 92 mm x 2 pcs
  Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
  Easy Replacement System Fan
  Brightness Adjustable Front LED Indicators
  Power Recovery
  Noise Level* 25.2 dB(A)
  Scheduled Power On / Off
  Wake on LAN / WAN
  Power Supply Unit / Adapter 250 W
  AC Input Power Voltage 100 V to 240 V AC
  Power Frequency 50/60 Hz, Single Phase
  Power Consumption* 62.85 W (Access)
34.26 W (HDD Hibernation)
  British Thermal Unit 214.45 BTU/hr (Access)
116.89 BTU/hr (HDD Hibernation)
  Notes
  • Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
  • Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Temperature

 Operating Temperature 0°C to 40°C (32°F to 104°F)
  Storage Temperature -20°C to 60°C (-5°F to 140°F)
  Relative Humidity 5% to 95% RH

Certification
  • EAC
  • VCCI
  • CCC
  • RCM
  • KC
  • FCC
  • CE
  • BSMI

Warranty

 5 Years
  Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Environment

 RoHS Compliant

Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 1
  • RJ-45 LAN Cable X 2
  • Quick Installation Guide X 1
SKU DS1621XSPLUS
Barcode # 4711174723652
Brand SYNOLOGY
Shipping Weight 5.3000kg
