Teltonika RUTM55 5G industrial router with eth, serial, and I/Os
Model # RUTM55
-
SKU: RUTM55
Don't pay: $1,233.00
$1,088.00
SAVE $145.00 (12%)
- Pick Up Available
- Australian Warranty
- Checkout Securely
RUTM55
5G Industrial Router
Bring 5G to your industrial networks with RUTM55. This advanced router delivers ultra-high 5G speeds (up to 3.4 Gbps) coupled with versatile 4 x Gigabit Ethernet and Wi-Fi 5 connectivity options. Ensure maximum uptime with dual SIM/eSIM auto-failover. Connect legacy RS232/RS485 devices directly, protecting investments and modernizing infrastructure. Tailored for industrial demands via 3-PIN power input, RUTM55 provides robust, future-proof reliability.
5G
Ultra-high cellular speeds of up to 3.4 Gbps
DUAL SIM & eSIM
Auto-failover, backup WAN, and smart switching
Multiple Interfaces
Ethernet, Serial (RS232, RS485), Inputs/Outputs
3-PIN Power Input
Industrial-grade reliability
- High-Speed 5G and 4G: Supports 5G Sub-6 GHz SA/NSA with up to 3.4 Gbps download and dual SIM/eSIM for automatic failover.
- Advanced Wi-Fi: Dual-band Wi-Fi 5 (802.11ac Wave 2) with MU-MIMO for up to 150 simultaneous clients.
- Versatile Interfaces: Four Gigabit Ethernet ports plus RS232 and RS485 serial connections for industrial integration.
- Comprehensive VPN Support: WireGuard, OpenVPN, IPsec, GRE, DMVPN, SSTP, Tinc, and Tailscale for secure remote access.
- IoT Protocol Compatibility: Supports Modbus, OPC UA, MQTT, DNP3, and DLMS/COSEM for SCADA and industrial IoT systems.
- Industrial-Grade Build: Anodised aluminium housing, IP30 protection, and operation from -40 °C to 75 °C for harsh environments.
- Flexible Power Options: 9–50 VDC input with reverse polarity and surge protection, plus passive PoE support.
- Enhanced Security: Firewall, VLAN separation, attack prevention, web filtering, and TPM 2.0 hardware authentication.
(RUTM55)
Mobile Router Specifications
| Mobile | |
|---|---|
| Mobile Module | 5G Sub-6 GHz SA, NSA 2.4/3.4 Gbps DL (4x4 MIMO), 900/550 Mbps UL (2x2 MIMO); 4G LTE Cat 19 DL 1.6 Gbps (4x4 MIMO), UL Cat 18 200 Mbps |
| 3GPP Release | Release 16 |
| eSIM | Consumer eSIM, up to 7 profiles |
| SIM Switch | Dual SIM & eSIM with auto-switch |
| Status | IMSI, ICCID, operator, signal strength, bands, etc. |
| SMS | SMS status/config, Email↔SMS, HTTP, scheduled, SMPP |
| USSD | Supported |
| Block/Allow List | By operator or country |
| Multiple PDN | Support for multiple services |
| Band Management | Band lock, band status |
| SIM Idle Protection | Idle SIM stays unused until active |
| SIM PIN Management | Set, change, disable PIN |
| APN | Auto APN |
| Bridge | Direct LAN–ISP connection |
| Passthrough | Mobile WAN IP passthrough |
| Framed Routing | Supports IP network behind 5G UE |
| Wireless | |
| Mode | 802.11 b/g/n/ac Wave 2 (Wi-Fi 5), 867 Mbps, MU-MIMO |
| Security | WPA2/WPA3, Enterprise/Personal, 802.11w PMF |
| SSID | Stealth & MAC ACL |
| Users | Up to 150 |
| Features | Mesh (802.11s), 802.11r/v/k roaming |
| MAC Filter | Allowlist / Blocklist |
| QR Code | One-scan Wi-Fi login |
| Ethernet | |
| WAN | 1 x 10/100/1000 Mbps (IEEE 802.3, 802.3u, 802.3az) |
| LAN | 3 x 10/100/1000 Mbps |
| Network | |
| Routing | Static, BGP, OSPFv2, RIP v1/v2, EIGRP, NHRP, PBR |
| Protocols | TCP, UDP, IPv4, IPv6, ICMP, DNS, DHCP, SNMP, MQTT, SSH, etc. |
| Firewall | Port forwarding, rules, TTL customization |
| Hotspot | Captive portal, Radius, themes, user mgmt |
| QoS | Traffic prioritization, SQM |
| VPN | OpenVPN, IPsec, GRE, L2TP, WireGuard, ZeroTier, Tailscale, etc. |
| System Characteristics | |
| CPU | MediaTek Dual-Core, 880 MHz, MIPS1004Kc |
| RAM | 256 MB DDR3 |
| Flash | 16 MB NOR + 256 MB NAND |
| Firmware | RutOS (OpenWrt-based) |
| Location Tracking | |
| GNSS | GPS, GLONASS, BeiDou, Galileo, QZSS |
| Protocols | NMEA 0183, NTRIP |
| Geofencing | Multiple configurable zones |
| Interfaces | |

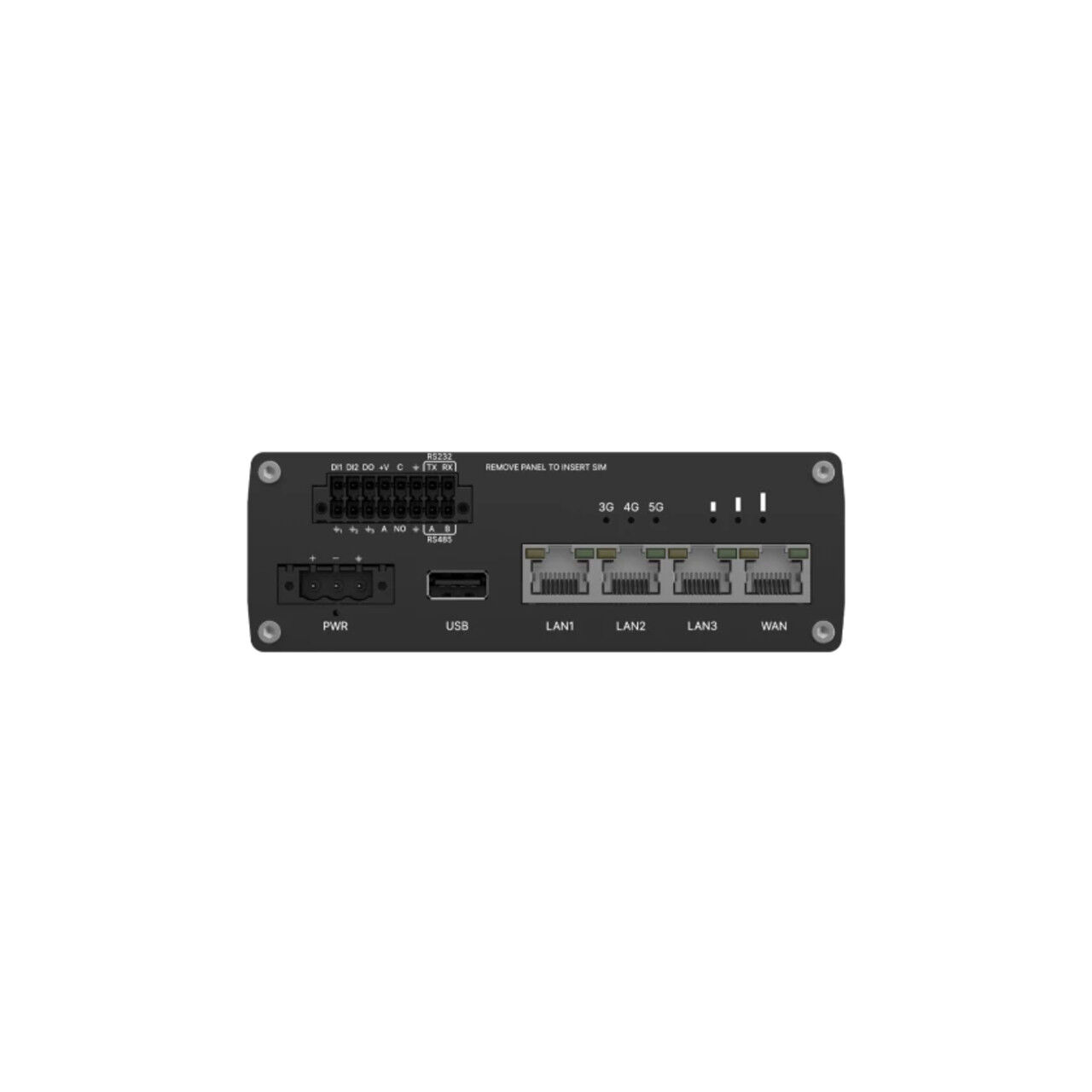

| Ethernet | 4 x RJ45 (10/100/1000 Mbps) |
| SIM | 2 x Mini SIM (2FF) |
| USB | 1 x USB 2.0 A |
| Serial | RS232, RS485 |

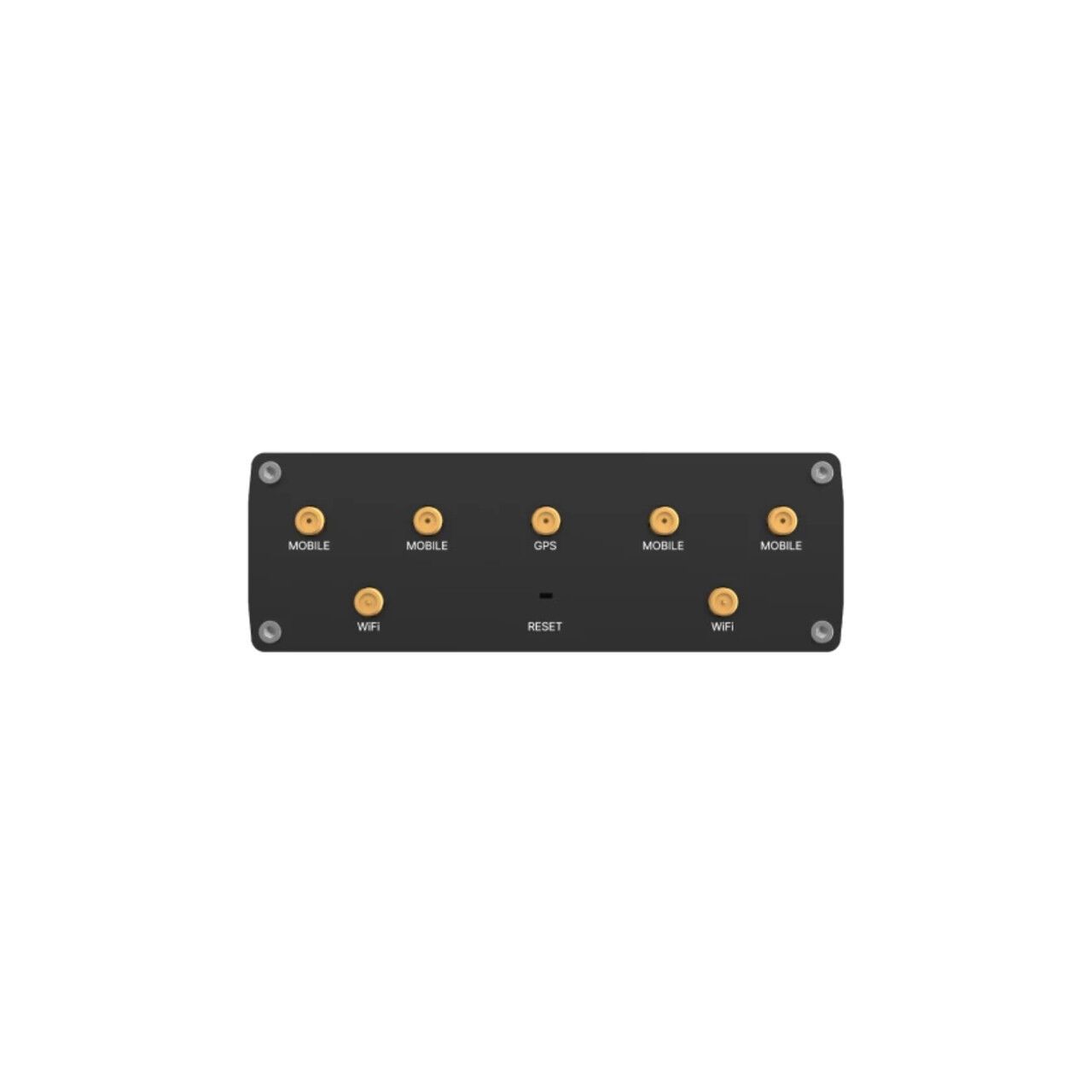

| Antennas | 4 x SMA (Mobile), 2 x RP-SMA (Wi-Fi), 1 x SMA (GNSS) |
| LEDs | LAN, Power, Mobile status/strength |
| Physical Specifications | |
| Material | Anodized aluminum |
| Dimensions | 132 x 44.2 x 95 mm |
| Weight | 430 g |
| Mounting | DIN rail, wall, flat (kit required) |
| Operating Environment | |
| Temperature | -40 to 75 °C |
| Humidity | 10–90% non-condensing |
| Ingress Rating | IP30 |
| Regulatory & Certifications | |
| Certifications | CE, UKCA, CB, RCM, EAC, UCRF, WEEE |
| SKU | RUTM55 |
| Brand | TELTONIKA |
| Shipping Weight | 0.4000kg |
