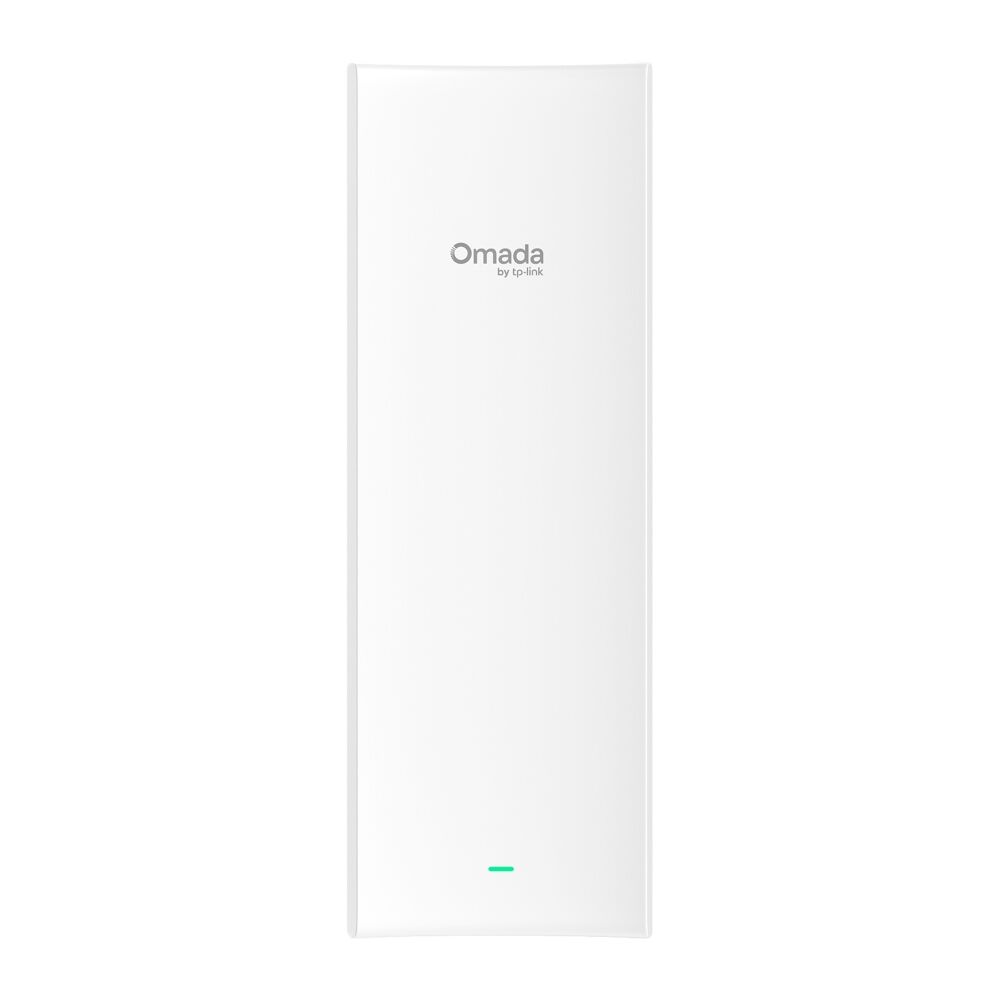

TP-LINK SECTOR-BRIDGE-5

TP-Link Omada Sector Bridge 5 Long-Range Wireless Hub

A 5GHz Omada central hub for long-range point-to-point and point-to-multipoint links, delivering up to 867Mbps, a 120° horizontal beamwidth and transmission distances up to 5km.

Up to 867Mbps at 5GHzUp to 32 PtMP linksUp to 5km distanceIP66 enclosure

Product overview

Product details and key benefits

Sector Bridge 5 is designed as a scalable hub for linking multiple buildings or remote endpoints. Its internal directional antennas provide a wide sector beam for multipoint deployment.

Pairing-code DIP switches, app-guided alignment, pole or wall mounting and standalone or Omada SDN management simplify deployment and ongoing administration.

Long-range sector coverage

Up to 5km transmission distance with 5GHz signal rates up to 867Mbps and a 120° horizontal beamwidth.

Scalable multipoint operation

Point-to-point support and point-to-multipoint operation for up to 32 links.

Outdoor construction

IP66 weatherproof enclosure, -40°C to 70°C operating range and lightning-protection ratings up to ±8kV air discharge and ±6kV common mode.

Flexible power and management

Supports 12V DC, 802.3af PoE and 24V passive PoE, with web, app, controller and cloud-access options.

Important product details

The included 24V passive PoE adapter is for dry indoor use only.
Cloud access requires an Omada Controller.
The 2.4GHz radio is for device management only.

Warranty and purchase confidence

DeviceDeal is an authorised reseller. This product is supported by the applicable TP-LINK manufacturer warranty. Keep your DeviceDeal tax invoice as proof of purchase. Warranty eligibility, assessment and claims are subject to the manufacturers terms and conditions.

Buying information

Frequently asked questions

What is the TP-Link Omada Sector Bridge 5 used for?

It is a 5GHz long-range wireless hub for point-to-point and point-to-multipoint links between buildings or remote endpoints.

How many remote links can it support?

It supports point-to-multipoint operation for up to 32 links.

What is the maximum transmission distance?

The maximum transmission distance is 3.1 miles, or 5,000 metres.

What wireless speed does it support?

The 5GHz signal rate reaches up to 867Mbps.

How can the Sector Bridge 5 be powered?

It supports 12V DC, 802.3af PoE and 24V passive PoE. The included passive PoE adapter is for dry indoor use only.

Is it suitable for outdoor installation?

Yes. It has an IP66 weatherproof enclosure and operates from -40°C to 70°C.

How is it mounted?

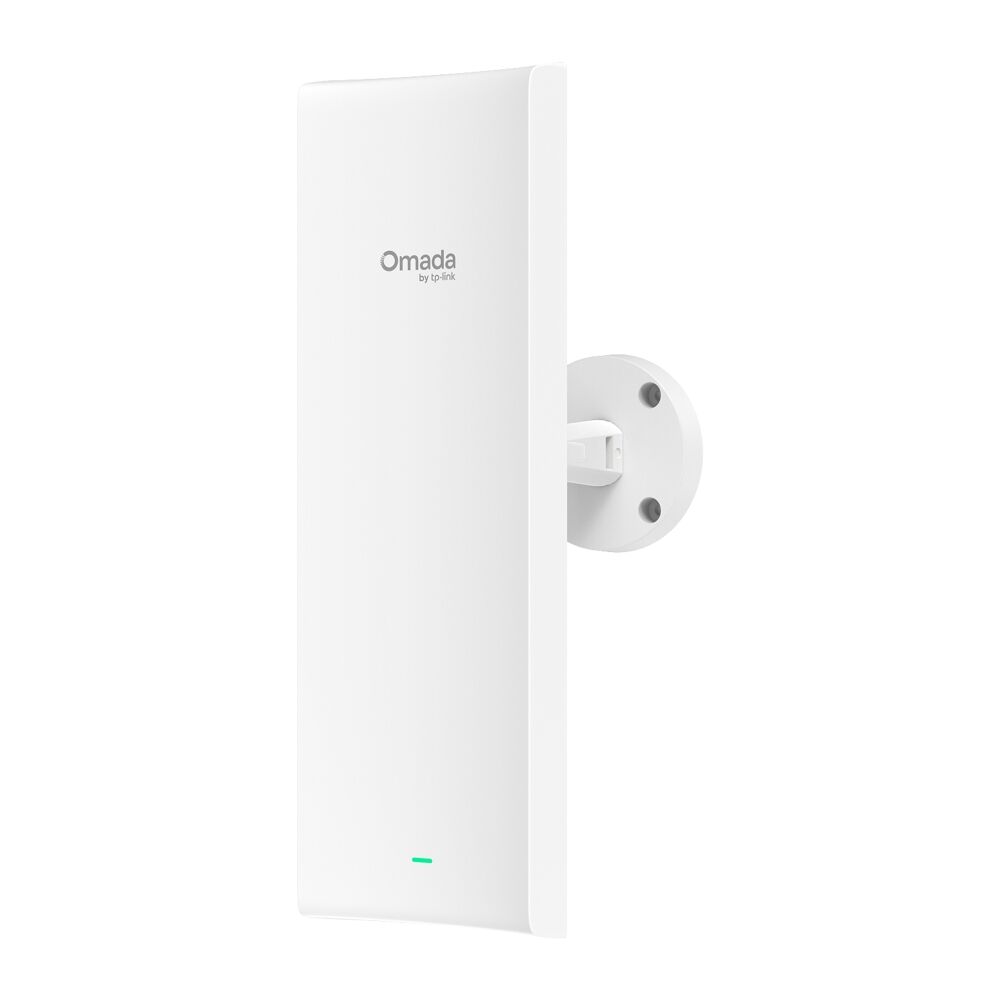

It supports pole and wall mounting, and the mounting kits are included.

Can it be managed through Omada?

Yes. Omada app, web, controller and cloud-management options are available. Cloud access requires an Omada Controller.

(SECTOR-BRIDGE-5)

Features and highlights

TP-Link Omada Sector Bridge 5 Long-Range Wireless Hub

Long-range sector coverage

Up to 5km transmission distance with 5GHz signal rates up to 867Mbps and a 120° horizontal beamwidth.

Scalable multipoint operation

Point-to-point support and point-to-multipoint operation for up to 32 links.

Outdoor construction

IP66 weatherproof enclosure, -40°C to 70°C operating range and lightning-protection ratings up to ±8kV air discharge and ±6kV common mode.

Flexible power and management

Supports 12V DC, 802.3af PoE and 24V passive PoE, with web, app, controller and cloud-access options.

Key highlights

1 × Gigabit Ethernet port
5GHz signal rate up to 867Mbps
Up to 32 point-to-multipoint links
Transmission distance up to 5,000m
120° horizontal / 13° vertical beamwidth
IP66 weatherproof enclosure
Wall and pole mounting kits included
Standalone and Omada SDN management

DeviceDeal is an authorised reseller. This product is supported by the applicable TP-LINK manufacturer warranty.

Technical specifications

TP-Link Omada Sector Bridge 5 Long-Range Wireless Hub

Hardware

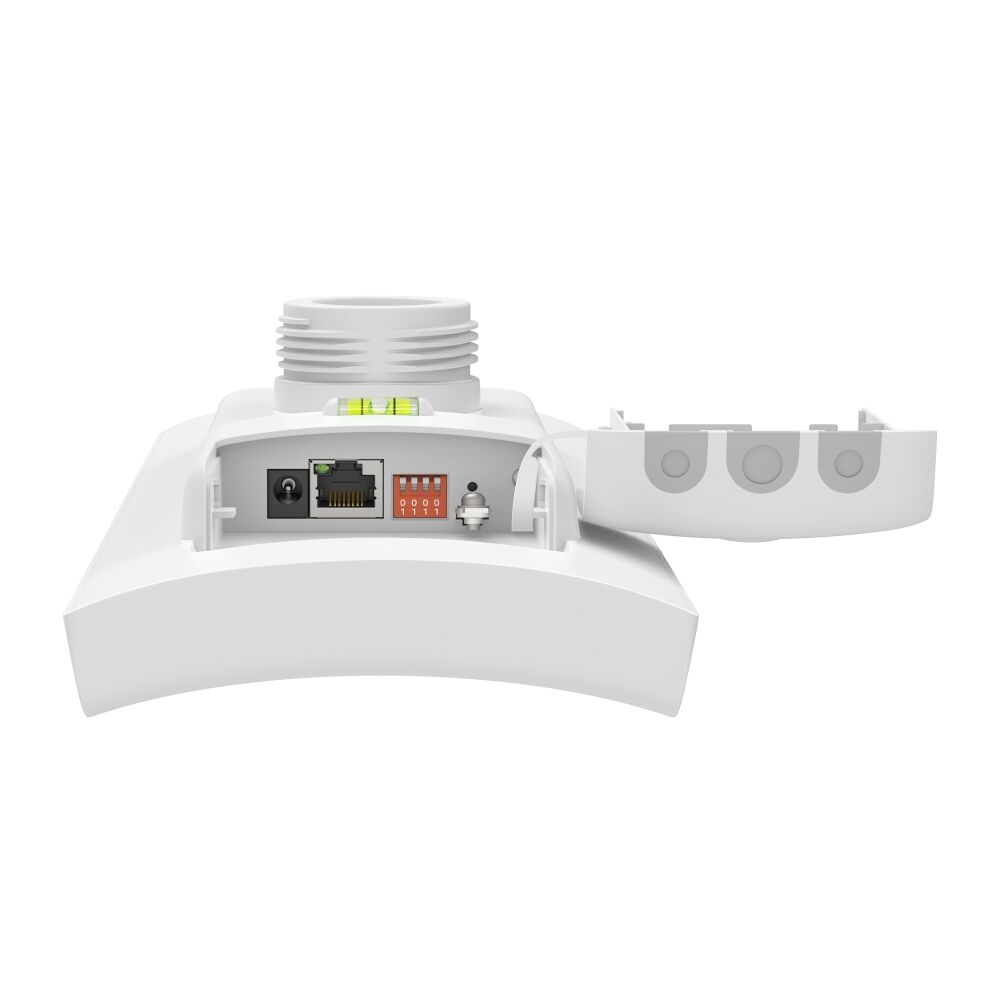

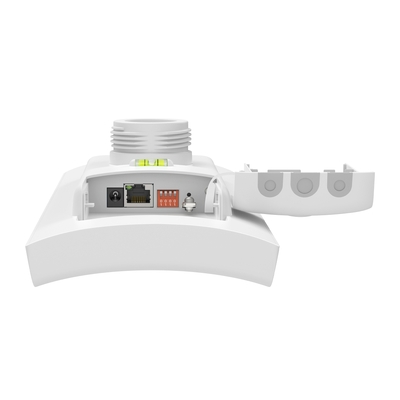

Interface	1 × Gigabit Ethernet port
Button	Reset
DIP switch	Pairing code switch
Dimensions (W × D × H)	358.5 × 124.6 × 70.5 mm (14.1 × 4.9 × 2.8 in)
Weatherproof enclosure	IP66
Mounting	Pole and wall mounting; kits included

Antennas and wireless

2.4GHz antenna	1 × 4dBi peak-gain internal omnidirectional antenna
5GHz antennas	2 × 16dBi peak-gain internal directional antennas
Beamwidth	Horizontal 120°; vertical 13°
Wireless standards	IEEE 802.11a/b/g/n/ac
Frequency	2.4GHz for device management only; 5GHz for wireless links
5GHz signal rate	Up to 867Mbps
Point-to-point	Yes
Point-to-multipoint	32 maximum
Transmission distance	3.1 mi (5,000m)
Wireless functions	5GHz 2×2 MU-MIMO downlink; wireless statistics; reboot schedule; RADIUS accounting; static/dynamic IP; rate limit; radio and SSID broadcast control
Wireless security	VLAN; rogue AP detection; WPA/WPA2

Power

Power inputs	12V DC / 1A; 802.3af PoE; 24V passive PoE
Passive PoE adapter	Included; for dry indoor use only
Maximum power consumption	DC: 9W; PoE: 10.5W

Management

Omada app	Yes
Centralised management	Omada Central cloud-based; Omada Hardware Controller; Omada Software Controller
Cloud access	Yes; requires an Omada Controller
Other management	Restore and backup; web firmware update; NTP; email alerts; LED control; SNMP; SSH; web management; zero-touch provisioning

Transmission power

CE	623dBm at 5GHz U-NII-1 and U-NII-2A, EIRP; 630dBm at 5GHz U-NII-2C, EIRP
FCC	423dBm at 5GHz U-NII-1; 425dBm at 5GHz U-NII-3

Environmental and package

Certifications	CE, FCC, RoHS
Lightning protection	Air discharge ±8kV; contact discharge ±4kV; common mode 10/700 ±6kV
Operating temperature	-40°C to 70°C (-40°F to 158°F)
Storage temperature	-40°C to 70°C (-40°F to 158°F)
Operating humidity	10%90% non-condensing
Storage humidity	5%90% non-condensing
Package contents	Sector Bridge 5; installation guide; mounting kit; passive PoE adapter; power cord

SKU	SECTOR-BRIDGE-5
Brand	TP-LINK
