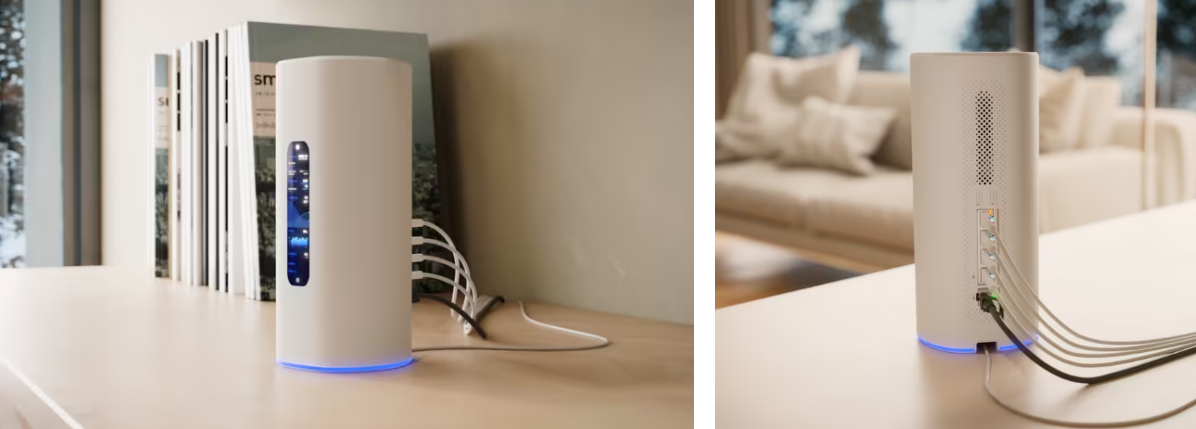

Desktop Cloud Gateway with full-performance 5G up to 3.4 Gbps, WiFi 7, 10G SFP+, 4-port 2.5 GbE switch with (1) PoE port, and SD card storage.

(UDR-5G-Max-15W)

Router Comparison	UniFi Express 7 UX7	Dream Router 7 UDR7	Dream Router 5G Max UDR-5G-Max
Overview
Dimensions	117 x 117 x 42.5 mm (4.61 x 4.61 x 1.67")	⌀110 x 184.1 mm (⌀4.3 x 7.3")	110 x 110 x 250 mm (4.3 x 4.3 x 9.8")
Form Factor	Compact desktop	Compact desktop	Desktop
Managed Cameras	—	(5) HD, (2) 2K, (1) 4K	(5) HD, (2) 2K, (1) 4K
Max. WAN Port Count	1	4	4
Default WAN Ports	(1) 10 GbE RJ45	(1) 10G SFP+ (1) 2.5 GbE RJ45	(1) 10G SFP+ (1) 2.5 GbE RJ45

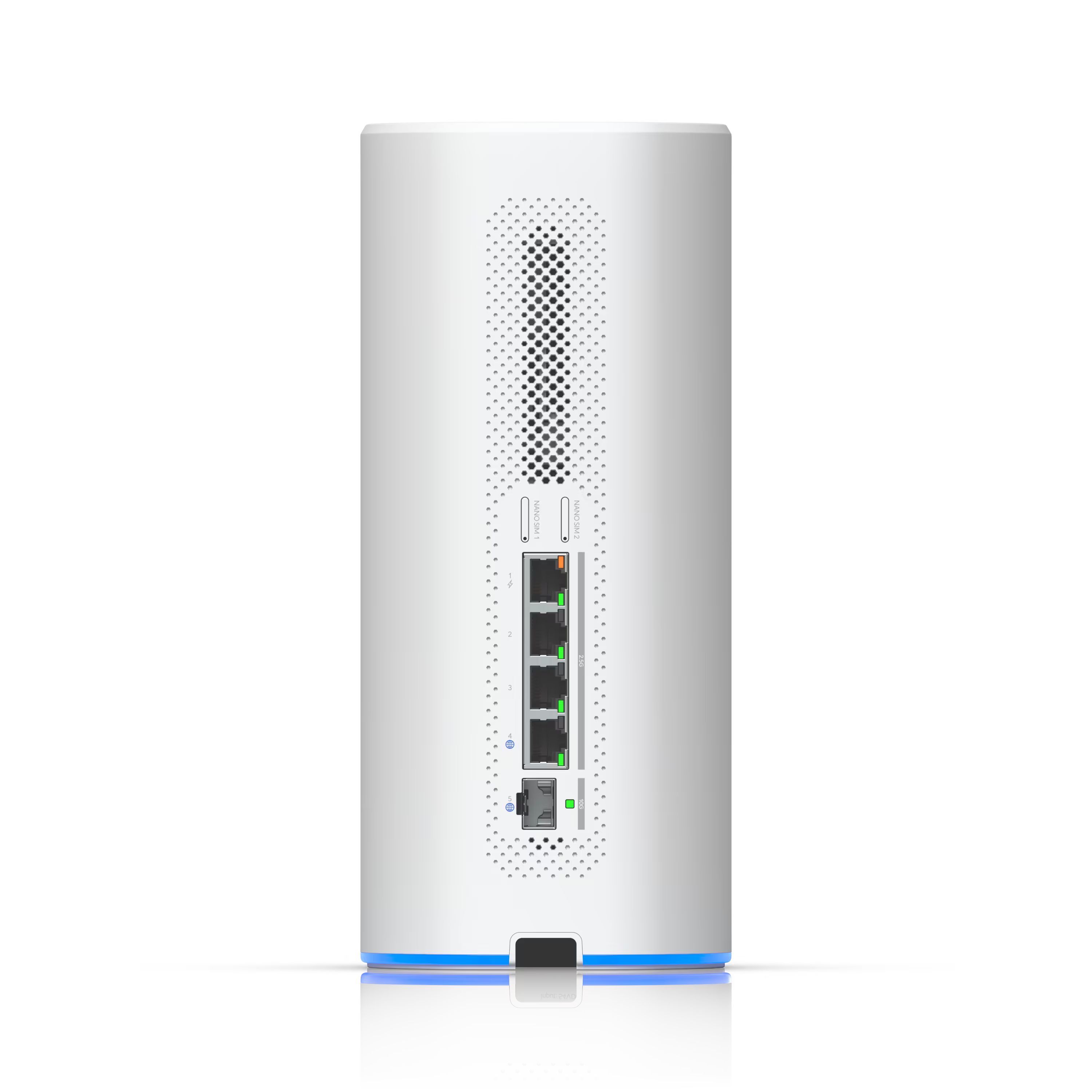

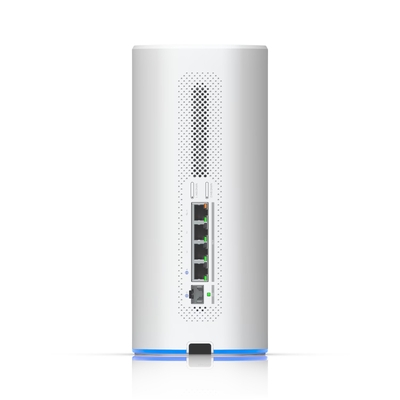

Port Layout
2.5 GbE RJ45	1 (2.5G/1G/100M/10M)	4 (1 PoE) (2.5G/1G/100M/10M)	4 (1 PoE) (2.5G/1G/100M)
10 GbE RJ45	1 (10G/5G/2.5G/1G/100M)	—	—
10G SFP+	—	1 (10G/1G)	1 (10G/1G)
UniFi Application Suite
Protect	—	✓	✓
Access	—	✓	✓
Talk	—	✓	✓
Connect	—	✓	✓
Networking & WiFi
Multi-WAN Load Balancing	—	✓	✓
MAC Address Table Size	—	2,000	2,000
Max. BSSIDs	4 per Radio (Gateway/AP Mode)	4 per Radio	4 per Radio
Antenna Gain
6 GHz	6 dBi	6 dBi	8 dBi
5 GHz	7 dBi	7 dBi	5 dBi
2.4 GHz	4 dBi	5 dBi	4 dBi
Hardware
NVR Storage	—	Pre-installed 64GB microSD	Pre-installed 64GB microSD
Expansion Slot	—	MicroSD Card	MicroSD Card
PoE Budget	—	15.4W	15.4W
Max. PoE Wattage per Port	—	15.4W	15.4W
Voltage Range PoE Mode	—	44-57V	44–57V
Max. Power Consumption	22W	26W (Excluding PoE)	34.5W (Excluding PoE)
Power Method	USB type C (5V DC/5A)	Universal AC input, 100–240V AC, 1.5A Max	DC jack (54V DC/1.1A)
Power Supply	USB type C (Adapter included)	AC/DC, Internal, 50W	54V DC/1.1A (Adapter included)
Heat Dissipation	75 BTU/hr	89 BTU/hr (Excluding PoE)	115 BTU/hr (Excluding PoE)
Weight	422 g (14.9 oz)	1.1 kg (2.4 lb)	1.4 kg (3.1 lb)
LCM Display	0.96" status display	0.96" status display	4.7" touchscreen
Ambient Operating Temp	-10 to 40° C (14 to 104° F)	-10 to 40° C (14 to 104° F)	0 to 40° C (32 to 104° F)
Certifications	CE, FCC, IC, Anatel: 06656-25-08356	CE, FCC, IC, Anatel: 05650-25-08356	FCC, IC, CE, GCF, PTCRB, AT&T, T-Mobile, Wi-Fi Alliance®

Item	Value
Dimensions	110 x 110 x 250 mm (4.3 x 4.3 x 9.8")
UniFi Application Suite	Network ✓; Protect ✓; Access ✓; Talk ✓; Connect ✓
Managed UniFi Devices	30+
Managed Cameras	(5) HD; (2) 2K; (1) 4K
Simultaneous Users Connected	300+
Max. WAN Port Count	4
Default WAN Ports	(1) 10G SFP+; (1) 2.5 GbE RJ45
Port Layout	2.5 GbE RJ45: 4 (1 PoE) (2.5G/1G/100M); 10G SFP+: 1 (10G/1G)
IDS/IPS Throughput	2.3 Gbps
Form Factor	Desktop
Coverage Area	160 m² (1,750 ft²)
Stateful Firewall	✓
Application-Aware Layer 7 Firewall	✓
DPI & Traffic Identification	✓
Zone-Based Firewall Advanced Filtering	✓
Content Filtering	✓
Intrusion Prevention (IPS/IDS)	✓
Ad Blocking	✓
IDS/IPS Signatures	20,000+ with CyberSecure
License-Free SD-WAN	✓
Site-to-Site VPN	Site Magic ✓; IPsec ✓; OpenVPN ✓
VPN Server	Identity Endpoint One-Click VPN ✓; Teleport Zero-Configuration VPN ✓; WireGuard ✓; OpenVPN ✓; L2TP ✓
VPN Client	OpenVPN ✓; WireGuard ✓
Site-to-Site VPN Single Tunnel Throughput	Site Magic: 20
VPN Client Single Tunnel Throughput	WireGuard: 8; OpenVPN: 8
Multi-WAN Load Balancing	✓
Dynamic Routing	OSPF ✓
Advanced QoS	✓
Multicast DNS (mDNS)	✓
Advanced NAT	✓
Integrated RADIUS Server	✓
RADIUS over TLS (RadSec)	✓
Additional Internet Failover with UniFi LTE Backup	✓
Internet Quality and Outage Reporting	✓
MAC Address Table Size	2,000
WiFi Standard	802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
WiFi Throughput	6 GHz: 5.7 Gbps; 5 GHz: 4.3 Gbps; 2.4 GHz: 688 Mbps
MIMO	6 GHz: 2x2; 5 GHz: 2x2; 2.4 GHz: 2x2
Antenna Gain	6 GHz: 8 dBi; 5 GHz: 5 dBi; 2.4 GHz: 4 dBi
Max. TX Power	6 GHz: 22 dBm; 5 GHz: 26 dBm; 2.4 GHz: 23 dBm
Wireless Security	WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
Max. BSSIDs	4 per Radio
Supported Data Rates (802.11be)	7.3 Mbps to 5.7 Gbps
Supported Data Rates (802.11ax)	7.3 Mbps to 2.4 Gbps
Supported Data Rates (802.11ac)	6.5 Mbps to 1.7 Gbps
Supported Data Rates (802.11n)	6.5 Mbps to 300 Mbps
Supported Data Rates (802.11g)	6, 9, 12, 18, 24, 36, 48, 54 Mbps
Supported Data Rates (802.11b)	1, 2, 5.5, 11 Mbps
Supported Data Rates (802.11a)	6, 9, 12, 18, 24, 36, 48, 54 Mbps
5G NR Category	5G NR Sub-6
5G NR Frequency Bands	n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
5G NR Max. TX Power	HPUE power class 2: 26 dBm
4G LTE Frequency Bands	B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B18, B19, B20, B21, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
4G LTE Max. TX Power	HPUE power class 2: 25 dBm
3G UMTS Frequency Bands	B1, B2, B4, B5, B8, B19
Peak Data Speed 5G NSA	Downlink 3.4 Gbps; Uplink 560 Mbps
Peak Data Speed 5G SA	Downlink 1.8 Gbps; Uplink 650 Mbps
Peak Data Speed 4G LTE	Downlink 1.6 Gbps; Uplink 210 Mbps
Cellular Antenna Gain	617–960 MHz: 3 dBi; 1710–2700 MHz: 7 dBi; 3300–5000 MHz: 8 dBi; 5150–5925 MHz: 8 dBi
SIM	(1) Nano SIM; (1) Nano-SIM or eSIM
NVR Storage	Pre-installed 64 GB microSD
Expansion Slot	MicroSD Card
PoE Budget	15.4W
Max. PoE Wattage per Port	15.4W
Voltage Range PoE Mode	44–57V
Max. Power Consumption	34.5W (Excluding PoE output)
Power Method	DC jack (54V DC/1.1A)
Power Supply	54V DC/1.1A (Adapter included)
Processor	Quad-core ARM Cortex-A53 at 1.5 GHz
System Memory	3 GB
Weight	1.4 kg (3.1 lb)
Enclosure Material	Polycarbonate

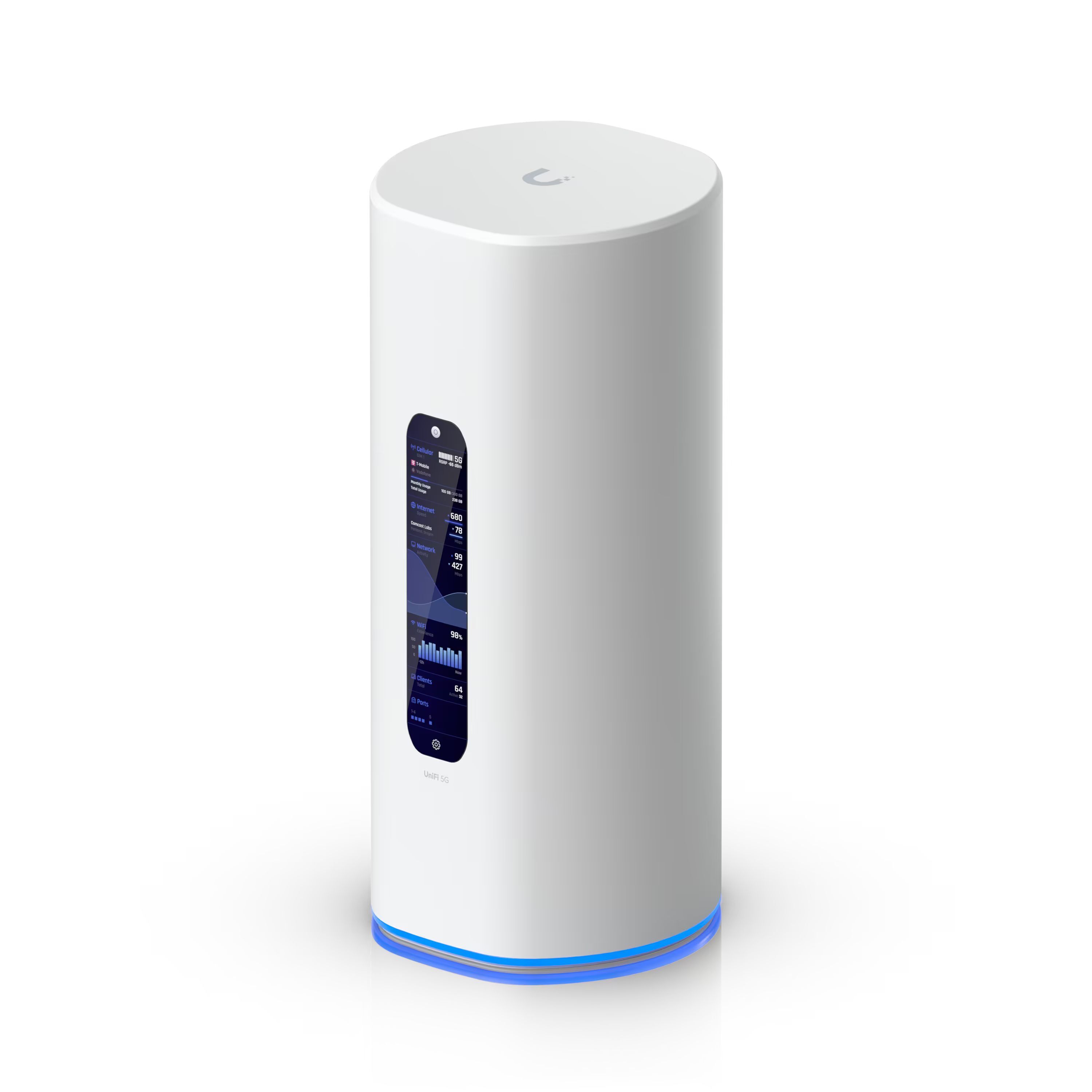

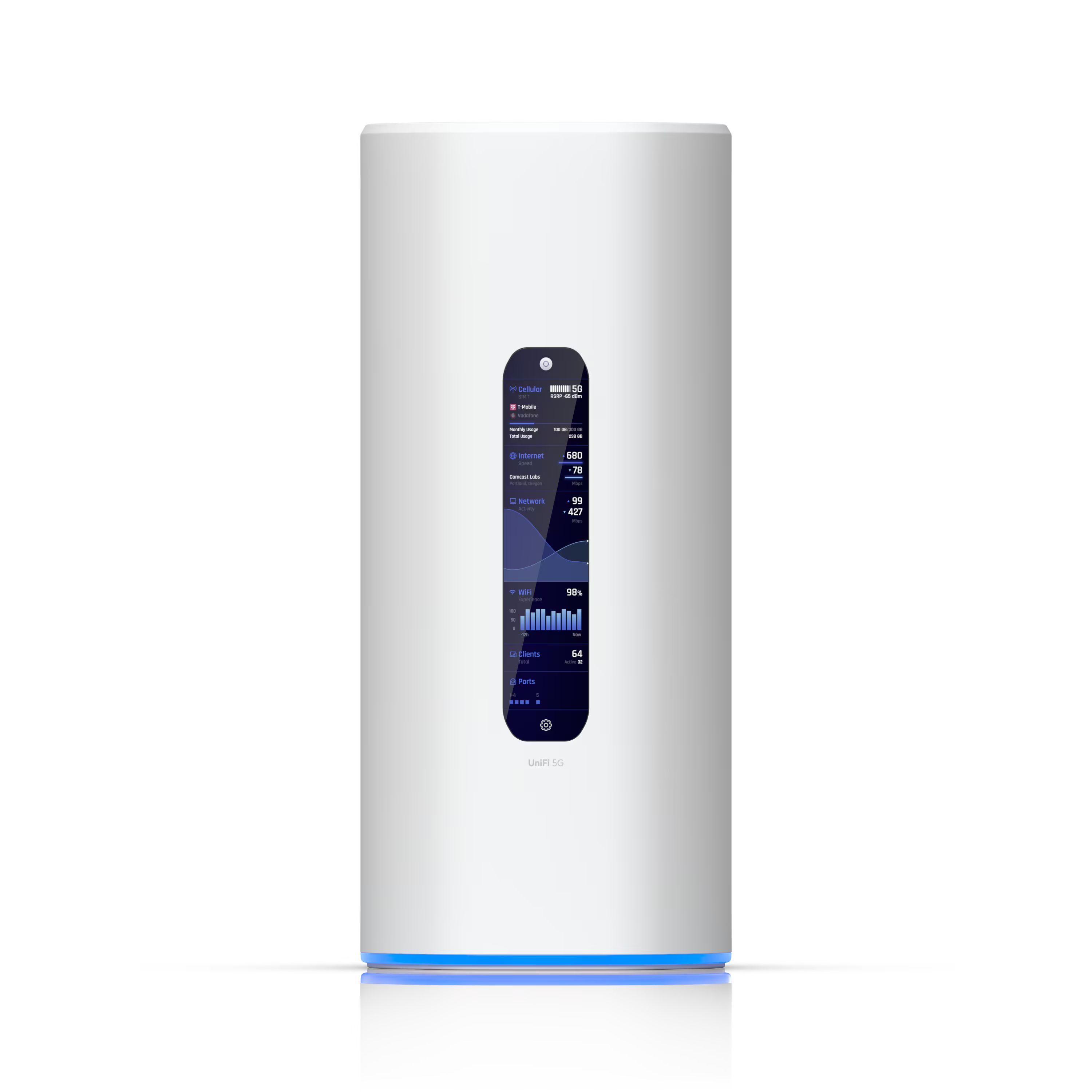

LCM Display	4.7" touchscreen
Management	Ethernet; Bluetooth
LEDs	Ethernet ✓; SFP+ ✓; System ✓
Button	(1) Factory-reset
ESD/EMP Protection	Air: ± 8kV; Contact: ± 4kV
Ambient Operating Temperature	0 to 40°C (22 to 104°F)
Ambient Operating Humidity	5 to 95% noncondensing
NDAA Compliant	✓
Certifications	FCC, IC, CE, GCF, PTCRB, AT&T, T-Mobile, Verizon, Wi-Fi Alliance®

SKU	UDR-5G-Max-15W
Barcode #	810177162377
Brand	Ubiquiti
Shipping Weight	2.0000kg
Shipping Width	0.110m
Shipping Height	0.250m
Shipping Length	0.110m
Shipping Cubic	0.003025000m3

Manufacturer Warranty : 1 year Manufacturer Warranty
