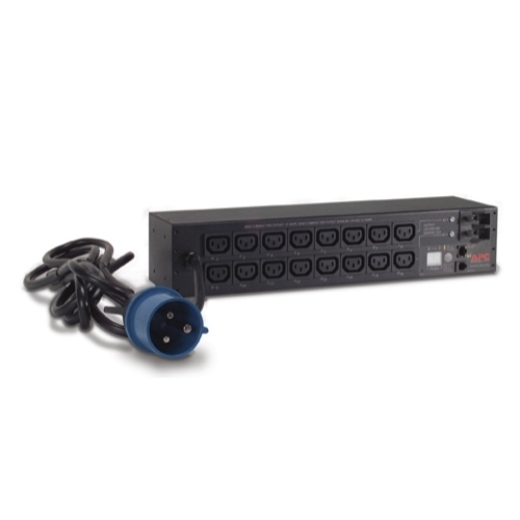

APC Rack PDU, Switched, 2U, 32A, 230V, (16)C13
Model # AP7922B
-
SKU: AP7922B
- Pick Up Available
- Australian Warranty
- Checkout Securely
Rack PDU, Switched, 2U, 32A, 230V, (16)C13
SKU: AP7922B | Brand: APC Brand
Key Features
- 1-Year Secure Network Management Card subscription included
- It can handle a maximum current capacity of 32A, making it suitable for various applications
- It features 16 IEC C13 outlets, providing ample connectivity options
- With a 2U form factor, it saves valuable rack space and allows for efficient cable management
- Supports remote monitoring and control, enabling users to manage power distribution from a distance
Description
It is a switched rack PDU with a maximum current capacity of 32A and an input voltage of 230V.
It features 16 IEC 60320 C13 outlets and an IEC 60309 309 input connection.
The PDU has a 2U form factor and a cord length of 10 feet.
It supports remote monitoring and user-defined alarms, with outlet-level on/off switching capabilities.
The unit is CE and VDE certified, ensuring high safety and performance standards.
Product Images
Downloads & Documents
× ![]()
(AP7922B)
Specifications - AP7922B
Overview
| Lead time | Usually in Stock |
Main
| Colour | Black |
| Product or component type | PDU |
| PDU type | Switched |
| Cord length | 3 m |
| Number of cables | 1 |
| Provided equipment | Documentation CD Installation guide Rack mounting brackets |
Complementary
| Input Voltage | 200 V 208 V 230 V |
| Height | 89 mm |
| Width | 445 mm |
| Output Voltage | 230 V |
| Depth | 114 mm |
| Net weight | 4.5 kg |
| Mounting location | Front Rear |
| Mounting preference | No preference |
| Input Plug Type | IEC 60309 32 A 2P + E |
| Mounting mode | Rack-mounted |
| Rack units | 2U |
| Mounting position | Horizontal |
| permissible voltage | 220…240 V |
| Input current limits | 32 A |
| Load capacity | 7360 VA |
| Network frequency | 50/60 Hz |
| Outlet type and quantity | 16 IEC 60320 C13 |
Environment
| Product certifications | CE GOST IRAM MIC VDE |
| Standards | EN 55022 class A EN 55024 EN 61000-3-2 EN 61000-3-3 |
| Ambient air temperature for operation | 0…45 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for storage | -25…65 °C |
| Storage Relative Humidity | 0…95 % |
| Storage altitude | 0…15240 m |
Packing Units
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 14 cm |
| Package 1 Width | 36.8 cm |
| Package 1 Length | 50.8 cm |
| Package 1 Weight | 6.55 kg |
Contractual warranty
| Warranty (in months) | 24 |
| SKU | AP7922B |
| Barcode # | 731304331636 |
| Brand | APC |
| Shipping Weight | 6.6900kg |
Manufacturer Warranty
