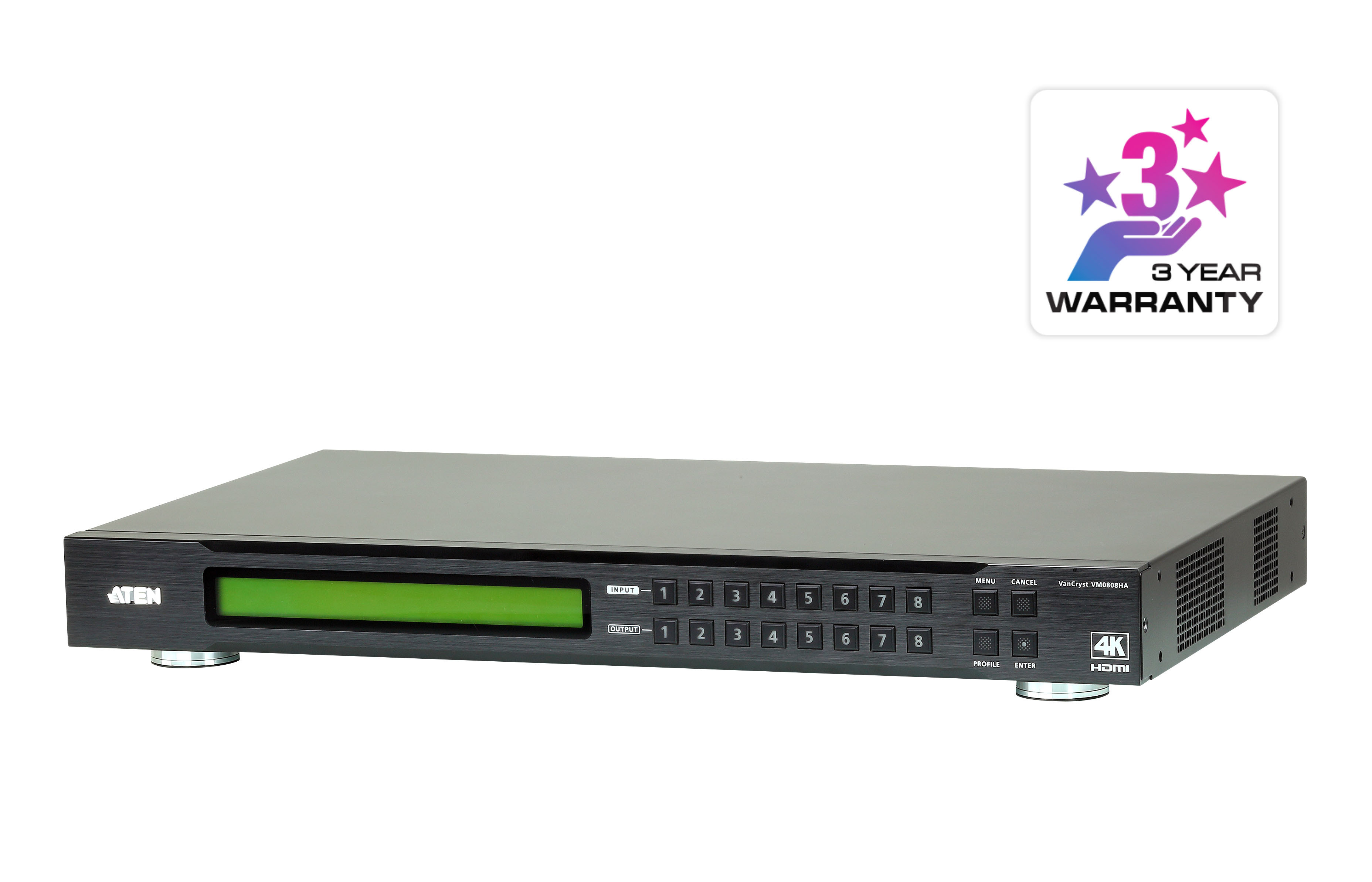

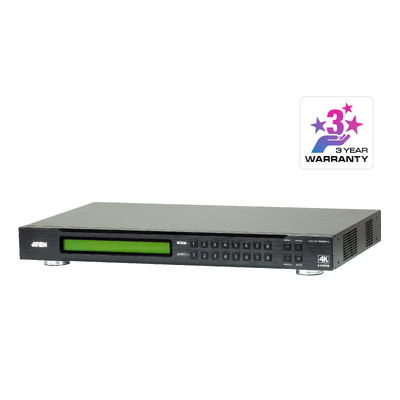

ATEN VM0808HA-AT-U 8x8 4K HDMI Matrix Switch
Model # VM0808HA-AT-U
-
SKU: VM0808HA-AT-U
- Pick Up Available
- Australian Warranty
- Checkout Securely
The ATEN VM0808HA 8x8 4K HDMI Matrix Switch supports 4K resolutions of UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0). Ready for the future of high-definition video switching, the VM0808HA is ideal for applications where the routing of 4K digital signals is required, such as in classrooms, auditoriums, department stores and more.

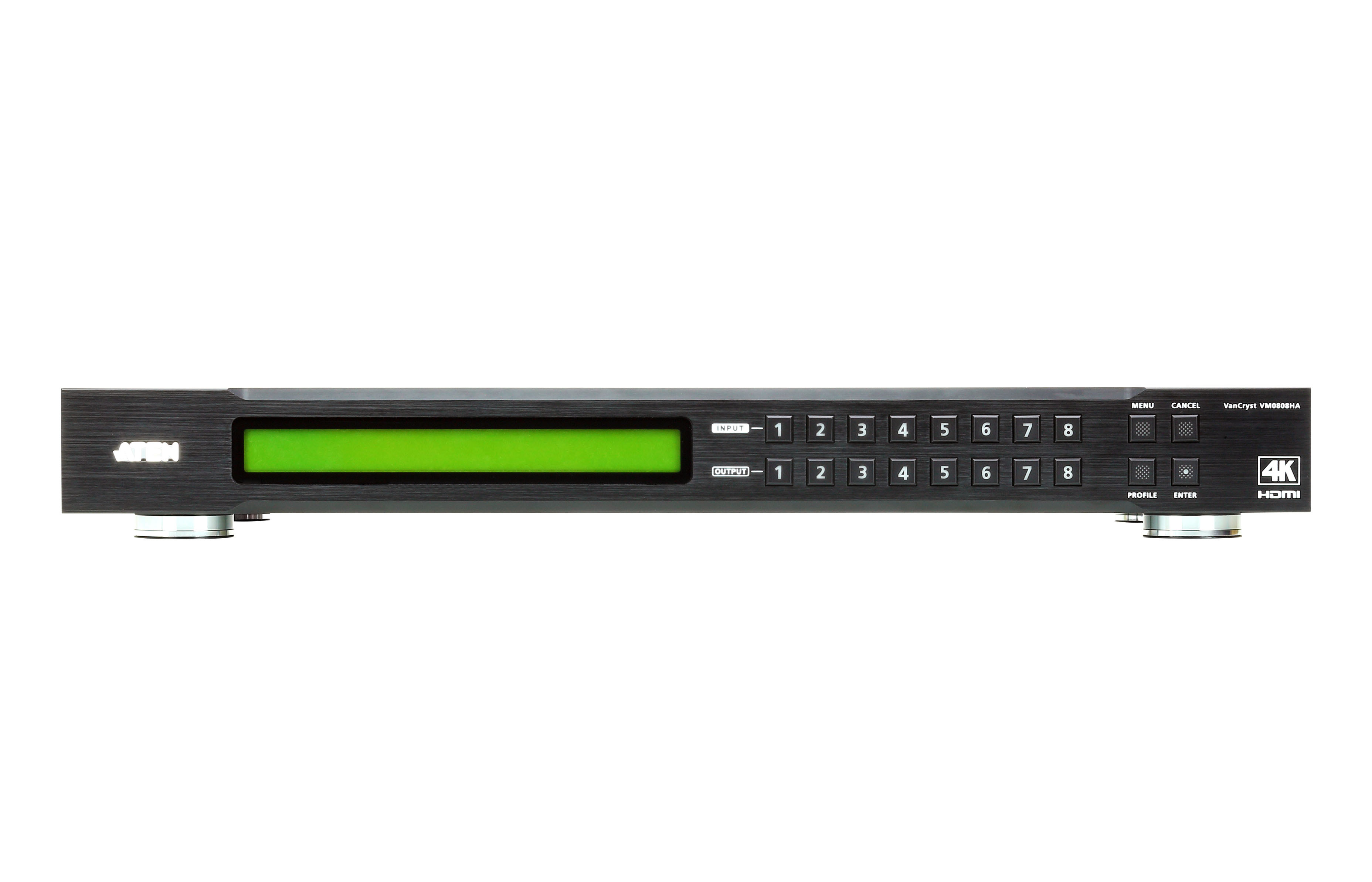

The VM0808HA matrix switch offers an easy and affordable way to route any of 8 HDMI video sources to any of 8 HDMI displays and can be operated through front-panel pushbuttons, IR remote, RS-232 control and Ethernet connections, ensuring optimum viewing and control of high-definition video. Moreover, with a built-in Web GUI, the VM0808HA is easily accessible via any web browser for remote configuration and customization of each HDMI source and display connection.
Package Contents
- 1x VM0808HA 8x8 4K HDMI Matrix Switch
- 1x Power Cord
- 1x IR Remote Control
- 1x IR Receiver
- 1x Mounting Kit
- 1x User Instructions
(VM0808HA-AT-U)

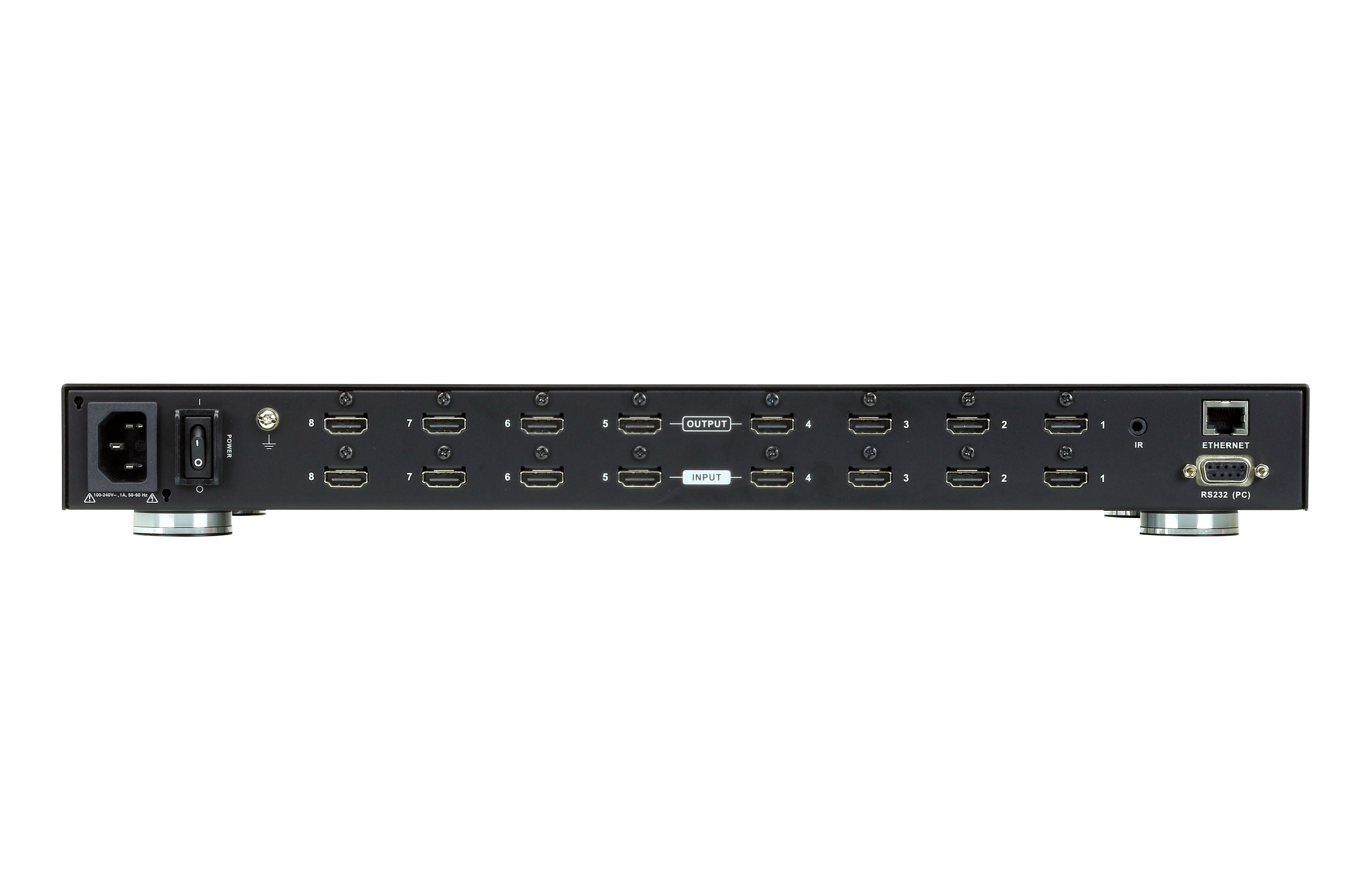

| Video Input | |
| Interfaces | 8 x HDMI Type A Female (Black) |
| Impedance | 100 ? |
| Max. Distance | 5 m |
| Video Output | |
| Interfaces | 8 x HDMI Type A Female (Black) |
| Max. Distance | 15 m |
| Impedance | 100 ? |
| Video | |
| Max. Pixel Clock | 340 MHz |
| Max. Resolution | Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
| Max. Data Rate | 10.2 Gbps (3.4 Gbps Per Lane) |
| Compliance | HDMI (3D, 4K, Deep Color) HDCP 2.2 Compatible Consumer Electronics Control (CEC) |
| Max. Distance | Up to 15 m |
| Control | |
| RS-232 | Connector: 1 x DB-9 Female (Black) Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No |
| IR | 1 x Mini Stereo Jack Female (Black) |
| Ethernet | 1 x RJ-45 Female |
| EDID Settings | EDID Mode: Default / Port 1 / Remix / Customized (EDID Wizard Support) |
| Environmental | |
| Operating Temperature | 0-40°C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Storage Temperature | -20 - 60°C |
| Physical Properties | |
| Weight | 3.86 kg ( 8.5 lb ) |
| Housing | Metal |
| Dimensions (L x W x H) | 43.24 x 26.23 x 4.40 cm (17.02 x 10.33 x 1.73 in.) |
| Connectors | |
| Power | 1 x 3-Prong AC Socket |
| Carton Lot | 1 pc |
| Power Consumption | AC110V:24W:113BTU AC220V:24.4W:114BTU |
| Power | |
| Maximum Input Power Rating | 100-240 VAC; 50-60 Hz; 1.0A |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| SKU | VM0808HA-AT-U |
| Barcode # | 4719264643866 |
| Brand | ATEN |
| Shipping Weight | 3.8600kg |
