StarTech 4x4 HDMI Matrix Switch w/Audio and Ethernet Control, 4K 60 - VS424HD4K60
Model # VS424HD4K60
-
SKU: VS424HD4K60
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech.com 4x4 HDMI Matrix Switch - 4K 60Hz
A rack-mountable HDMI 2.0 matrix that independently routes four HDMI sources to four HDMI displays at up to 4K 60Hz with HDR, 18Gbps bandwidth, WebGUI and RS-232 control.
Why choose VS424HD4K60?
Independently routes four HDMI inputs across four HDMI outputs.
Supports 3840 x 2160 at 60Hz with 4:4:4 8-bit video and HDR.
HDMI 2.0 bandwidth up to 18Gbps with EDID management.
Best-fit applications
- Distribute four sources across four meeting or training-room displays
- Create flexible 4K digital-signage routing
- Integrate multi-display switching into a managed AV rack
Australian warranty assurance
Australian version supplied by DeviceDeal. Covered by the official StarTech.com manufacturer warranty in Australia for 2 years. Retain your DeviceDeal tax invoice. Warranty service is subject to StarTech terms, eligibility and product assessment.
Information verified against the supplied DeviceDeal source workbook, the exact DeviceDeal product page and exact-SKU official StarTech.com product data.
Read DeviceDeal buying guidesFrequently asked questions
What does StarTech.com VS424HD4K60 do?
A rack-mountable HDMI 2.0 matrix that independently routes four HDMI sources to four HDMI displays at up to 4K 60Hz with HDR, 18Gbps bandwidth, WebGUI and RS-232 control.
Which equipment works with VS424HD4K60?
It accepts four HDMI sources and four HDMI displays, independently routes any source to any output, and supports lower resolutions including 1080p.
What inputs and outputs does VS424HD4K60 provide?

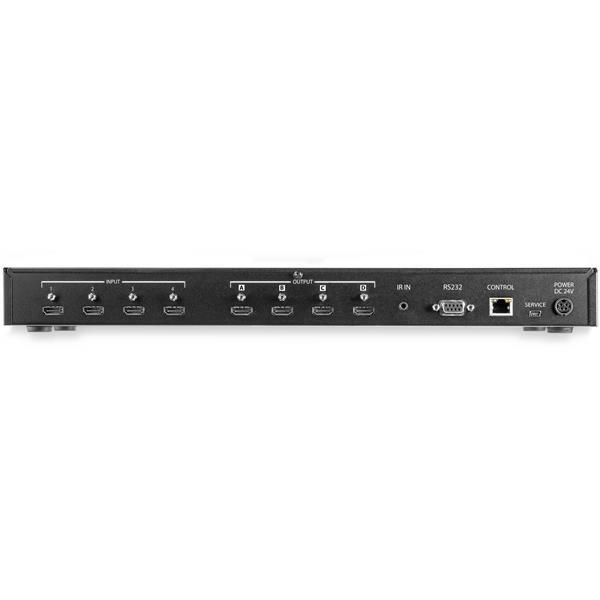

Four HDMI female inputs and four HDMI female outputs, plus DB-9 RS-232, RJ-45 Ethernet, infrared and USB Mini control/service connections.
What performance does VS424HD4K60 support?
Up to 3840 x 2160 at 60Hz, 4096 x 2160 at 24Hz, 18Gbps, HDR and 7.1-channel audio.
How is VS424HD4K60 installed or controlled?
Use front-panel buttons, IR remote and receiver, a WebGUI over RJ-45 or RS-232 serial control. Rack brackets are included.
What is included with VS424HD4K60?
Matrix switch, remote, IR receiver, two mounting brackets, universal ANZ-compatible power adapter and user manual.
What should I check before buying VS424HD4K60?
4K60 capability depends on every source, display and cable in the selected route supporting HDMI 2.0 bandwidth, colour format and content protection. This is matrix routing, not picture-in-picture.
What warranty applies to VS424HD4K60 in Australia?
This Australian version supplied by DeviceDeal carries the official StarTech.com 2 years manufacturer warranty in Australia. Retain your DeviceDeal tax invoice; eligibility and assessment are subject to StarTech terms.
(VS424HD4K60)
Features and highlights
- Independently routes four HDMI inputs across four HDMI outputs
- Supports 3840 x 2160 at 60Hz with 4:4:4 8-bit video and HDR
- HDMI 2.0 bandwidth up to 18Gbps with EDID management
- Front-panel, IR remote, WebGUI and RS-232 control
- Rack-mountable steel enclosure with brackets included
StarTech.com 4x4 HDMI Matrix Switch - 4K 60Hz
Product ID: VS424HD4K60
Video and audio
| Maximum UHD resolution | 3840 x 2160 at 60Hz |
|---|---|
| DCI resolution | 4096 x 2160 at 24Hz |
| Bandwidth | 18Gbps |
| Standard | HDMI 2.0; HDR |
| Audio | Up to 7.1 surround |
Connections and control
| Inputs | 4 x HDMI female |
|---|---|
| Outputs | 4 x HDMI female |
| Network control | RJ-45 WebGUI |
| Serial control | DB-9 RS-232 |
| Other control | Front panel and IR remote |
Power and warranty
| Power adapter | Included, 24V DC / 2.7A |
|---|---|
| Rack mountable | Yes |
| Compliance | TAA |
| Warranty | 2 Years |
| SKU | VS424HD4K60 |
| Barcode # | 65030880800 |
| Brand | Startech |
| Shipping Weight | 3.8000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.560m |
| Shipping Cubic | 0.002800000m3 |
2 Years StarTech.com warranty
Australian version supplied by DeviceDeal. Covered by the official StarTech.com manufacturer warranty in Australia for 2 years. Retain your DeviceDeal tax invoice. Warranty service is subject to StarTech terms, eligibility and product assessment.
Keep your proof of purchase: retain the DeviceDeal tax invoice supplied with your order.
