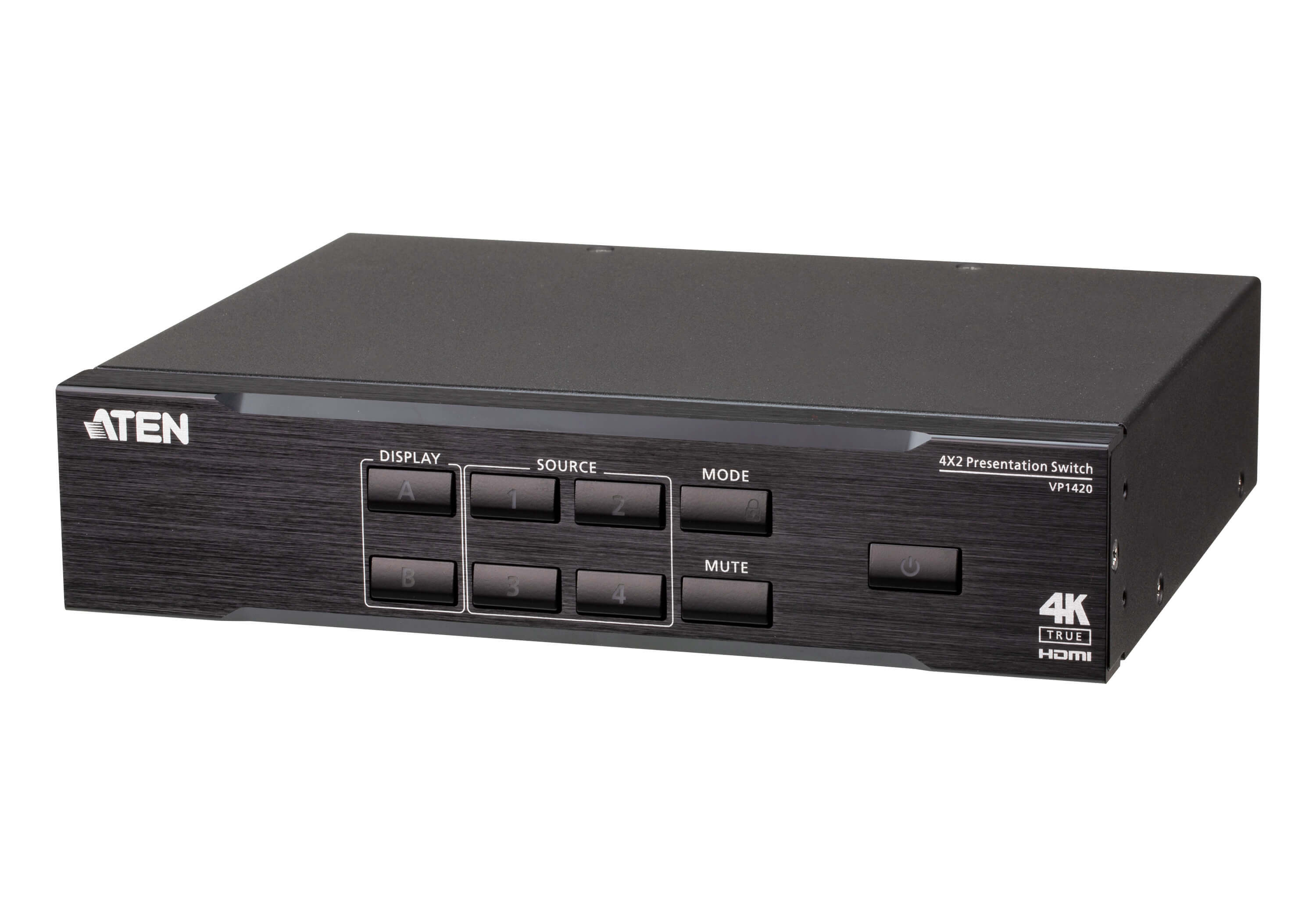

ATEN VP1420-AT-U 4 x 2 True 4K Presentation Matrix Switch
Model # VP1420-AT-U
-
SKU: VP1420-AT-U
- Pick Up Available
- Australian Warranty
- Checkout Securely
ATEN VP1420 is a multi-in-one presentation switch that integrates a video matrix, True 4K scaler, audio processor, and analog-to-digital converter functions into one compact device. With four analog/digital inputs to two HDMI outputs, it is designed to boost the impact of any professional presentation in small- to medium-size meeting rooms.
True 4K, HDR Visual Clarity
Supports resolutions up to 4096 x 2160 @ 60Hz (4:4:4) with HDR to deliver vivid content in every presentation.
Smooth AV Switching Scaled to Perfection
Connect up to 4 sources (3 HDMI, 1 VGA), smoothly switch between them and display contents scaled perfectly to True 4K and 1080p simultaneously.
Contact Us
Get a quote for this product or get in touch with our sales experts
Flexible Audio Embedding / De-Embedding
Supports stereo audio embedding and HDMI audio de-embedding to different audio outputs to ease adaptation to your preferred audio setup.
Versatile Control, Streamlined Operations
Control via front-panel pushbuttons, IR remote, web-based GUI and any control interface via RS-232, Ethernet, and Contact Closure to streamline your operations.
Talk to Our Experts
If you prefer to have ATEN contact you, please complete the form and a representative will be in touch with you shortly
Package Contents
- 1x VP1420 4 x 2 True 4K Presentation Matrix Switch
- 1x IR Receiver
- 1x IR Remote Control
- 2x 3-pole Terminal Blocks
- 2x 5-pole Terminal Blocks
- 1x Power Adaptor
- 1x VPK104 4-Key Contact Closure Remote Pad
- 4x 4-pole Terminal Blocks
- 1x User Instructions
(VP1420-AT-U)

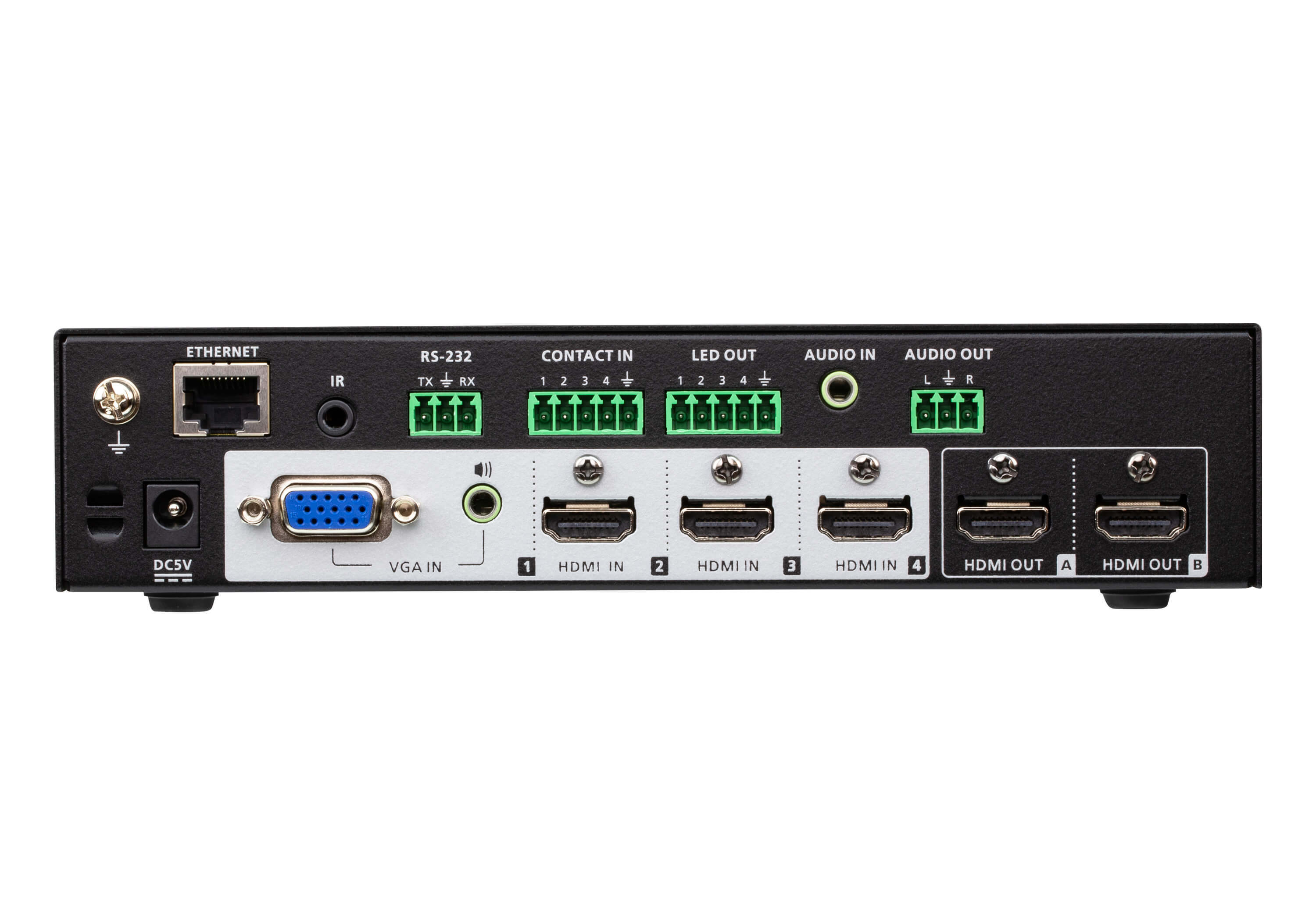

| Video Input | |
| Interfaces | 3 x HDMI Type A female (Black) 1 x VGA (HDB-15) Female (Blue) |
| Max. Distance | HDMI: 4K@60Hz (4:4:4) at 5m; 4K@30Hz at 10m; 1080p@60Hz at 15m VGA: 1080p@60Hz at 15m |
| Video Output | |
| Interfaces | 2 x HDMI Type A female (Black) |
| Max. Distance | HDMI: 4K@60Hz (4:4:4) at 5m; 4K@30Hz at 10m; 1080p@60Hz at 15m |
| Video | |
| Max. Resolution | HDMI: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) VGA: Up to 1080p@60Hz |
| Compliance | HDMI (3D, Deep Color, 4K); 4K HDR HDCP 2.2 Compatible; Consumer Electronics Control (CEC) |
| Audio | |
| Input | Stereo Audio (VGA): 1 x mini stereo Jack female (Green) Stereo Audio (HDMI): 1 x mini stereo Jack female (Green) |
| Output | Line Out (Unbalanced): 1 x Captive Screw Connector, 3-pole |
| Control | |
| RS-232 | 1 x Captive Screw Connector, 3-pole |
| IR | 1 x Mini Stereo Jack Female (Black) |
| Ethernet | 1 x RJ-45 Female (Silver) |
| Contact In | 1 x Captive Screw Connector, 5-pole |
| LED Out | 1 x Captive Screw Connector, 5-pole LED out power: +5 VDC, 0.2 A |

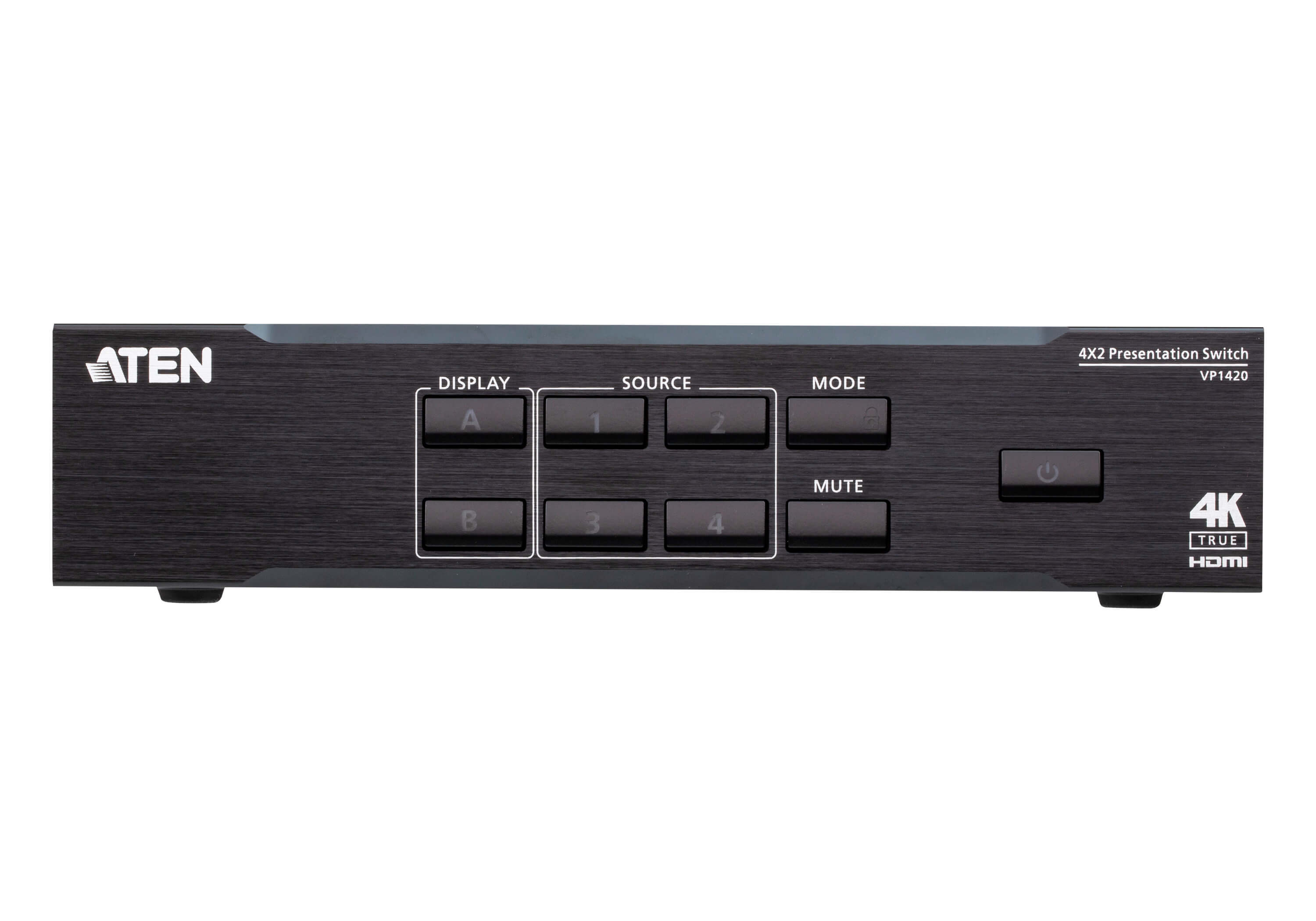

| Switches | |
| Power | 1 x Pushbutton (LED: Green / Orange) |
| Video Input Port Selection | 4 x Pushbutton (LED: Green) |
| Video Output Port Selection | 2 x Pushbutton (LED: Orange) |
| Selection | Mute: 1 x Pushbutton Mode / Unlock: 1 x Pushbutton |
| EDID Settings | EDID Mode: ATEN Default / Display A / Remix |
| Connectors | |
| Power | 1 x DC Jack (Black) |
| Power Consumption | DC5V:7.21W:38BTU |
| Environmental | |
| Operating Temperature | 0-40°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 1.09 kg ( 2.4 lb ) |
| Dimensions (L x W x H) | 20.00 x 16.05 x 4.40 cm (7.87 x 6.32 x 1.73 in.) |
| Carton Lot | 3 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| SKU | VP1420-AT-U |
| Barcode # | 672792010873 |
| Brand | ATEN |
| Shipping Weight | 1.0900kg |
