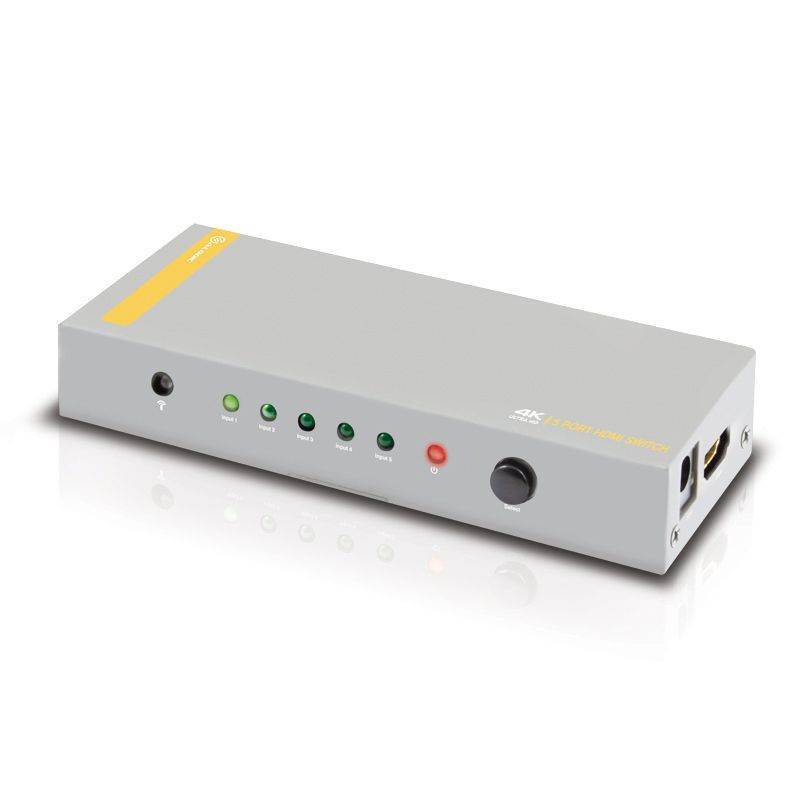

ALOGIC 5 Port HDMI 2.0 4K Switch with Remote Control
Model # HD4KSW05
-
SKU: HD4KSW05
- Pick Up Available
- Australian Warranty
- Checkout Securely
ALOGIC · Available from DeviceDeal
ALOGIC HD4KSW05 5-Port HDMI 2.0 4K Switch with Remote
A five-input HDMI 2.0 switch with one HDMI output, remote control, automatic and manual source selection, up to 3840 × 2160 at 60Hz video, HDCP 2.2 and 7.1-channel surround-sound wording.
Product overview
The HD4KSW05 connects up to five HDMI sources to one compatible HDMI display. It can switch automatically to the latest connected source, manually through the built-in button or by the included IR remote. Supplied five-port specifications list HDMI 2.0, HDCP 2.2, up to 3840 × 2160 at 60Hz, 7.1-channel surround sound, source and power LEDs, a dark-grey metal housing and 5V/1A power.
Buy with confidence from DeviceDeal
DeviceDeal is an authorised ALOGIC reseller in Australia. Purchase with the supplied manufacturer warranty and local DeviceDeal support.
Frequently asked questions
How many sources can be connected?
Up to five HDMI source devices can connect to one HDMI display.
How can the source be selected?
Automatically, with the built-in manual button or using the included IR remote.
What maximum resolution is listed?
Up to 3840 × 2160 at 60Hz.
Which standards are supplied?
HDMI 2.0 and HDCP 2.2.
Why are variant values mentioned?
The source combines three-port and five-port data; this entry uses the stated five-port dimensions and weight for HD4KSW05.
(HD4KSW05)
Key features
ALOGIC HD4KSW05 5-Port HDMI 2.0 4K Switch with Remote
A concise view of the supplied product features.
Product specifications
ALOGIC HD4KSW05 5-Port HDMI 2.0 4K Switch with Remote
| Brand | ALOGIC |
|---|---|
| Model | HD4KSW05 |
| Product type | 5-port HDMI switch |
| Inputs | 5 × HDMI |
| Output | 1 × HDMI |
| HDMI version | HDMI 2.0 |
| Content protection | HDCP 2.2 |
| Maximum resolution | 3840 × 2160 at 60Hz |
| Audio wording | 7.1-channel surround sound |
| Switching | Automatic to latest connected source; built-in manual button; IR remote |
| Indicators | Source and power LEDs |
| Power | 5V/1A |
| Housing | Dark-grey metal |
| Dimensions for five-port model | 123 × 51 × 20mm |
| Weight for five-port model | 154g |
| Source note | Shared description also contains three-port variant values |
| Warranty | 1 Year Manufacturer Warranty |
| SKU | HD4KSW05 |
| Barcode # | 9350784013767 |
| Brand | ALOGIC |
| Shipping Weight | 0.4400kg |
| Shipping Width | 0.052m |
| Shipping Height | 0.020m |
| Shipping Length | 0.123m |
| Shipping Cubic | 0.000128000m3 |
Warranty information
ALOGIC HD4KSW05 5-Port HDMI 2.0 4K Switch with Remote
1 Year Manufacturer Warranty
This product is supplied with a one-year manufacturer warranty. DeviceDeal is an authorised ALOGIC reseller in Australia.
