ATEN SKU VS381B-AT

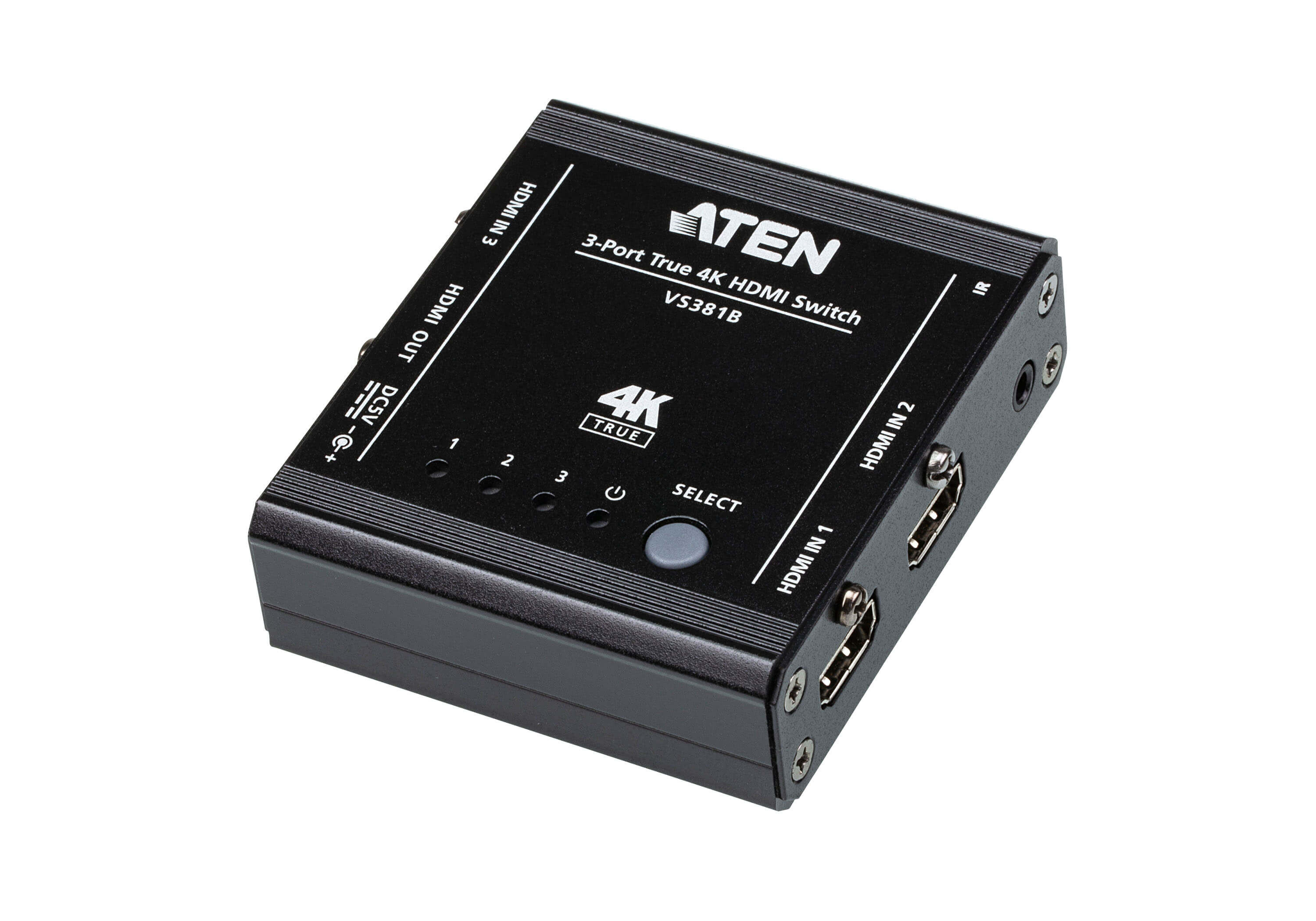

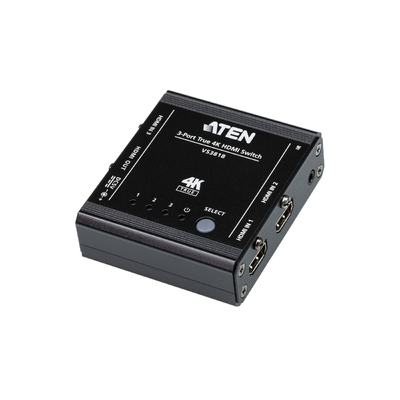

ATEN VS381B-AT 3-Port True 4K HDMI Switch

The ATEN VS381B-AT switches up to three HDMI sources to one HDMI display through automatic selection, front-panel controls or the included IR remote.

The source lists True 4K at 60Hz with 4:4:4 chroma, 18Gbps, HDR10+, Dolby Vision, HLG, HDCP 2.2 and 7.1-channel audio output.

3 HDMI inputsTrue 4K at 60Hz 4:4:4Auto switchingManufacturer warrantyDeviceDeal authorised ATEN reseller

ATEN VS381B-AT 3-Port True 4K HDMI Switch

Product overview

Three-source switching

Three HDMI sources can share one display through automatic or manual selection.

True 4K HDR

The supplied description lists 4096 x 2160 or 3840 x 2160 at 60Hz 4:4:4 and multiple HDR formats.

Flexible control

Front pushbuttons, automatic port selection, IR remote control and IR extension are stated.

Source review: The supplied record provides no separate structured specification table or warranty duration. Confirm exact connectors, physical details and the applicable ATEN warranty before purchase.

Frequently asked questions

How many HDMI sources can connect?

The source lists up to three HDMI input sources and one display output.

Which source-selection methods are stated?

Auto switching, front-panel pushbuttons and IR remote control are listed.

What maximum video format is stated?

Up to 4096 x 2160 or 3840 x 2160 at 60Hz with 4:4:4 chroma is listed.

Does it support HDR and 7.1 audio?

Yes. HDR10+, Dolby Vision, HLG and 7.1-channel audio output are stated.

What warranty applies?

The product is supplied under the applicable ATEN manufacturer warranty in Australia through DeviceDeal as an authorised ATEN reseller.

(VS381B-AT)

Features

ATEN VS381B-AT 3-Port True 4K HDMI Switch

Switching

3 HDMI inputs to 1 display
Automatic port selection
Front-panel pushbuttons
IR remote and extension

Video

True 4K at 60Hz 4:4:4
Up to 18Gbps
HDR10+, Dolby Vision and HLG
HDCP 2.2 compliant

Audio and package

7.1-channel audio output
LED status indication
USB-to-DC power cord
IR remote and receiver

Confirm cable, source and display capability for the intended True 4K HDR format.

Technical specifications

ATEN VS381B-AT 3-Port True 4K HDMI Switch

Product details
Brand	ATEN
Model / SKU	VS381B-AT
Product type	3-port True 4K HDMI switch
Functions stated
Inputs	Up to 3 HDMI sources
Output	1 HDMI display
Maximum resolution	4096 x 2160 / 3840 x 2160 at 60Hz, 4:4:4
Maximum distance stated	Up to 5m for the listed True 4K format
Maximum data rate	18Gbps
HDMI features	3D; Deep Color; 4K; HDR10+; Dolby Vision; HLG
HDCP	2.2 compliant
Audio	7.1-channel output stated
Selection and package
Source selection	Auto switching; front pushbuttons; IR remote
IR extension	Supported
Included	Switch; USB-to-DC power cord; IR remote; IR receiver; user instructions
Source limitation
Structured specifications	Not included in the supplied record
Details to confirm	Exact connectors, power, physical dimensions and environment

SKU	VS381B-AT
Barcode #	4710469340383
Brand	ATEN
Shipping Weight	0.1500kg
Shipping Width	0.025m
Shipping Height	0.072m
Shipping Length	0.079m

Warranty information

ATEN VS381B-AT 3-Port True 4K HDMI Switch

ATEN Manufacturer Warranty

DeviceDeal is an authorised ATEN reseller. This product is supplied under the applicable ATEN manufacturer warranty in Australia. Please contact DeviceDeal to confirm the warranty period and conditions for SKU VS381B-AT.
