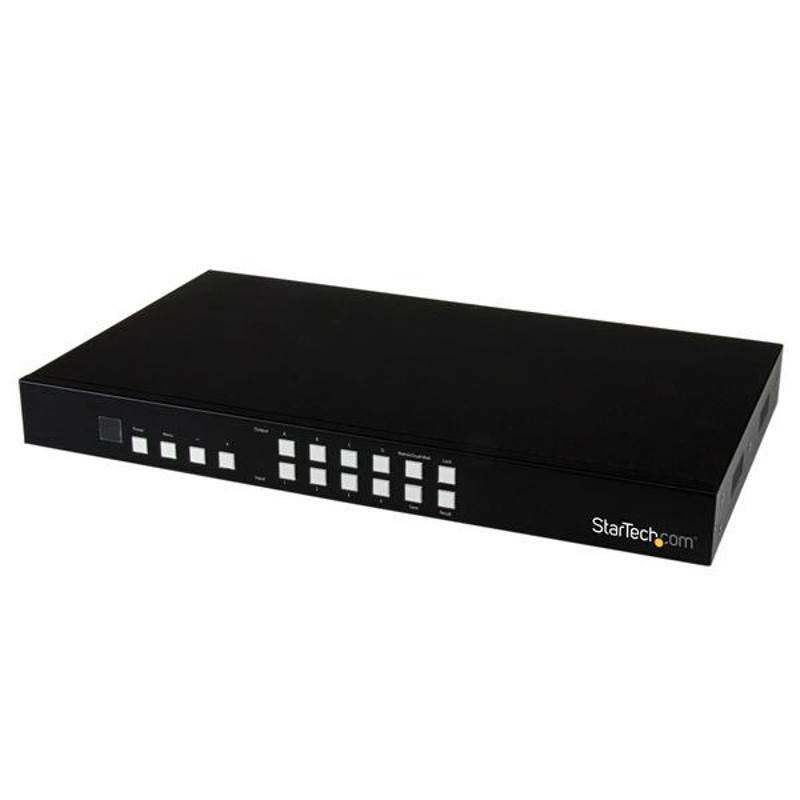

StarTech 4x4 HDMI Matrix Switch with Picture-and-Picture - VS424HDPIP
Model # VS424HDPIP
-
SKU: VS424HDPIP
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech.com 4x4 HDMI Matrix Multiviewer and Video Wall
A 4x4 HDMI matrix switch that can route four sources across four displays or combine multiple sources on each screen using matrix, dual, quad and 1x4 video-wall modes up to 1920 x 1200 or 1080p.
Why choose VS424HDPIP?
Routes four HDMI inputs across four HDMI outputs.
Combines up to four sources on one display with picture-and-picture.
Matrix 1x1, dual 2x1, quad 4x1 and video-wall 1x4 modes.
Best-fit applications
- Monitor multiple security or operational sources on one screen
- Build multi-source boardroom or signage layouts
- Create a 1x4 HDMI video wall or route sources independently
Australian warranty assurance
Australian version supplied by DeviceDeal. Covered by the official StarTech.com manufacturer warranty in Australia for 2 years. Retain your DeviceDeal tax invoice. Warranty service is subject to StarTech terms, eligibility and product assessment.
Information verified against the supplied DeviceDeal source workbook, the exact DeviceDeal product page and exact-SKU official StarTech.com product data.
Read DeviceDeal buying guidesFrequently asked questions
What does StarTech.com VS424HDPIP do?
A 4x4 HDMI matrix switch that can route four sources across four displays or combine multiple sources on each screen using matrix, dual, quad and 1x4 video-wall modes up to 1920 x 1200 or 1080p.
Which equipment works with VS424HDPIP?
It accepts four HDMI sources and four HDMI displays, with independent matrix or combined layouts at compatible resolutions up to 1920 x 1200 or 1080p.
What inputs and outputs does VS424HDPIP provide?
Four HDMI female inputs and four HDMI female outputs, plus DB-9 RS-232, RJ-45 network and infrared control connections.
What performance does VS424HDPIP support?
Maximum resolution is 1920 x 1200, with 1080p support and up to 7.1-channel audio.
How is VS424HDPIP installed or controlled?
Use front-panel controls, the included IR remote, RS-232 serial or Telnet over the local TCP/IP network.
What is included with VS424HDPIP?
Matrix switch, remote control, two mounting brackets, universal ANZ-compatible power adapter, software disc and instruction manual.
What should I check before buying VS424HDPIP?
This model supports up to 1920 x 1200 or 1080p and does not support 4K. Confirm the desired PAP or video-wall layout and common display resolution before deployment.
What warranty applies to VS424HDPIP in Australia?
This Australian version supplied by DeviceDeal carries the official StarTech.com 2 years manufacturer warranty in Australia. Retain your DeviceDeal tax invoice; eligibility and assessment are subject to StarTech terms.
(VS424HDPIP)
Features and highlights
- Routes four HDMI inputs across four HDMI outputs
- Combines up to four sources on one display with picture-and-picture
- Matrix 1x1, dual 2x1, quad 4x1 and video-wall 1x4 modes
- Supports resolutions up to 1920 x 1200 or 1080p
- Remote operation through RS-232, Telnet over TCP/IP or IR
StarTech.com 4x4 HDMI Matrix Multiviewer and Video Wall
Product ID: VS424HDPIP
Video and layouts
| Maximum resolution | 1920 x 1200 / 1080p |
|---|---|
| Matrix mode | 1x1 |
| Dual mode | 2x1 |
| Quad mode | 4x1 |
| Video-wall mode | 1x4 |
| Audio | Up to 7.1 surround |
Connections and control
| Inputs | 4 x HDMI female |
|---|---|
| Outputs | 4 x HDMI female |
| Network control | RJ-45, Telnet over TCP/IP |
| Serial control | DB-9 RS-232 |
| Other control | Front panel and IR remote |
Power and warranty
| Power adapter | Included, 12V DC / 3A |
|---|---|
| Power consumption | 36W |
| Compliance | TAA |
| Warranty | 2 Years |
| SKU | VS424HDPIP |
| Barcode # | 65030858403 |
| Brand | Startech |
| Shipping Weight | 4.3400kg |
| Shipping Width | 0.420m |
| Shipping Height | 0.140m |
| Shipping Length | 0.577m |
| Shipping Cubic | 0.033928000m3 |
2 Years StarTech.com warranty
Australian version supplied by DeviceDeal. Covered by the official StarTech.com manufacturer warranty in Australia for 2 years. Retain your DeviceDeal tax invoice. Warranty service is subject to StarTech terms, eligibility and product assessment.
Keep your proof of purchase: retain the DeviceDeal tax invoice supplied with your order.
