Four-source switching
Four HDMI Type-A inputs connect to one HDMI Type-A display output.
Aten VS481C 4-Port True 4K HDMI Switch
Model # VS481C
-
SKU: VS481C
Don't pay: $139.00
$130.00
SAVE $9.00 (6%)
Stock Availability
🟢Live
In Stock · Call to confirm
Pickup from Vermont, VIC
Allow 1–2 business days for stock transfer
Allow 1–2 business days for stock transfer
- Pick Up Available
- Australian Warranty
- Checkout Securely
ATEN SKU VS481C

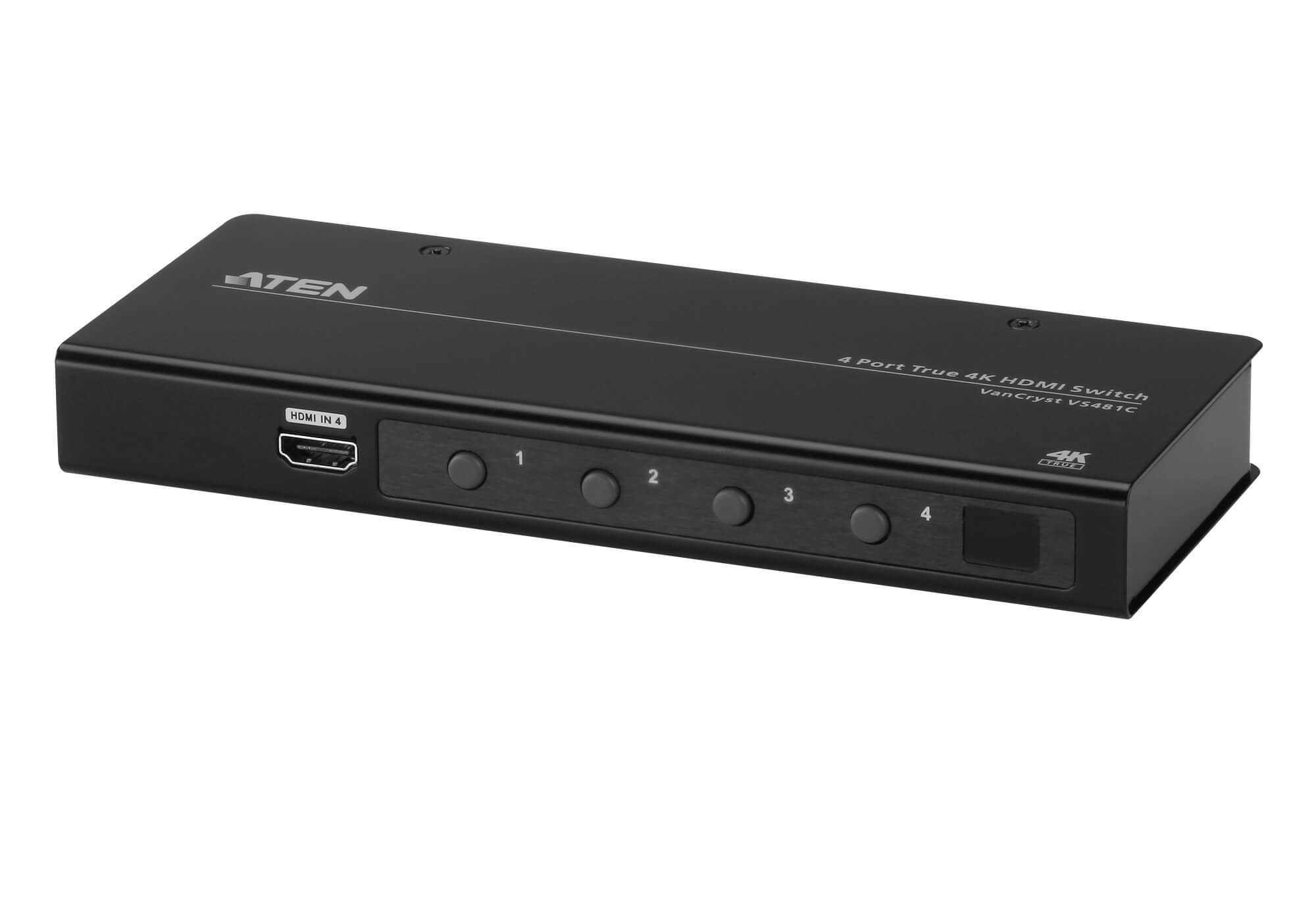

ATEN VS481C 4-Port True 4K HDMI Switch with RS-232
The ATEN VS481C switches four HDMI source devices to one HDMI display and supports True 4K video up to 4096 x 2160 at 60Hz with 4:4:4 chroma.
HDMI 2.0, HDCP 2.2, a built-in bi-directional RS-232 serial port and rack-mountable installation are listed in the supplied record.
4 HDMI inputsTrue 4K at 60Hz 4:4:4Bi-directional RS-2322-year warrantyDeviceDeal authorised ATEN reseller
Product overview
True 4K at 60Hz
The supplied source lists 4096 x 2160 or 3840 x 2160 at 60Hz with 4:4:4 chroma.
RS-232 integration
A built-in bi-directional RS-232 serial port supports compatible control-system integration.
Source review: The supplied record is a concise specification summary without a separate structured table. Physical dimensions, power requirements and environmental limits require confirmation.
Frequently asked questions
How many HDMI inputs are provided?
Four HDMI Type-A female inputs are listed.
How many display outputs are provided?
One HDMI Type-A female output is listed.
What maximum resolution is stated?
Up to 4096 x 2160 or 3840 x 2160 at 60Hz with 4:4:4 chroma is listed.
Does it support RS-232 control?
Yes. A built-in bi-directional RS-232 serial port is stated.
What warranty is supplied?
The source lists a two-year limited ATEN manufacturer warranty.
(VS481C)
Features
ATEN VS481C 4-Port True 4K HDMI Switch with RS-232
HDMI switching
- 4 HDMI Type-A inputs
- 1 HDMI Type-A output
- Maximum distance stated: 3m
- Rack mountable
True 4K video
- 4096 x 2160 at 60Hz 4:4:4
- 3840 x 2160 at 60Hz 4:4:4
- HDMI 2.0 with 3D and Deep Color
- HDCP 2.2 compliant
Control
- Built-in RS-232
- Bi-directional serial control
- Professional AV integration
Confirm the 3m source-to-display cable arrangement and control-system compatibility for the intended installation.
Technical specifications
ATEN VS481C 4-Port True 4K HDMI Switch with RS-232
| Product details | |
|---|---|
| Brand | ATEN |
| Model / SKU | VS481C |
| Product type | 4-port True 4K HDMI switch |
| Video and connections | |
| Inputs | 4 x HDMI Type-A female, black |
| Output | 1 x HDMI Type-A female, black |
| Maximum resolution | 4096 x 2160 / 3840 x 2160 at 60Hz, 4:4:4 |
| Maximum distance stated | 3m |
| HDMI | 2.0; 3D; Deep Color; 4K |
| HDCP | 2.2 compliant |
| Control and installation | |
| Serial control | Built-in bi-directional RS-232 port |
| Mounting | Rack mountable |
| Source limitation | |
| Details to confirm | Power requirements, physical dimensions and environmental limits |
| SKU | VS481C |
| Barcode # | 672792008221 |
| Brand | Aten |
| Shipping Weight | 0.4700kg |
Warranty information
ATEN VS481C 4-Port True 4K HDMI Switch with RS-232
2-Year Limited ATEN Manufacturer Warranty
DeviceDeal is an authorised ATEN reseller. This product is covered by a two-year limited ATEN manufacturer warranty in Australia, as listed in the supplied product information.
