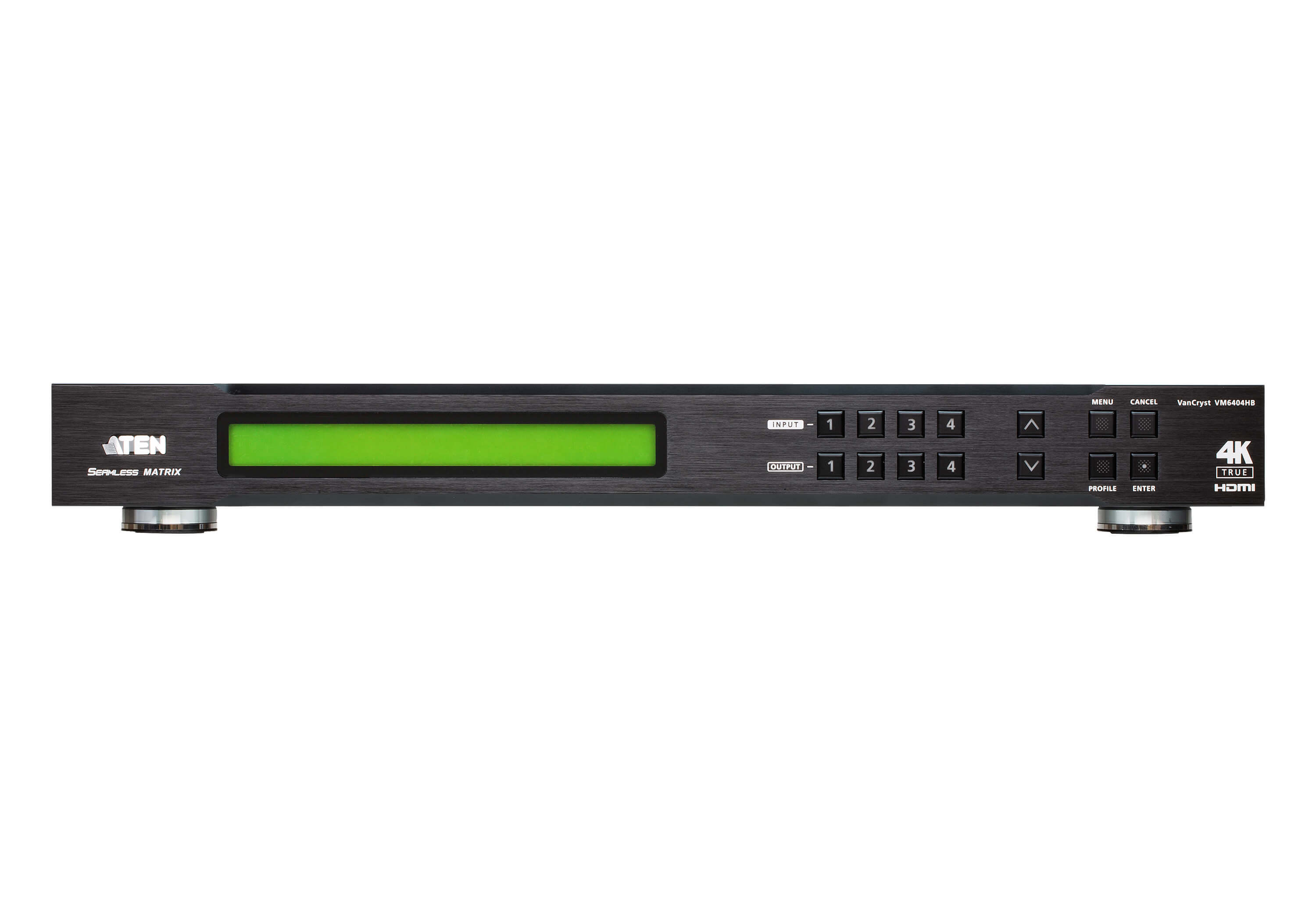

ATEN VM6404HB-AT-U 4 x 4 True 4K HDMI Matrix Switch with Scaler
Model # VM6404HB-AT-U
-
SKU: VM6404HB-AT-U
- Pick Up Available
- Australian Warranty
- Checkout Securely
True 4K Pro AV solutions with High Dynamic Range (HDR) technology is the trend of high-definition video that delivers the ultimate visual experience with exceptional sharp and vibrant video quality. ATEN’s VM6404HB True 4K HDMI Matrix Switch with Scaler is compatible with the latest True 4K video resolutions of 4096 x 2160 / 3840 x 2160@60Hz (4:4:4) and HDR, guaranteeing crystal-clear images across four displays.
The VM6404HB supports 4K@60Hz, HDMI 2.0, and HDCP 2.2 and features Seamless Switch™ that employs an FPGA matrix architecture that ensures continuous video streams, real-time control, and stable signal transmissions. With a built-in high-performance scaler, the VM6404HB easily converts various input resolutions into various output display resolutions, giving viewers the best video and picture quality across all displays. The switch integrates video wall functionality with an easy-to-use web GUI that lets you create 8 connection profiles that can be customized into different video wall layouts.
The VM6404HB is an ideal solution for applications that require multiple HDMI displays with multiple HDMI sources to be conveniently set up – such as for stage presentations, digital classroom, video conference rooms, and any installation that requires real-time synchronization.
Package Contents
- 1x VM6404HB 4 x 4 True 4K HDMI Matrix Switch with Scaler
- 1x Power Cord
- 1x IR Remote Control
- 1x IR Receiver
- 1x Mounting Kit
- 1x User Instructions
(VM6404HB-AT-U)
| Video Input | |
| Interfaces | 4 x HDMI Type A Female (Black) |
| Impedance | 100 ? |
| Max. Distance | 5.0 m |
| Video Output | |
| Interfaces | 4 x HDMI Type A Female (Black) |
| Impedance | 100 ? |
| Max. Distance | 5.0 m |
| Video | |
| Max. Data Rate | 18.0 Gbps (6.0 Gbps per lane) |
| Max. Pixel Clock | 600 MHz |
| Compliance | HDMI (3D, Deep Color, 4K); HDCP 2.2 Compatible; Consumer Electronics Control (CEC) |
| Max. Resolution | Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) |
| Max. Distance | Up to 5.0 m |
| Audio | |
| Output | 1x Mini Stereo Jack Female |
| Control | |
| RS-232 | Connector: 1 x DB-9 Female (Black); Baud Rate: 19200, Data Bits: 8, Stop Bits: 1, Parity: No, Flow Control: No |
| IR | 1 x Mini Stereo Jack Female (Black) |
| Ethernet | 1 x RJ-45 Female |
| EDID Settings | EDID Mode: Default / Port 1 / Remix / Customized (EDID Wizard Support) |
| Connectors | |
| Power | 1 x 3-prong AC Socket |
| Power | |
| Maximum Input Power Rating | 100-240 VAC;50-60Hz;1.0A |
| Power Consumption | AC110V:43.7W:205BTU AC220V:43.1W:202BTU |
| Environmental | |
| Operating Temperature | 0-40°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 3.52 kg ( 7.75 lb ) |
| Dimensions (L x W x H) | 43.24 x 26.23 x 4.40 cm (17.02 x 10.33 x 1.73 in.) |
| Carton Lot | 1 pc |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| SKU | VM6404HB-AT-U |
| Brand | ATEN |
| Shipping Weight | 4.7200kg |
