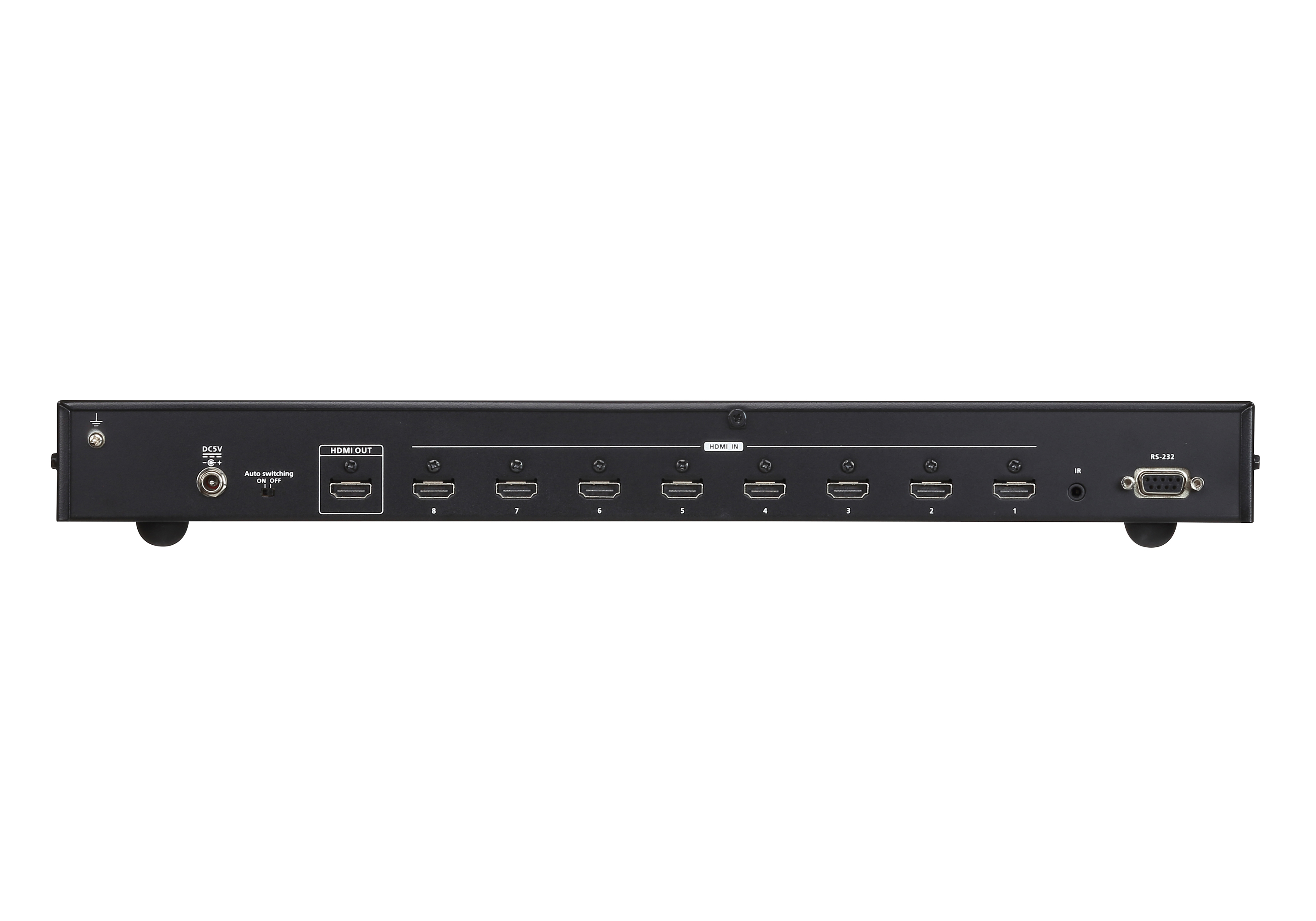

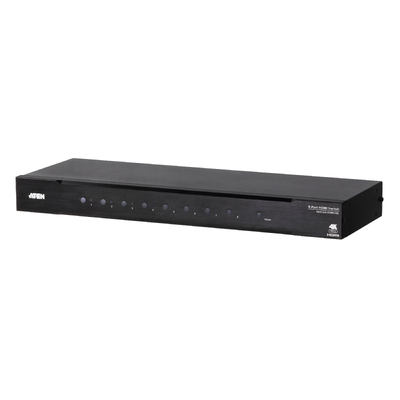

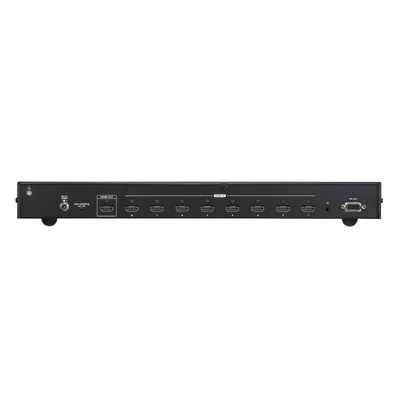

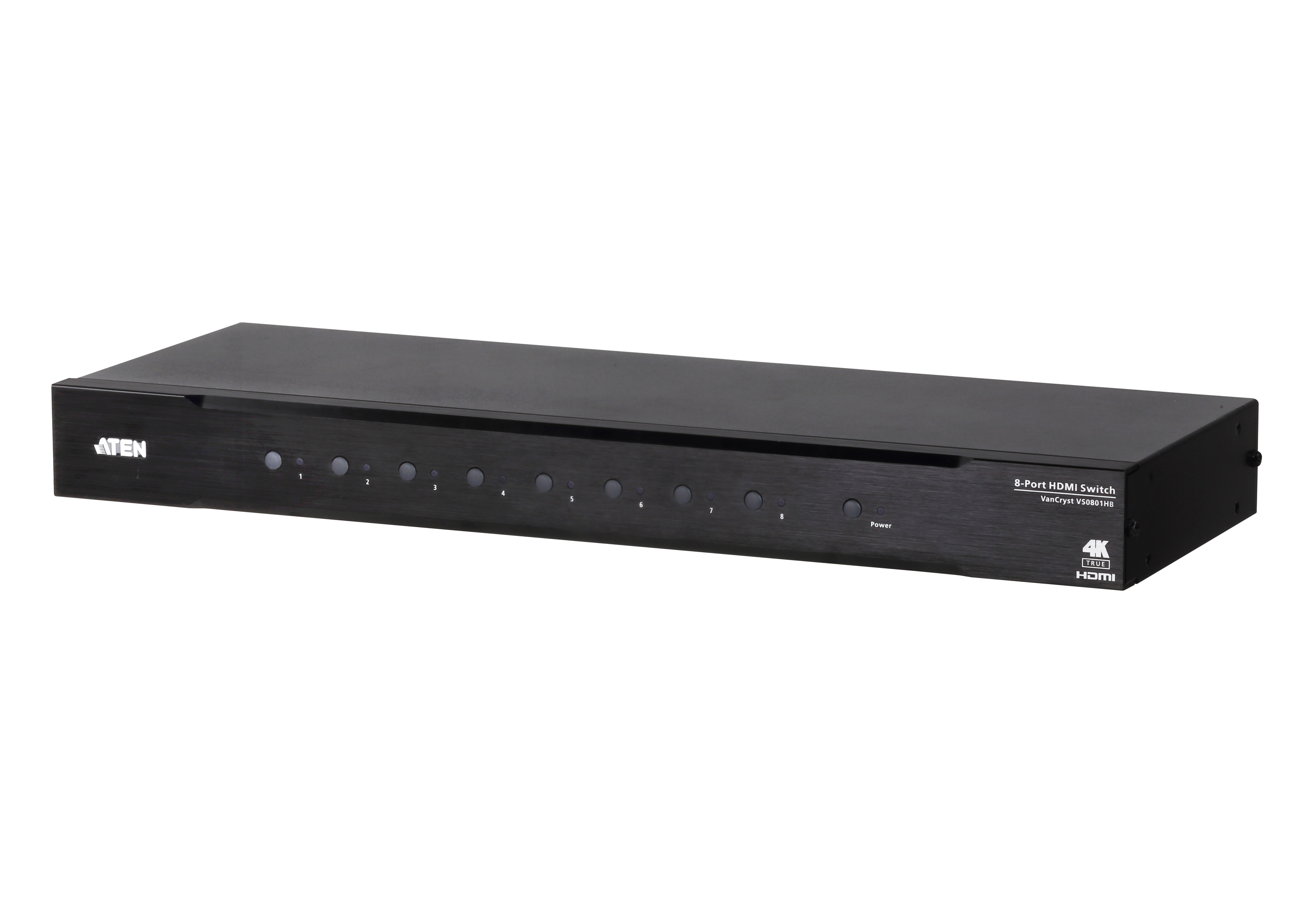

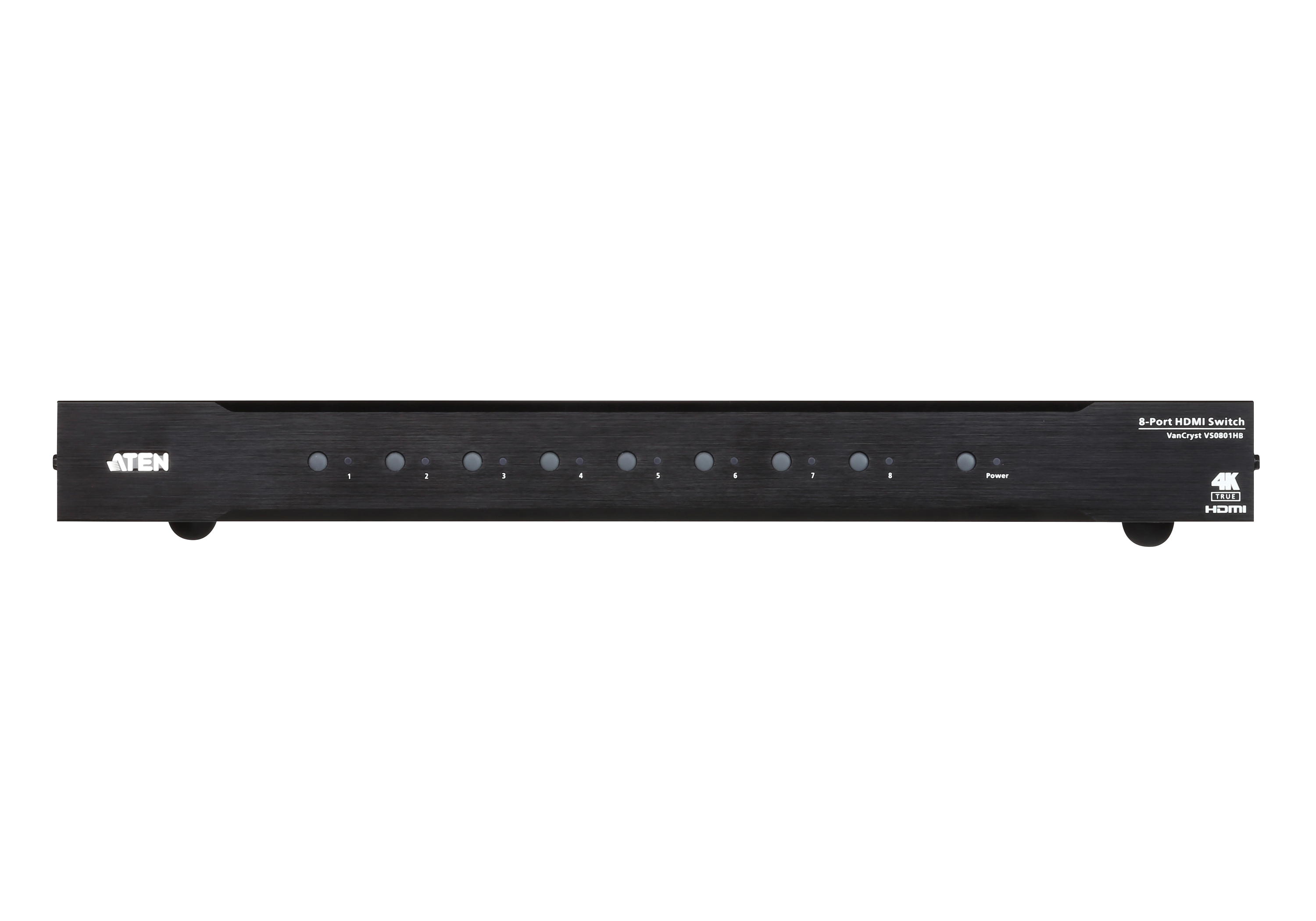

ATEN VS0801HB-AT-U 8-Port True 4K HDMI Switch
Model # VS0801HB-AT-U
-
SKU: VS0801HB-AT-U
- Pick Up Available
- Australian Warranty
- Checkout Securely
The ATEN VS0801HB is designed for applications that require the routing of 8 sources to one compatible display device. It supports video resolutions up to True 4K (4096 x 2160 @ 60Hz 4:4:4), data rates up to 18 Gbps, 3D, Deep Color up to 12-bit, and HD lossless audio formats. The VS0801HB features Auto Switching modes for auto port selection. Multiple convenient control options include front panel pushbuttons, bi-directional RS-232, IR, and auto switch, allowing for easy integration.
Engineered to meet today’s demand of True 4K signal transmission and user-oriented design, the ATEN VS0801HB is a powerful solution for a wide range of settings, such as home theater, meeting rooms, trade shows, and shopping centers.
Package Contents
- 1x VS0801HB 8-port True 4K HDMI Switch
- 1x IR Remote Control Unit
- 1x IR Receiver Cable
- 1x Power Adapter
- 1x Rack Mounting Kit
- 1x User Instructions
(VS0801HB-AT-U)
| Switches | |
| DIP | 1 x Auto Switch ON / OFF |
| Video Input | |
| Interfaces | 8 x HDMI Type A Female (Black) |
| Impedance | 100 ? |
| Max. Distance | 5M at 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) |
| Video Output | |
| Interfaces | 1 x HDMI Type A Female (Black) |
| Impedance | 100 ? |
| Max. Distance | 5M at 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) |
| Video | |
| Max. Data Rate | 18 Gbps (6 Gbps Per Lane) |
| Max. Pixel Clock | 600 MHz |
| Compliance | HDMI 2.0 (3D, Deep Color) HDCP 2.2 Consumer Electronics Control (CEC) |
| Max. Resolution | Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) |
| Max. Distance | 5M at 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) |
| Control | |
| RS-232 | Connector: 1 x DB-9 Female (Black) Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No |
| IR | 1 x Mini Stereo Jack Female (Black) |
| Connectors | |
| Power | 1 x DC Jack (with locking) |
| Power Consumption | DC5.3V:3.73W:17BTU |
| Environmental | |
| Operating Temperature | 0 - 40°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 2.14 kg ( 4.71 lb ) |
| Dimensions (L x W x H) | 43.72 x 15.83 x 4.40 cm (17.21 x 6.23 x 1.73 in.) |
| Carton Lot | 3 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| SKU | VS0801HB-AT-U |
| Barcode # | 4719264646300 |
| Brand | ATEN |
| Shipping Weight | 2.1400kg |
