Brateck · LDT84-C024P-B

Brateck LDT84-C024P-B Dual Pole-Mounted Mechanical-Spring Monitor Arm

A dual-screen pole-mounted mechanical-spring arm for 17-inch to 35-inch monitors, including curved screens, with top-side clamp or grommet installation.

Two 1735-inch monitors212 kg per flat screenTop-side installation

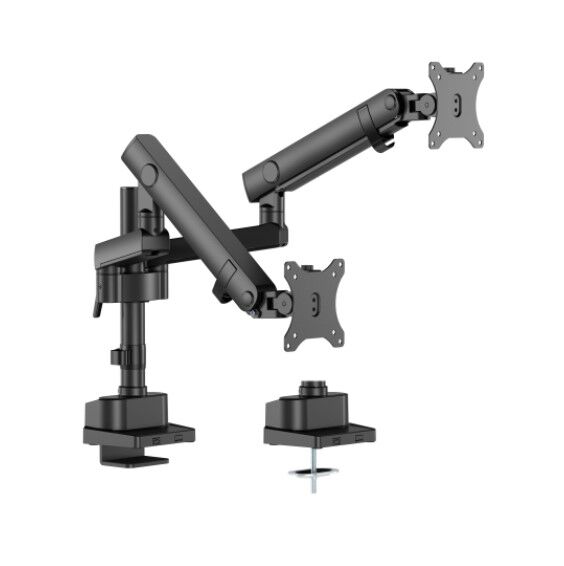

Brateck LDT84-C024P-B dual pole-mounted mechanical-spring monitor arm

Product highlights

Spring-tension adjustment

The built-in spring-tension mechanism supports weight adjustment for each screen.

Free tilting and swivelling

Free-tilting arms and swivel movement support flexible viewing positions.

Top-side installation

The mount installs entirely from above the desktop using the supplied clamp or grommet option.

Quick-release and cable management

Detachable VESA plates support installation, while built-in cable management keeps cords organised.

Australian warranty confidence

Purchase from an authorised reseller

DeviceDeal is an authorised reseller of Brateck products. This product is supplied under the Brateck manufacturer's warranty in Australia.

Keep your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to the manufacturer's terms, eligibility requirements and product assessment.

Frequently asked questions

What monitor sizes fit the Brateck LDT84-C024P-B?

It supports two 17-inch to 35-inch monitors, including curved screens.

What is the weight range per screen?

The supplied range is 212 kg for a flat screen and 211 kg for a curved screen.

How is the arm installed?

It installs from above the desktop using the supplied clamp or grommet option.

What is the full arm extension?

The supplied full extension is 514 mm (20.2 inches).

What warranty applies?

DeviceDeal is an authorised Brateck reseller, and LDT84-C024P-B is supplied under the Brateck manufacturer's warranty in Australia.

(LDT84-C024P-B)

Features and highlights

Dual-screen support

Fits two 17-inch to 35-inch monitors, including curved screens.

Weight capacity

212 kg per flat screen; 211 kg per curved screen.

VESA support

75 × 75 mm and 100 × 100 mm.

Adjustment ranges

Tilt +45° to -45°; swivel +90° to -90°; screen rotation +180° to -180°.

Reach and pole height

514 mm full arm extension and 362 mm pole height.

Installation features

Top-side clamp or grommet installation, quick-release VESA plates and cable management.

Technical specifications

Product details

Brand	Brateck
Model	LDT84-C024P-B
Product category	Mechanical-spring monitor arm
Rank	Standard
Materials	Aluminium; steel; plastic
Surface finish	Powder coating
Colour	Matte black

Display support

Screen quantity	2
Screen size	1735 inches
Curved-monitor support	Yes
Weight capacity per flat screen	212 kg (4.426.4 lb)
Weight capacity per curved screen	211 kg (4.424.2 lb)
VESA compatibility	75 × 75 mm; 100 × 100 mm

Adjustment

Tilt range	+45° to -45°
Swivel range	+90° to -90°
Screen rotation	+180° to -180°
Full arm extension	514 mm (20.2 inches)
Pole height	362 mm (14.3 inches)

Physical and installation

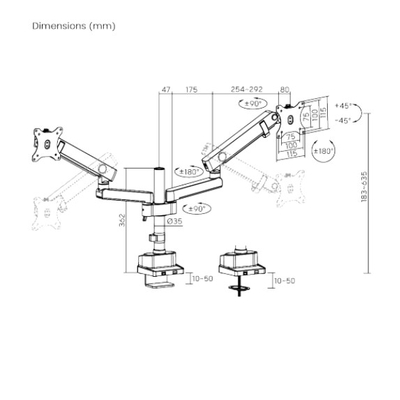

Dimensions	1066 × 120 × 697 mm (42 × 4.7 × 27.4 inches)
Installation	Clamp; grommet
Installation direction	Entirely from above the desktop
Suggested desktop thickness clamp	1050 mm (0.392 inches)
Suggested desktop thickness grommet	1050 mm (0.392 inches)
Quick-release VESA plate	Yes
Cable management	Yes

Packaging

Accessory kit package	Normal / ziplock polybag; compartment polybag

SKU	LDT84-C024P-B
Barcode #	6956745180757
Brand	BRATECK
Shipping Weight	5.6300kg
Shipping Width	0.090m
Shipping Height	0.432m
Shipping Length	0.290m

Warranty information

Manufacturer warranty in Australia

DeviceDeal is an authorised reseller of Brateck products. Brateck LDT84-C024P-B Dual Pole-Mounted Mechanical-Spring Monitor Arm is supplied under the Brateck manufacturer's warranty in Australia. Retain the DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims remain subject to the manufacturer's warranty terms, eligibility requirements and product assessment.
