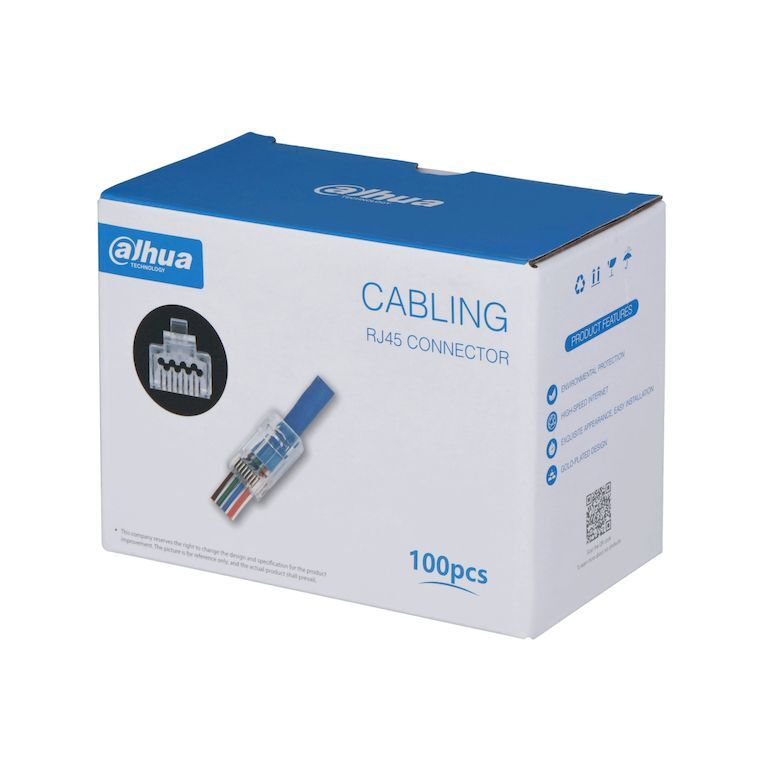

Material Material PC + brass Gold Plating Thickness 15U" Flammability Rating UL94V-2 Electrical Operating Voltage 150 VAC RMS Operating Current 1.5 AMP Contact Resistance ? 20 m? Insulation Resistance ?1000 M?@500 VDC Withstands Voltage between Terminals 1000 VDC/VAC PEAK @0.5 mA 50 Hz or 60 Hz 1 Minute Mechanical Retention Strength 50 N for 60 s ± 5 s Lifespan 750 times Insertion Force ? 30 N Environmental Operating Temperature –25 °C to +55 °C (–13 °F to +131 °F) Storage Temperature –10 °C to +40 °C (+14 °F to +104 °F) Storage Humidity < 80% Storage Time 12 months Structural Single Strand Cable Diameter 21 AWG–23 AWG Single Strand Insulated Cable Diameter 1.09 mm–1.20 mm (0.043"–0.047") Outer Sheath Diameter ? 6.4 mm (0.25") Packaging Dimensions 120 mm × 65 mm × 90 mm (4.72" × 2.55" × 3.54") Transport Package Dimensions 500 mm × 350 mm × 270 mm (19.69" × 13.78" × 10.63") Packaging Method 100 pcs in 1 carton, and 50 cartons in 1 package Net Weight 0.14 kg (0.31 lb) Gross Weight 0.18 kg (0.40 lb)
