Tycon Power • TP-DC-1256GD-BT

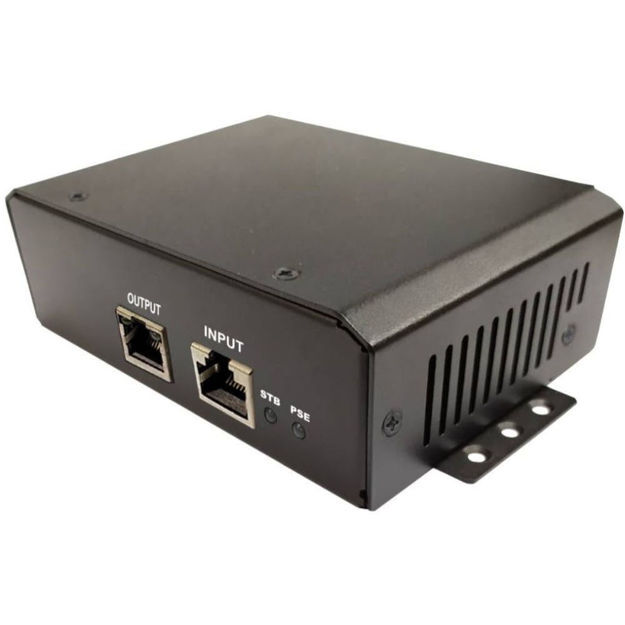

Tycon Power TP-DC-1256GD-BT 10-60VDC to 56V 70W 4-Pair 5GbE 802.3bt PoE Injector

The Tycon Power TP-DC-1256GD-BT accepts a 10-60VDC input and supplies up to 70W of 56V IEEE 802.3bt PoE across all four pairs, with data throughput up to 5 Gigabit.

10-60VDC input 56V 802.3bt 70W output 4-pair power Up to 5Gbps

Product highlights

Features and capabilities

Verified product information is organised below to support faster comparison and more confident installation planning.

DC-to-DC PoE conversion

The TP-DC-1256GD-BT converts the stated 10-60VDC DC input for delivery through its integrated PoE output.

PoE output

The output is specified as 56VDC IEEE 802.3bt PoE.

Power capacity

The exact-model output rating is stated as 70W.

Ethernet data path

The supported data rate is identified as Up to 5 Gigabit.

4-pair (8-wire) power delivery

The PoE output uses 4-pair (8-wire) according to the exact product information.

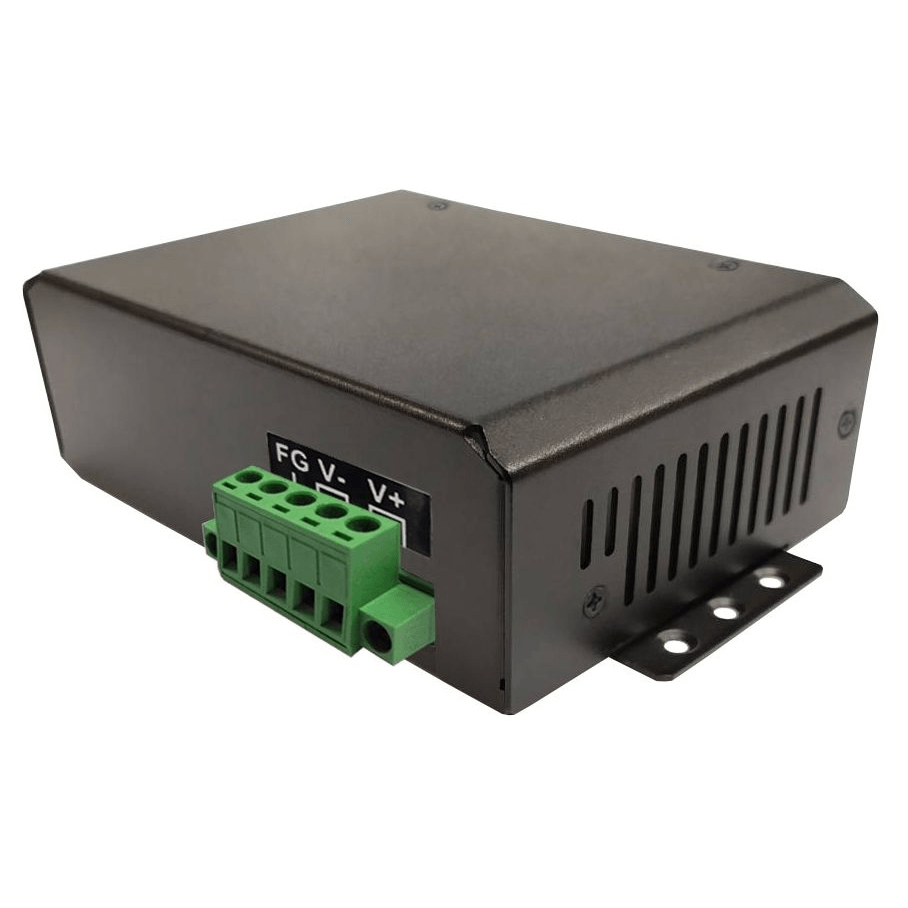

Dual DC inputs

Two DC inputs are provided for connecting two power sources, such as primary and backup sources.

Low-voltage disconnect

A low-voltage disconnect function is stated for battery-powered installations.

Electrical protection

Short-circuit, over-current and reverse/over-voltage protection; surge and overload protection are also stated.

?

Authorised reseller and manufacturer warranty

DeviceDeal is an authorised reseller of Tycon Power. This product is supplied with the applicable Tycon Power manufacturer warranty in Australia, subject to the manufacturer's terms, eligibility requirements and product assessment.

Frequently asked questions

Before you buy

What does the TP-DC-1256GD-BT do?

The Tycon Power TP-DC-1256GD-BT accepts a 10-60VDC input and supplies up to 70W of 56V IEEE 802.3bt PoE across all four pairs, with data throughput up to 5 Gigabit.

What DC input range is required?

The specified DC input is 10-60VDC.

What PoE output is provided?

The output is 56VDC IEEE 802.3bt PoE with a stated maximum of 70W.

What network speed is supported?

The product information identifies Up to 5 Gigabit data support.

How many Ethernet pairs carry PoE power?

The product is specified for 4-pair (8-wire) power delivery.

Can two DC power sources be connected?

Yes. Two DC inputs are provided for primary and backup power-source arrangements.

Is it backward compatible with earlier PoE standards?

The manufacturer states that it is backward compatible with IEEE 802.3at devices.

What warranty applies?

DeviceDeal is an authorised reseller of Tycon Power. This product is covered by the applicable Tycon Power manufacturer warranty in Australia, subject to the manufacturer's terms and product assessment. A specific warranty duration is not stated in the verified information.

(TP-DC-1256GD-BT)

Technical specifications

Tycon Power TP-DC-1256GD-BT 10-60VDC to 56V 70W 4-Pair 5GbE 802.3bt PoE Injector

Product details
BrandTycon Power
ModelTP-DC-1256GD-BT
Product typeDC-to-DC PoE injector / converter
PoE output ports1
Power and PoE
DC input10-60VDC
PoE output voltage56VDC
PoE output typeIEEE 802.3bt PoE
Maximum output power70W
Powered pairs4-pair (8-wire)
Networking
Network data rateUp to 5 Gigabit
Protection and construction
Dual DC inputsYes
Input/output isolationYes
Low-voltage disconnectYes
Protection featuresShort-circuit, over-current and reverse/over-voltage protection; surge and overload protection are also stated.
Operating temperature-40°C to 70°C
Housing materialMetal
DIN-rail mountingDIN-rail mounting kit included
SKU TP-DC-1256GD-BT
Brand TYCON POWER
Shipping Weight 0.2000kg

DeviceDeal authorised reseller

Tycon Power manufacturer warranty

DeviceDeal is an authorised reseller of Tycon Power. TP-DC-1256GD-BT is supplied with the applicable Tycon Power manufacturer warranty in Australia. Warranty coverage and claims remain subject to the manufacturer’s current terms, eligibility requirements and product assessment.

Warranty coverageApplicable manufacturer warranty
Proof of purchaseRetain the DeviceDeal tax invoice or order record.
AssessmentClaims are reviewed under the manufacturer’s warranty process.
Warranty service does not guarantee automatic approval, replacement or on-site support. Please keep the product model and serial details available when requesting assistance.

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

Tycon Power TP-DC-1256GD-BT 10-60VDC to 56V 70W 4-Pair 5GbE 802.3bt PoE Injector

Model # TP-DC-1256GD-BT

  • SKU: TP-DC-1256GD-BT

$658.00
Sold Out
