Wi-Fi 6 performance
Supports 3Gbps aggregate wireless throughput across 2.4GHz and 5GHz radios.

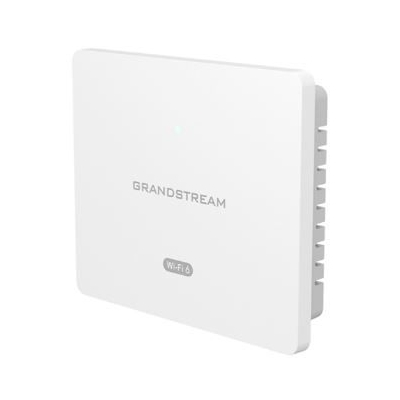

GRANDSTREAM GWN7604 2X2 802.11AX AX3000 WI-FI 6 AP WITH INTEGRATED GIGABIT ETHERNET SWITCH
Model # GWN7604
-
SKU: GWN7604
- Pick Up Available
- Australian Warranty
- Checkout Securely
Grandstream Wi-Fi 6 access point with integrated PoE switch
Grandstream GWN7604 AX3000 Wi-Fi 6 Access Point with PoE Switch
A compact AX3000 Wi-Fi 6 access point with four Gigabit ports, two PSE ports, 3Gbps aggregate throughput, 256-client capacity and up to 100m coverage.
- AX3000 Wi-Fi 6
- 3Gbps aggregate throughput
- 4 Gigabit Ethernet ports
- Up to 256 clients
Product highlights
Integrated Gigabit switch
Includes four Gigabit Ethernet ports.
PoE uplink and PSE
One uplink accepts PoE/PoE+ and two PSE ports can power and connect downstream devices.
Client capacity
Supports up to 256 concurrent Wi-Fi clients.
What to know before ordering
Review the stated model, capacity and compatibility details for SKU GWN7604. Only the specifications supplied for this exact product are shown.
Frequently asked questions
What is the Grandstream GWN7604?
The GWN7604 is an AX3000 Wi-Fi 6 access point with an integrated four-port Gigabit switch.
What aggregate wireless throughput is supplied?
The supplied data states 3Gbps.
How many concurrent clients are supported?
It supports up to 256 clients.
What coverage range is stated?
The supplied data states up to 100 metres.
How many Gigabit ports are included?
Four Gigabit Ethernet ports are included.
How is the access point powered?
The Gigabit uplink accepts PoE or PoE+.
Can it power downstream devices?
Yes. Two PSE ports share a 12W output power budget.
How many SSIDs are supported?
It supports 32 SSIDs total, with 16 per radio.
What security features are included?
WPA3, secure boot, digital-signature lockdown, a unique certificate and random default password are listed.
What warranty applies to the GWN7604?
DeviceDeal is an authorised Grandstream reseller. The applicable Grandstream manufacturer warranty is subject to Grandstream terms; no exact warranty period was supplied.
(GWN7604)
Features and highlights
Wi-Fi 6 performance
Supports 3Gbps aggregate wireless throughput across 2.4GHz and 5GHz radios.
Integrated Gigabit switch
Includes four Gigabit Ethernet ports.
PoE uplink and PSE
One uplink accepts PoE/PoE+ and two PSE ports can power and connect downstream devices.
Client capacity
Supports up to 256 concurrent Wi-Fi clients.
Coverage
The supplied data states a range up to 100 metres.
Advanced QoS
Helps maintain real-time performance for low-latency applications.
Security
Includes WPA3, secure boot, digital-signature lockdown, a unique security certificate and random default password.
Indoor wall mounting
The supplied specifications identify indoor wall mounting.
Key points
- AX3000 Wi-Fi 6
- 3Gbps aggregate throughput
- 4 Gigabit Ethernet ports
- Up to 256 clients
Technical specifications
Grandstream GWN7604 AX3000 Wi-Fi 6 Access Point with PoE Switch
Specifications below are organised from the information supplied for SKU GWN7604.
| Wireless | |
| Wi-Fi standards | IEEE 802.11a/b/g/n/ac/ax |
|---|---|
| Aggregate throughput | 3Gbps |
| 2.4GHz throughput | 573.5Mbps, 2x2:2 MU-MIMO |
| 5GHz throughput | 2.4Gbps, 3x3:2 MU-MIMO |
| Concurrent clients | Up to 256 |
| Range | Up to 100 m |
| SSIDs | 32 total, 16 per radio |
| Network and power | |
| Gigabit ports | 4 total |
| Uplink | 1 × Gigabit with PoE/PoE+ |
| PSE ports | 2 × Gigabit |
| Additional LAN port | 1 × Gigabit |
| PSE output budget | 12W total for LAN2/LAN3 |
| Maximum device consumption | 7.5W excluding PoE output |
| Physical and security | |
| Dimensions | 135 × 115 × 30 mm |
| Mounting | Indoor wall mount |
| Security | WEP, WPA/WPA2, WPA3, secure boot, digital signatures, unique certificate and random default password |
| SKU | GWN7604 |
| Barcode # | 6947273705369 |
| Brand | Grandstream |
| Shipping Weight | 1.0000kg |
Manufacturer warranty
Grandstream warranty information
DeviceDeal is an authorised Grandstream reseller. This product is covered by the applicable Grandstream manufacturer warranty, subject to Grandstream warranty terms, eligibility requirements and product assessment. No exact warranty period was supplied for this SKU.
Please retain your DeviceDeal tax invoice or order record as proof of purchase for any eligible claim or service request.
