NETGEAR WAX620-100EUS
NETGEAR (WAX620) AX3600 DUAL BAND ACCESS POINT, WIFI-6, 5YR

Small and Medium Business
Dual band with a shared backhaul
Compatible with WAX610, WAX610Y, WAC540, WAC564
NETGEAR Insight and Standalone

Overview:

High Performance WiFi 6 Access Points Insight WAX615 for the Small and Medium Size Businesses

The WAX620 is a high performance WiFi 6 access point, ideal for small and medium sized businesses. The access point is a dual band 4x4 design delivering up to 3.6Gbps total WiFi throughput, supported by a 2.5Gbps Power-over-Ethernet port, an industry leader of performance and cost effectiveness in its product class.

The WAX620 supports the next generation WiFi 6 smart phones, IoT devices, and notebook computers, delivering up to 40% more throughput to each individual device in the 5GHz band and 100% more throughput in the 2.4GHz band, compared to the previous generation equivalent model; provides 4x the client device connection, allowing businesses to serve more customers with better speed and less congestion.

The WAX620, a WiFi 6 business access point, combined with Insight, helps small and medium businesses with an easy way to manage their network without an IT expert, providing great WiFi connection leaving each of their customers satisfied as a network user. NETGEAR empowers businesses with an all new WiFi 6 Business Access Point for high performance and high coverage for the years to come. The WAX620 is compatible with WAC510, WAC564, WAX610, WAX610Y Insight managed access points to form a scalable wireless network.

Business Features for higher speed, greater coverage and higher density WiFi

Easy to Configure

• Business class WiFi based on next generation 802.11ax WiFi 6 technology on both 5.0GHz and 2.4GHz bands. (Backward compatible to 802.11b/g/n/a/ac)
• Dual band 4x4 (2.4GHz and 5.0GHz) 8 streams of data for an aggregate throughput of up to 3.6Gbps
• Instant WiFi Mesh forming wireless backhaul with other WAX620, WAC540 or WC564 units to form a WiFi mesh network
• 40% more throughput in 4-stream 5.0GHz band and 100% more throughput in 4-stream 2.4GHz band compared to previous generation
• 4 times more client device supported
• Enterprise security and Enhanced Open security, such as WAP3, WPA Enterprise, 8x SSID and VLAN1
• Basic Service Set Coloring (BSS Coloring) enabling significant improvement in radio frequency channel effeciency and reduction of interference
• Orthogonal Frequency Division Multiple Access (OFDMA) allowing simultaneous services to multiple devices in the same channel thus improving bandwidth efficiency and reducing latency
• 2.5GbE port, backward compatible with 100/1000Mbps Ethernet, supported by NETGEAR GSM4210P, MS510TXPP and other multi-gig Ethernet switches
• Target Wake Time (TWT) allows more efficient power usage resulting in longer battery life in WiFi 6 client devices
• Beamforming+; Advanced 6th generation WiFi technology such as up and downstream MU-MIMO
• One 802.3at 2.5Gbps PoE port. Remote management and monitoring from NETGEAR Insight app or Cloud portal for unrivaled management experience of your wireless network.
• App managed. Faster installation through NETGEAR Insight app or Cloud portal. No additional hardware needed.
• Market leading 5-year warranty with 24/7 chat support for peace of mind

Features:

Performance Features

High-Performance Business WiFi

Faster and more reliable dual band WiFi 6 with 8 streams and up to 2.4Gbps in 5GHz band and 1.2Gbps in 2.4GHz band

Ideal for High Density Environments

Ultimate WiFi performance for schools, hotels, restaurants, and conference centers.

Greater Network Capacity

Enjoy 4x more connection capacity than your current WiFi and improved efficiency for longer battery life.

Seamless Wireless Mesh

Wire-free installation with other WAX620, WAX610, WAX610Y, WAC540, or WAC564 creates the perfect seamless business network.

Multi-Gigabit Speed

Includes a 2.5 Gbps Ethernet port with PoE for high speed wired network connectivity and easy wiring

Ease of Use

Easy Setup

Set up, configure, and manage with NETGEAR Insight

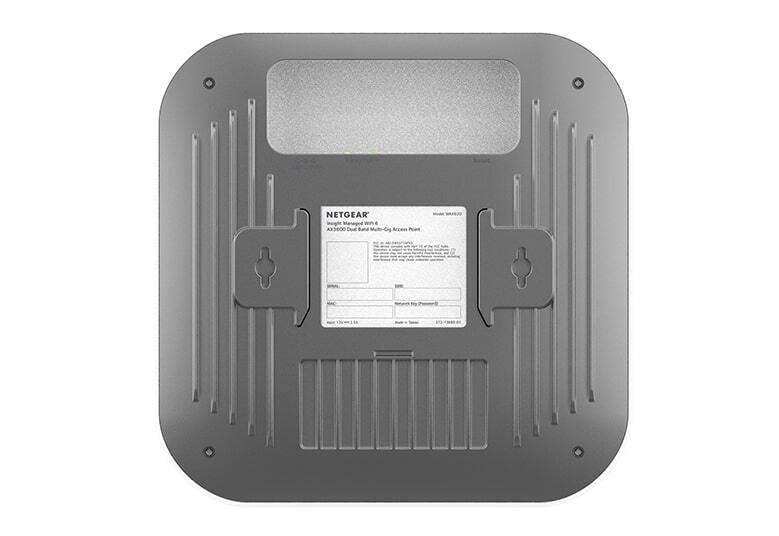

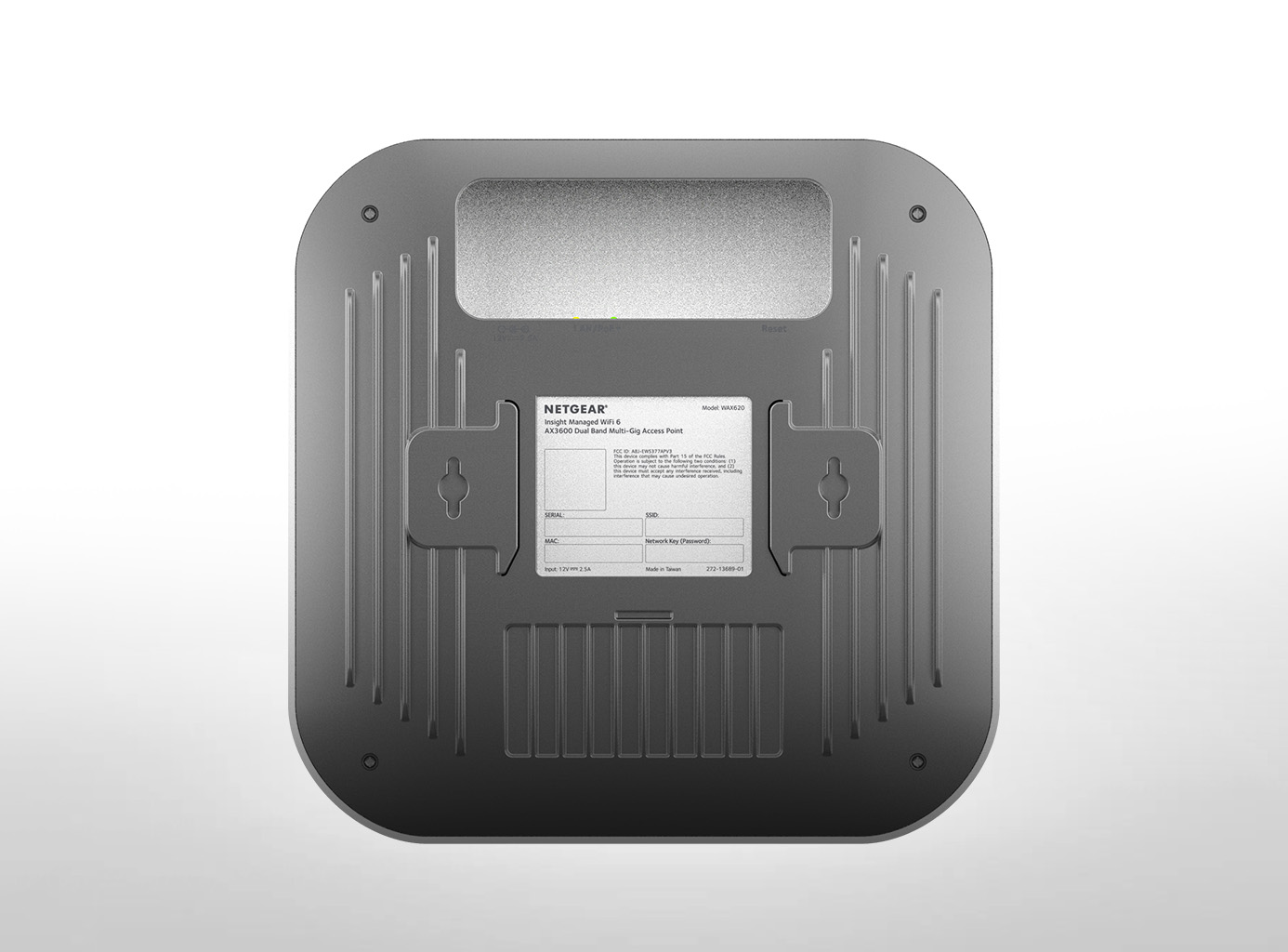

Flexible Mounting

Easy to securely install on the wall of a suspended ceiling with the hardware included

Security Features

Business-Level Security

WPA3 for the highest level of WiFi connection security

8 Wireless Networks (SSIDs)

Separate and secure networks for admin, guests, employees and IoT devices like cameras, locks and more

Separate VLANs

Keep admin, employee, visitor, HR, Finance department networks safely separated from each other

(WAX620-100EUS)

Specifications:

NETGEAR WAX620-100EUS Specifications
Physical Specification	Dimensions (WxDxH) @mm : 205.7 x 205.7 x 34.3 mm (8.09 x 8.09 x 1.35 in) Weight (kg) : 783 g (1.72 lb)
Technical Specification	Speed : AX3600 # of Max Users : 256 # of Concurrent Users : 75 Ideal Use : Small and Medium Business Ethernet port : 2.5G PoE : Yes Wireless Mesh : Yes – Dual band with a shared backhaul. Compatible with WAX610, WAX610Y, WAC540, WAC564 Remote management : NETGEAR Insight and Standalone Third party support : Domotz
