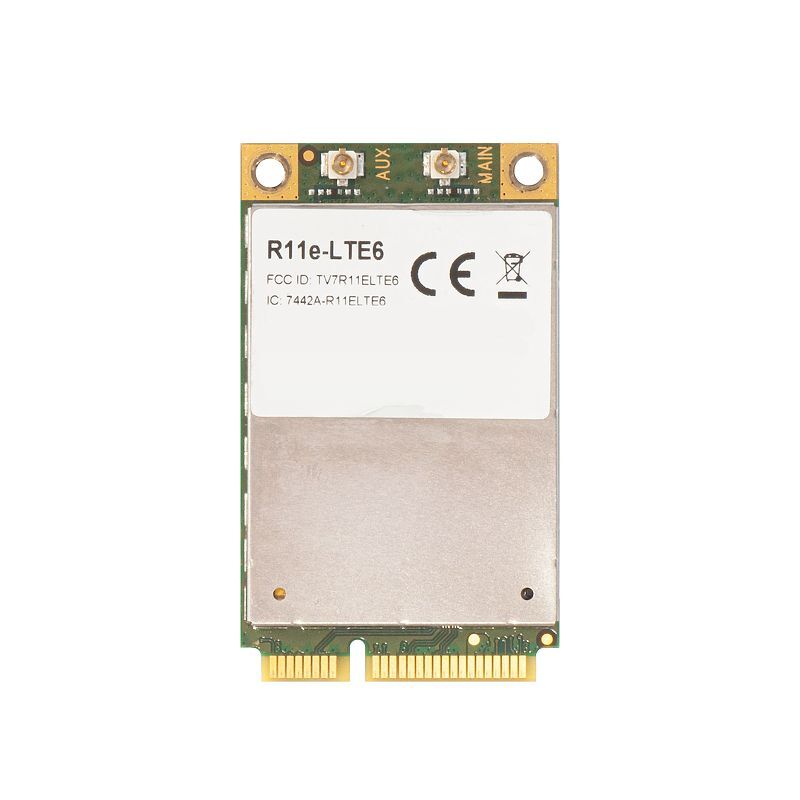

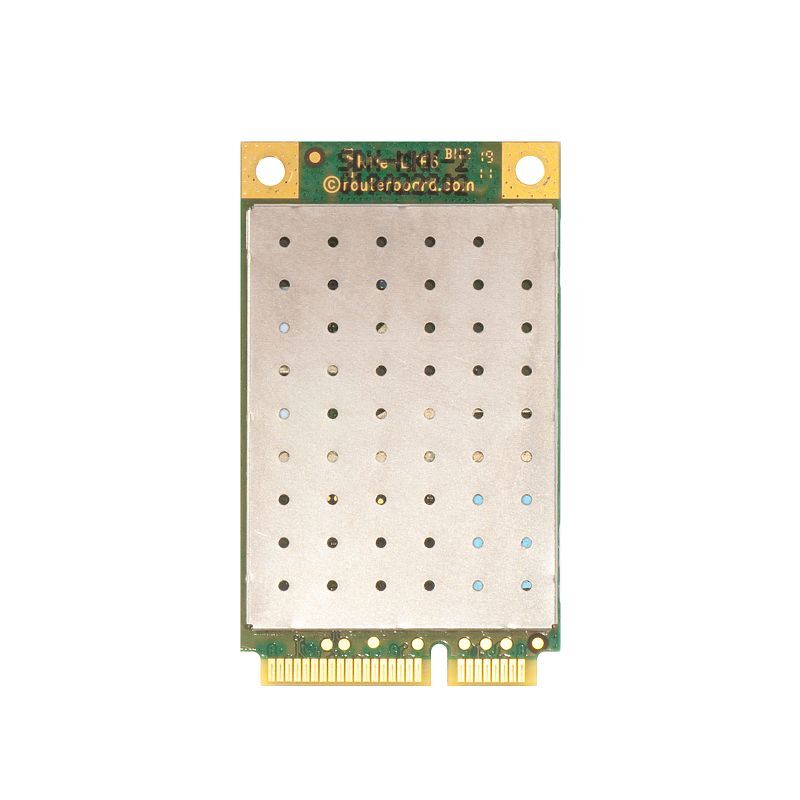

The R11e-LTE6 is an LTE CAT6 modem that delivers up to 300 Mbps downlink and 50 Mbps uplink data rate with 3G and 2G network fallback. CAT6 also features carrier aggregation and allows the device to use multiple bands at the same time. This miniPCIe form factor modem is designed for international bands. It can be used with any of our products that have miniPCIe slot (exceptions RB800 and RB4011). SpecificationsDetailsProduct codeR11e-LTE6Tested ambient temperature-30°C to 70°C PoweringDetailsMax power consumption5 W MobileDetails2G CategoryClass122G bands2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)3G CategoryR7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)3G bands1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)LTE Category6 (300Mbit/s Downlink, 50Mbit/s Uplink)LTE FDD bands1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz)LTE TDD bands38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz)

(R11e-LTE6)
