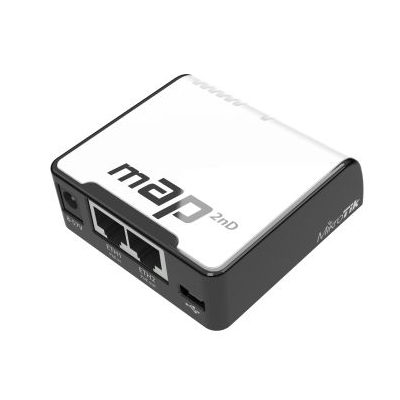

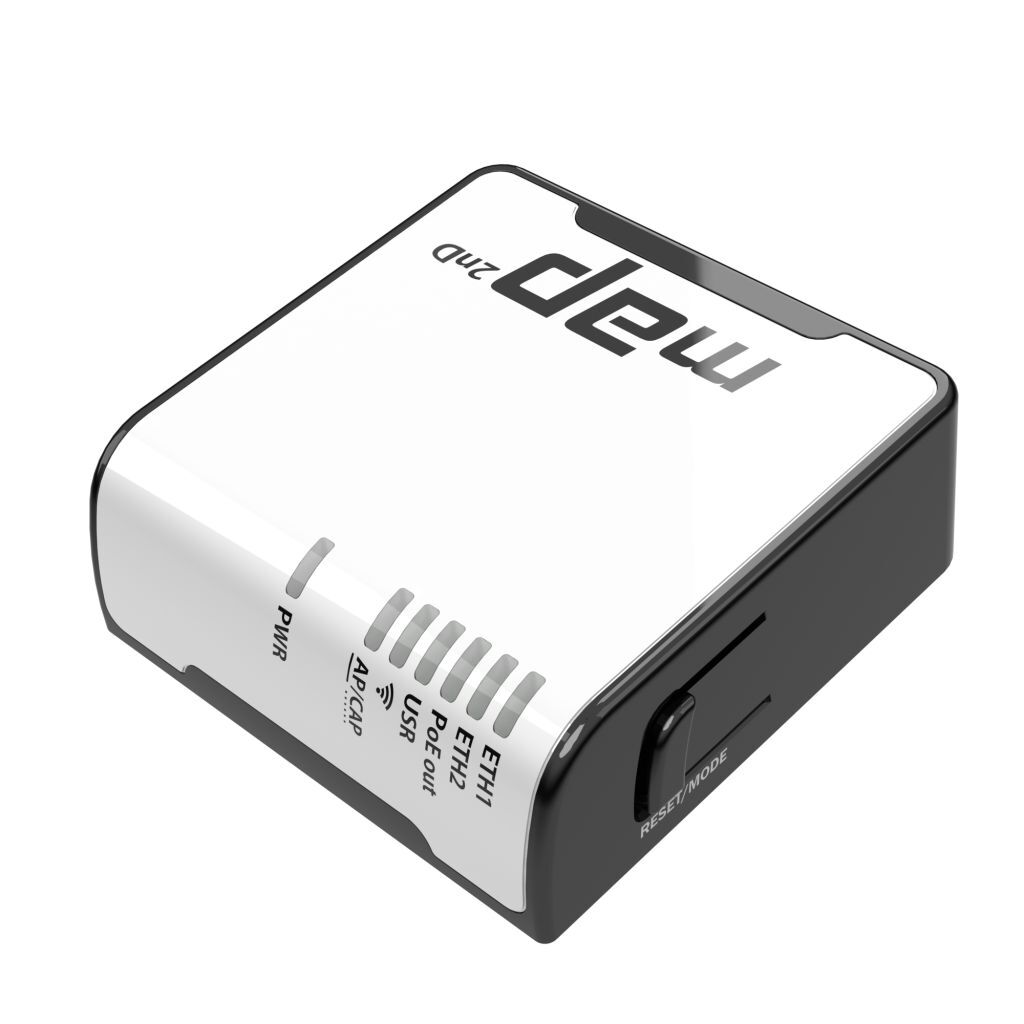

The mAP (micro Access Point) is a tiny size wireless Dual-Chain 2.4GHz Access Point with full RouterOS capabilities. It is very portable, since it accepts power from a wide variety of sources - USB, Passive PoE and power jack. It also works as a PoE injector - the second Ethernet port provides up to 500mA of power to another device, for example, you can connect a SXT CPE device to it. The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.. Brochure FCC Grant of Certification (2.4GHz)

(RBmAP2nD)

Specifications Product code RBmAP2nD Architecture MIPSBE CPU QCA9531 CPU core count 1 CPU nominal frequency 650 MHz Switch chip model QCA9531-BL3A-R Dimensions 68x68x19mm RouterOS license 4 Operating System RouterOS Size of RAM 64 MB Storage size 16 MB Storage type FLASH MTBF Approximately 100'000 hours at 25C Tested ambient temperature -20°C to 70°C Powering MicroUSB input Voltage 5-5 V Number of DC inputs 3 (PoE-IN, MicroUSB, DC jack) DC jack input Voltage 8-57 V Max power consumption 5 W Cooling type Passive PoE in 802.3af/at PoE in input Voltage 12-57 V Ethernet 10/100 Ethernet ports 2 Peripherals Number of USB ports 1 USB Power Reset Yes USB slot type microUSB type AB Max USB current (A) 1 Certification & Approvals Certification FCC, IC PoE-out PoE-out ports Ether2 PoE out Passive PoE Max out per port output (input 18-30 V) 0.5 A Max total out (A) 0.5 A Other PCB temperature monitor Yes Voltage Monitor Yes Wireless specifications 2.4 GHz TX/RX

2.4 GHz	Transmit (dBm)	Receive Sensitivity
1MBit/s	22	-96
11MBit/s	22	-89
6MBit/s	20	-93
54MBit/s	18	-74
MCS0	20	-93
MCS7	16	-71

Wireless 2.4 GHz Max data rate 300 Mbit/s Wireless 2.4 GHz number of chains 2 Wireless 2.4 GHz standards 802.11b/g/n Antenna gain dBi for 2.4 GHz 1.2 Wireless 2.4 GHz chip model QCA9531 Wireless 2.4 GHz generation Wi-Fi 4
