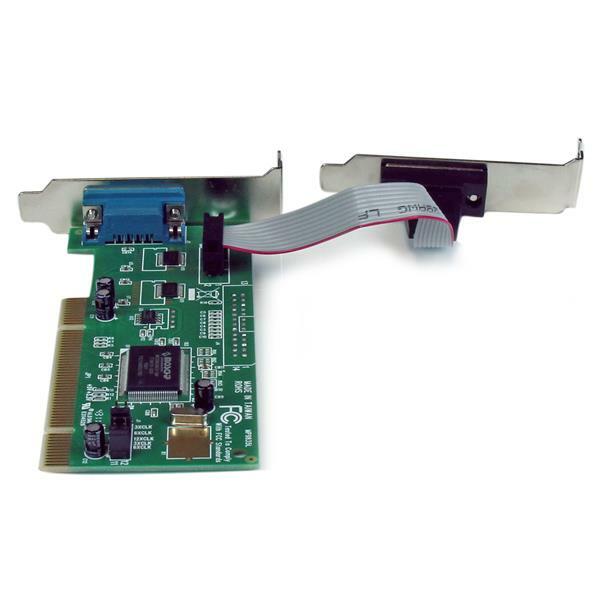

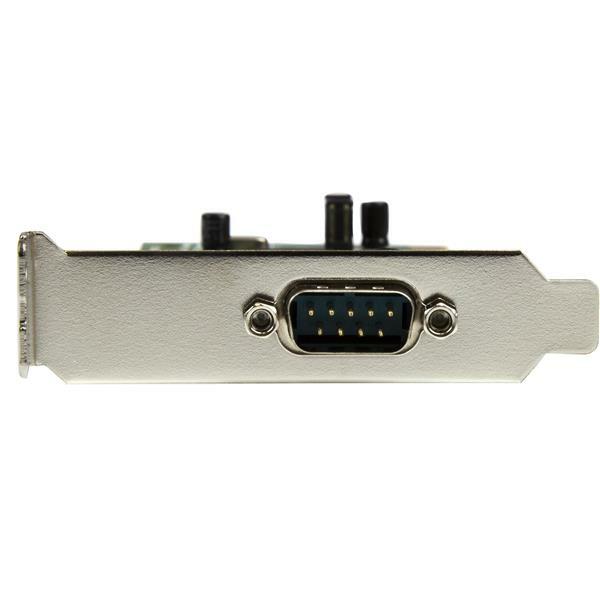

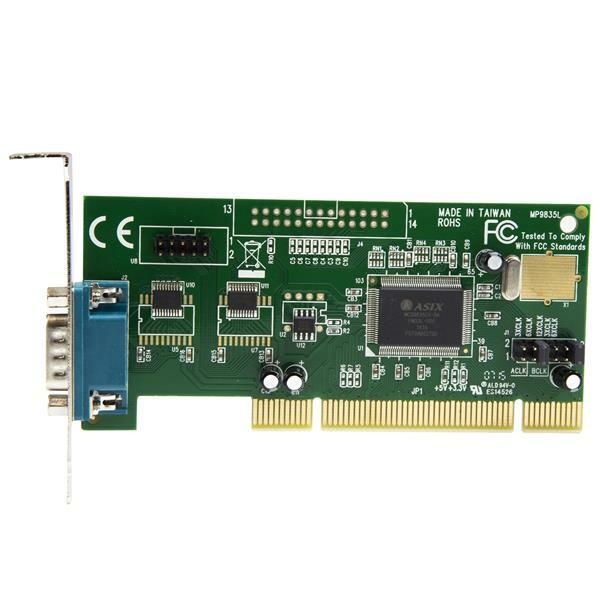

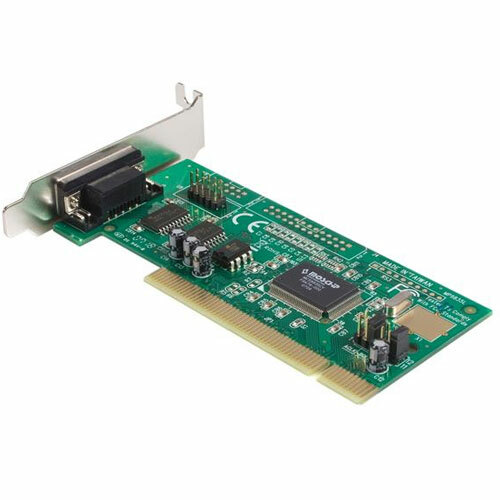

StarTech 2 Port PCI LP RS232 Serial Adapter Card - PCI2S550_LP
Model # PCI2S550_LP
-
SKU: PCI2S550_LP
- Pick Up Available
- Australian Warranty
- Checkout Securely
This 2 Port 16550 Serial Card can be installed in a PCI slot to add two serial ports - a cost-effective solution for connecting any new serial device or old legacy serial device, with data transfer rates of up to 115.2 Kbps. The serial card features a low profile bracket, suitable for installation in low profile/small form factor computer cases.
Perfect for connecting serial modems, POS devices, PDAs, digital cameras, printers, ISDN terminal adapters and more, to your system, the adapter card supports IRQ sharing and operates flawlessly with Windows® 7, Server 2008 R2, Vista, XP, Server 2003, 2000, ME, 98, 95, NT4, 3.1, DOS® and Linux®.
The card can be connected in minutes through simple plug and play installation and is backed by StarTech.com’s lifetime warranty and FREE LIFETIME tech support.
Applications
- Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
- POS (credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
- Consumer (modems, PDAs, digital cameras, printers)
The StarTech.com Advantage
- Compatible with any PC running Windows®, DOS® or Linux® for simple integration into your application
- Data transfer rates of up to 115 Kbps for peak serial device performance
(PCI2S550_LP)
| Warranty Information | ||
|---|---|---|
| Warranty | Lifetime | |
| Hardware | ||
| Bus Type | PCI / PCI-X (5 / 3.3V) | |
| Card Type | Low Profile | |
| Chipset ID | ASIX - MCS9835CV | |
| Interface | Serial | |
| Port Style | Integrated on Card | |
| Ports | 2 | |
| Performance | ||
| FIFO | 16 Byte | |
| Max Baud Rate | 115.2 Kbps | |
| MTBF | 6,548,788 Hours | |
| Serial Protocol | RS-232 | |
| Connector(s) | ||
| Connector Type(s) | 1 - PCI (5V, 32-bit) Male | |
| External Ports | 2 - DB-9 (9 pin, D-Sub) Male | |
| Software | ||
| OS Compatibility | Windows® DOS, 95, 98SE, 2000, CE 5.0 / 6.0, Embedded System 2009, XP Embedded, POS Ready 2009, XP, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2016, 2019 Linux 3.5.x to 4.11.x LTS Versions only | |
| Environmental | ||
| Humidity | 5~85% RH | |
| Operating Temperature | -10°C to 80°C (14°F to 176°F) | |
| Storage Temperature | -20°C to 100°C (-4°F to 212°F) | |
| Physical Characteristics | ||
| Product Height | 0.8 in [2 cm] | |
| Product Length | 4.7 in [12 cm] | |
| Product Width | 2.2 in [55 mm] | |
| Weight of Product | 1.6 oz [45 g] | |
| Packaging Information | ||
| Package Height | 1.2 in [30 mm] | |
| Package Length | 5.7 in [14.4 cm] | |
| Package Width | 6.9 in [17.4 cm] | |
| Shipping (Package) Weight | 4.8 oz [136 g] | |
| What's in the Box | ||
| Included in Package | 1 - PCI Low Profile 2 Port Serial Card | |
| 1 - Low profile bracket | ||
| 2 - Screws | ||
| 1 - Driver CD | ||
| 1 - Instruction Manual | ||
| SKU | PCI2S550_LP |
| Barcode # | 65030788748 |
| Brand | Startech |
| Shipping Weight | 0.1400kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.170m |
| Shipping Cubic | 0.000850000m3 |
