StarTech.com · MUHSMF2M

StarTech MUHSMF2M 2m 3.5mm TRRS Headset Extension Cable

2m 3.5mm TRRS Headset Extension Cable designed for professional IT, electronics, security or workstation use.

Quick answer: MUHSMF2M extends the audio and microphone connection between a compatible CTIA headset and phone, laptop or mobile device by 2m.

Best forLonger hands-free headset connections at desks, gaming stations and mobile-device work areas.

Check before orderingThe source and headset must use compatible CTIA four-position wiring; connect the headset to the extension before connecting it to the device.

Answers before you buy

Frequently asked questions

What is StarTech MUHSMF2M?

It is a 2m four-position 3.5mm TRRS headset extension cable that extends the audio and microphone connection between a compatible CTIA headset and phone, laptop or mobile device by 2m.

Which connections or mounting method are provided?

CTIA 3.5mm four-position male input with four-position female headset connection

What performance is specified?

Extends compatible stereo-headset audio and microphone signals over 2m

How is the product constructed?

Black PVC cable with nickel-plated connectors, 28 AWG conductors and moulded strain relief

How long is the extension cable?

The supplied specification lists a cable length of 2m, or 6.6ft.

What connection order is recommended?

Connect the external headset to the extension cable first, then connect the extension cable to the phone or computer.

What should be checked before ordering?

The source and headset must use compatible CTIA four-position wiring; connect the headset to the extension before connecting it to the device.

What warranty applies?

MUHSMF2M carries a StarTech.com limited lifetime manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides.

(MUHSMF2M)

Features & highlights

Why choose MUHSMF2M?

?Purpose-built designCTIA 3.5mm four-position male input with four-position female headset connection

?Specified performanceExtends compatible stereo-headset audio and microphone signals over 2m

?Professional constructionBlack PVC cable with nickel-plated connectors, 28 AWG conductors and moulded strain relief

?Key capabilityTwo-metre reach extends both listening audio and a compatible microphone through one four-pole connection.

?Deployment advantageSome in-line remote-control functions may not operate correctly through an extension because of remote-circuit sensitivity.

?Order with confidenceThe source and headset must use compatible CTIA four-position wiring; connect the headset to the extension before connecting it to the device.

Compatibility reminder: The source and headset must use compatible CTIA four-position wiring; connect the headset to the extension before connecting it to the device.

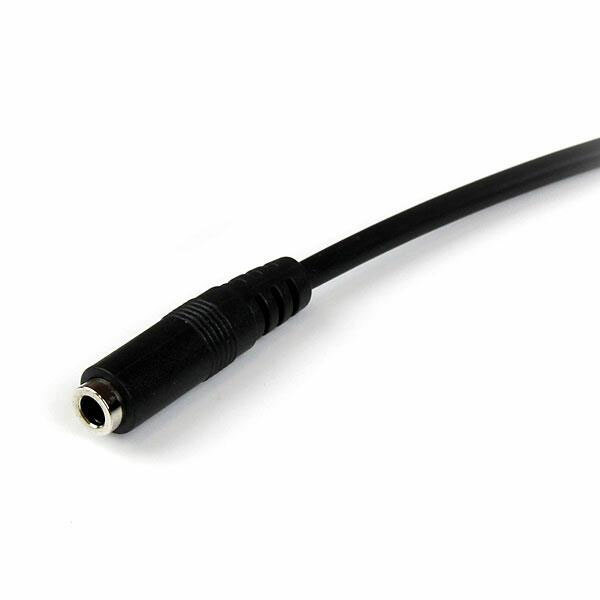

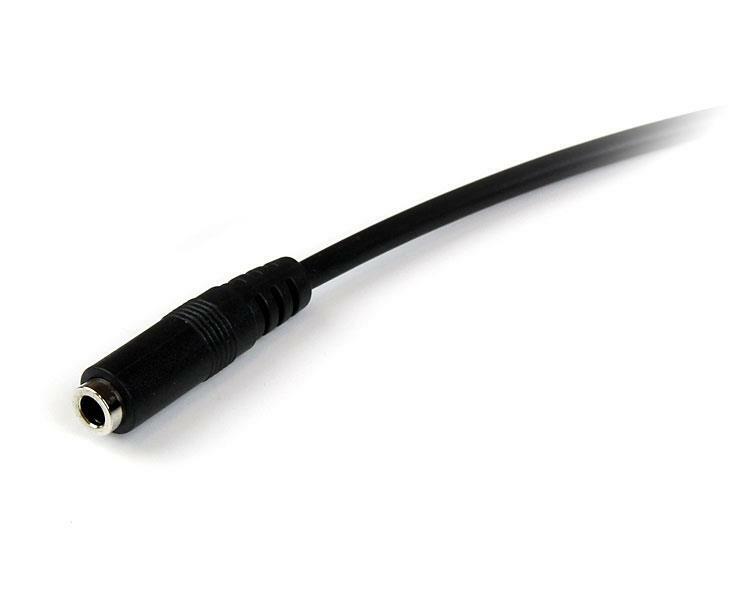

StarTech MUHSMF2M 2m 3.5mm TRRS Headset Extension Cable product image

Technical specifications

MUHSMF2M specifications

Exact-model specifications for compatibility checking. Measurements may be rounded.

Warranty Information
Warranty	Lifetime
Hardware
Cable Jacket Type	PVC - Polyvinyl Chloride
Connector Plating	Nickel
Connector(s)
Connector A	1 - 3.5 mm Mini-Jack (4 Position) Male
Connector B	2 - 3.5 mm Mini-Jack (4 Position) Female
Special Notes / Requirements
Note	3.5 mm Mini-Jack (4 position) male is configured per CTIA Standard
Physical Characteristics
Cable Length	6.6 ft [2 m]
Color	Black
Product Height	0.2 in [0.6 cm]
Product Length	6.6 ft [2 m]
Product Width	0.2 in [6 mm]
Weight of Product	1.3 oz [37 g]
Wire Gauge	28 AWG
Packaging Information
Package Height	0.3 in [7 mm]
Package Length	8.7 in [22 cm]
Package Quantity	1
Package Width	5 in [12.8 cm]
Shipping (Package) Weight	1.4 oz [41 g]
What's in the Box
Included in Package	1 - 2m 3.5mm 4 Position Headset Extension Cable - M/F
