StarTech 4 Port PCIe RS232 Serial Adapter Card - PEX4S952
Model # PEX4S952
-
SKU: PEX4S952
- Pick Up Available
- Australian Warranty
- Checkout Securely

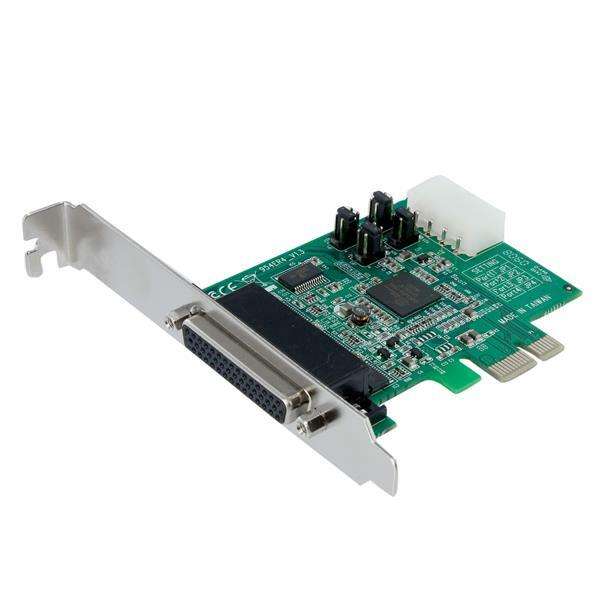

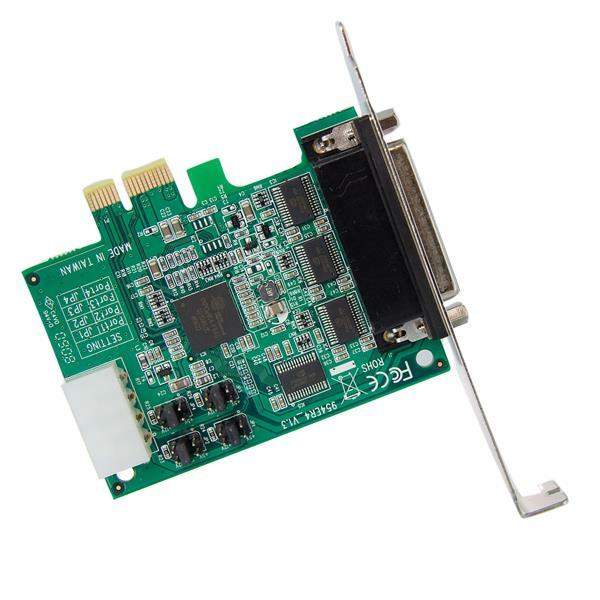

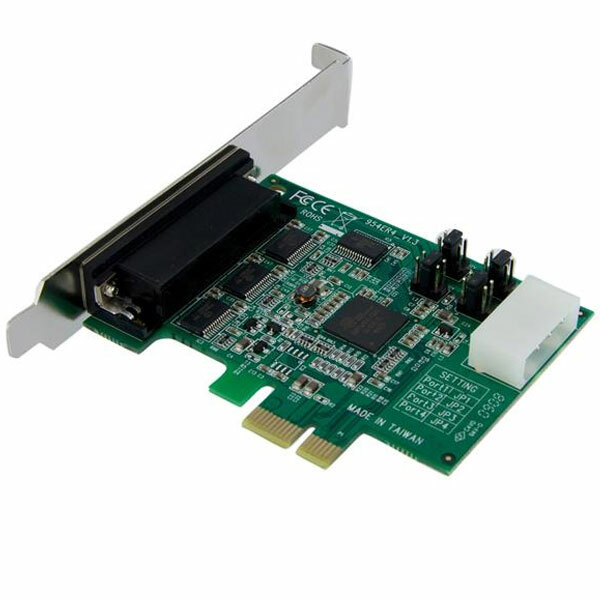

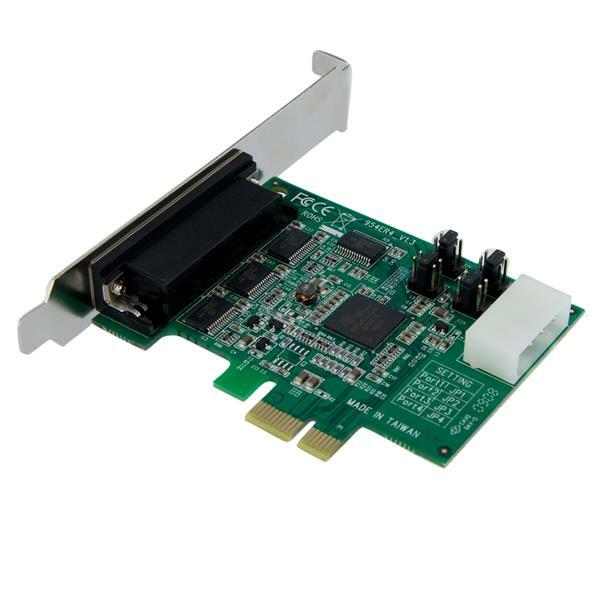

The PEX4S952 4 Port Native PCI Express RS232 Serial Adapter Card with 16950 UART allows you to turn a PCI Express slot into 4 RS-232 (DB9) serial connections.
The four port serial card is based on a native single chip design, that harnesses the full capability of PCI Express (PCIe) - providing optimum reliability and speed, and reducing the load applied to the CPU by as much as 48% over conventional serial cards.
Offering compatibility with a broad range of operating systems including Windows®, Linux and Mac® OS for easy integration into mixed environments. Plus, an included optional low profile/half-height bracket that allows the card to be installed in virtually any computer case – making it that much easier to add serial ports to your PCI Express enabled computer, regardless of the case form factor.
Backed by a StarTech.com Lifetime warranty and free lifetime technical support.
Applications
- Self service automated machines and kiosks to control serial devices such as scales, touchscreens, magnetic card readers, bar code scanners, receipt printers, label printers
- POS retail applications in grocery stores, and any other retail store to control keyboards, cash drawers, receipt printers, card readers / card swipes, scales, and elevated displays on poles
- Bank teller workstations in either full profile or low profile versions to control their serial devices such as cash drawers, card readers / card swipes, printers, keypads / pinpads, pen pads
The StarTech.com Advantage
- Native single-Chip, single lane PCI Express offers increased performance, for up to 48% less cpu load
- Data transfer rates of up to 460 Kbps for efficient serial device performance
- Pre-configured for standard profile systems but includes a low profile bracket for versatility
(PEX4S952)
| Warranty Information | ||
|---|---|---|
| Warranty | Lifetime | |
| Hardware | ||
| Bus Type | PCI Express | |
| Card Type | Standard Profile (LP bracket incl.) | |
| Chipset ID | PLX/Oxford - OXPCIe954 | |
| Interface | Serial | |
| Port Style | Integrated on Card | |
| Ports | 4 | |
| Performance | ||
| Data Bits | 5, 6, 7, 8 | |
| FIFO | 128 Bytes | |
| Max Baud Rate | 460.8 Kbps | |
| MTBF | 87,600 Hours | |
| Serial Protocol | RS-232 | |
| Connector(s) | ||
| Connector Type(s) | 1 - PCI Express x1 Male | |
| External Ports | 4 - DB-9 (9 pin, D-Sub) Male | |
| Software | ||
| OS Compatibility | Windows® CE 6.0/5.0/4.2, 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 Linux 2.4.x to 4.11.x LTS Versions only | |
| Environmental | ||
| Humidity | 5~85% RH | |
| Operating Temperature | -10°C to 80°C (14°F to 176°F) | |
| Storage Temperature | -20°C to 100°C (-4°F to 212°F) | |
| Physical Characteristics | ||
| Product Height | 0.8 in [2 cm] | |
| Product Length | 3.5 in [90 mm] | |
| Product Width | 2.6 in [65 mm] | |
| Weight of Product | 9.8 oz [277 g] | |
| Packaging Information | ||
| Package Height | 1.6 in [41 mm] | |
| Package Length | 5.7 in [14.6 cm] | |
| Package Width | 8.2 in [20.9 cm] | |
| Shipping (Package) Weight | 13.4 oz [379 g] | |
| What's in the Box | ||
| Included in Package | 1 - 4 Port Serial Card | |
| 1 - 4 Port DB9 Break-out cable | ||
| 2 - Low Profile Bracket | ||
| 1 - Driver CD | ||
| 1 - Instruction Manual | ||
| SKU | PEX4S952 |
| Barcode # | 65030834421 |
| Brand | Startech |
| Shipping Weight | 0.3700kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.200m |
| Shipping Cubic | 0.001000000m3 |
