STARTECH.COM | DMFKSLCLCCOUPLER

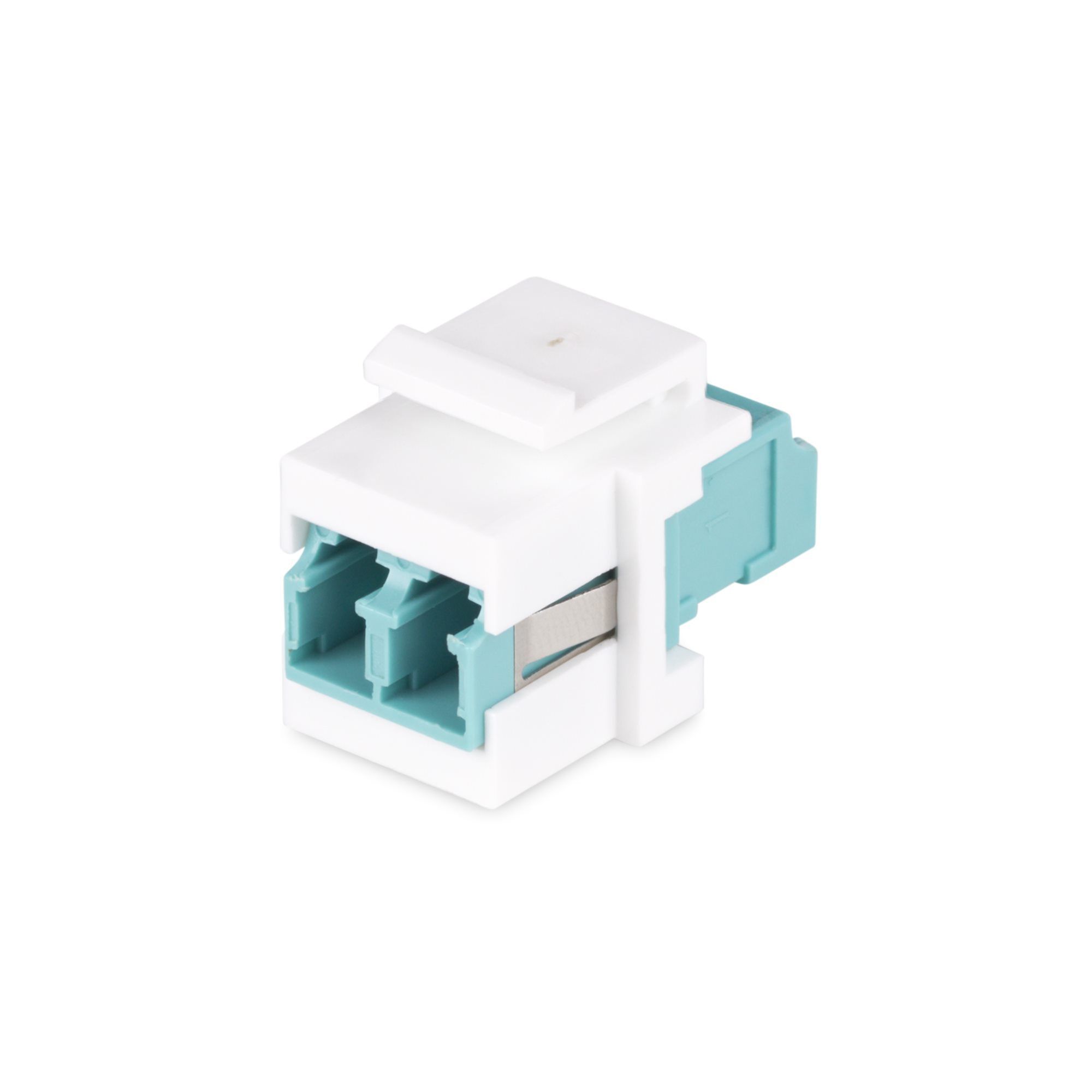

Duplex LC/UPC Female-to-Female Fibre Keystone Coupler

Join two duplex LC fibre patch cables through a keystone wall plate or patch panel while maintaining precise alignment and low insertion loss across single-mode and multimode networks.

Broad fibre compatibility

Works with OS1/OS2 single-mode and OM1 through OM5 multimode LC/UPC fibre cabling.

Low-loss alignment

Ceramic inner sleeves align the fibres precisely, with specified insertion loss below 0.2dB.

Tool-free keystone fit

Snap the ABS coupler into a compatible keystone opening in a wall plate or patch panel.

What to know

This coupler is for duplex LC connectors with UPC-polished ends. Confirm that both patch leads use compatible fibre type, polarity and optical specifications for the network equipment.

Frequently asked questions

What connectors does the DMFKSLCLCCOUPLER join?

It joins two duplex LC fibre connectors with UPC-polished ends through female LC interfaces on both sides.

Does the DMFKSLCLCCOUPLER support single-mode and multimode fibre?

Yes. It supports OS1/OS2 single-mode and OM1 through OM5 multimode fibre.

Which fibre core sizes are compatible?

It supports 9/125µm, 62.5/125µm and 50/125µm fibre formats associated with the listed OS and OM categories.

What network speeds can the coupler support?

It is specified for 1Gbps, 10Gbps, 40Gbps and 100Gbps links when the remaining optical components are compatible.

What is the specified insertion loss?

The specified insertion loss is less than 0.2dB.

Does installation require tools?

No. The coupler snaps into a compatible keystone patch panel or wall plate without additional tools.

How does the coupler protect fibre alignment?

Ceramic inner sleeves provide precise alignment, while the ABS housing and supplied dust covers protect the interfaces.

What warranty applies to the DMFKSLCLCCOUPLER?

It is backed by a lifetime StarTech.com manufacturer warranty.

Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.

(DMFKSLCLCCOUPLER)

Features and highlights

Duplex LC/UPC female-to-female passive fibre coupler
Supports OS1 and OS2 9/125µm single-mode fibre
Supports OM1 62.5/125µm and OM2, OM3, OM4 and OM5 50/125µm multimode fibre
Rated for network speeds from 1Gbps through 100Gbps when used in a compatible optical link
Low insertion loss below 0.2dB with ceramic alignment sleeves
Durable ABS housing rated for up to 500 mating cycles
Protective dust covers help keep unused LC interfaces clean

Compatibility check: Use duplex LC/UPC patch leads and a standard compatible keystone opening. Optical performance and supported distance depend on the transceivers, fibre category, link budget and installation quality.

Specifications

Connector type	2 × duplex LC/UPC female
Coupler format	Passive female-to-female keystone coupler
Fibre modes	Single-mode and multimode
Supported fibre	OS1/OS2 9/125µm; OM1 62.5/125µm; OM2/OM3/OM4/OM5 50/125µm
Supported network rates	1Gbps, 10Gbps, 40Gbps and 100Gbps in compatible links
Insertion loss	Less than 0.2dB
Alignment sleeves	Ceramic
Housing	White ABS with dust covers
Dimensions and weight	29 × 18 × 22mm; 4g
Warranty	Lifetime StarTech.com manufacturer warranty

SKU	DMFKSLCLCCOUPLER
Barcode #	65030901697
Brand	Startech
Shipping Weight	0.0100kg
Shipping Width	0.030m
Shipping Height	0.020m
Shipping Length	0.080m

Warranty and Australian supply

DMFKSLCLCCOUPLER is supplied by DeviceDeal as an Australian-market product and carries the official Lifetime StarTech.com manufacturer warranty in Australia.

Keep your DeviceDeal tax invoice as proof of purchase. Warranty service is subject to StarTech.com terms, eligibility requirements and product assessment.
