This all-in-one PCI Express capture card lets you record 1080p HD video and stereo audio to your computer system. With multiple video inputs including HDMI, DVI, VGA and component, the capture card can record original content from various sources such as computers, camcorders, security systems, POS terminals, and servers. With H.264 encoding, this is the perfect solution for capturing high-definition video for editing, compiling, and archiving. You can install the card into any low-profile or full-profile PCIe slot, including fixed workstations such as 2U or 4U rack-mounted servers or media centers. Installing your capture device internally through PCIe ensures a secure and reliable way to capture video. Capture video in 1080p HD You can capture the same quality delivered by your video source, by recording video in high-definition 1080p at 30 frames per second. Unlike some capture devices that can only record at low-resolution 480p, this capture card matches the output of most consumer A/V equipment.  Now, you can capture the output from your computer, server, or POS station when creating software training and tutorial videos, without having to put up with inferior video quality. H.264 encoding for wide device compatibility  The software that's included with the capture card encodes in H.264 -- the most widely adopted video codec in the world. Although the card is designed specifically for Windows® computers, H.264 encoding ensures the video files you save will be compatible with almost any video player such as such the media software on your PC, Mac, iOS and Android™ devices, with no editing or converting required.  H.264 is also widely supported by most software titles including Adobe Premiere® and Windows Media® Encoder. Plus, the software not only lets you capture and export videos, but it also lets you take screenshots, schedule recordings and instantly stream your video source over the Internet using online services such as Twitch®. Flexible input solutions for convenient compatibility With multiple A/V input options, the capture card lets you record video from a wide variety of sources including HDMI, DVI, VGA, and component. You can also use this capture card with A/V adapters to record other video sources such as SDI using our SDI to HDMI converter(SDI2HD). Support for a variety of A/V devices is ideal for archiving analog video footage into a digital database. The device also includes easy-to-use software that’s compatible with NTSC and PAL systems, making it a must for professional video archiving applications where source media can change from project to project. The PEXHDCAP2 is backed by a StarTech.com 2-year warranty and free lifetime technical support. Note: This capture card will not record digitally encrypted content. Computer System Requirements:

  • Operating system: Microsoft® Windows® Vista / 7 / 8 / 8.1 (32/64-bit)
  • CPU: i3 dual core 2.8GHz or higher
  • Memory: 2 GB
  • An available PCI Express slot


Capture an HD audio-video source, through a low-profile or full-profile PCI Express slot - PCIe video capture card - 1080p

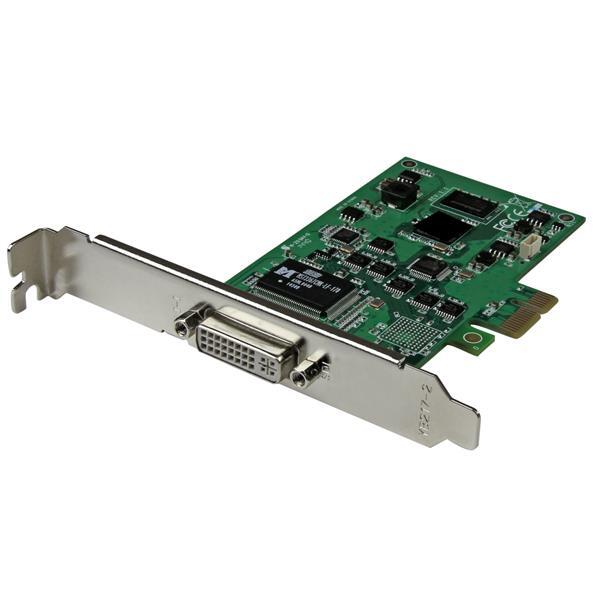

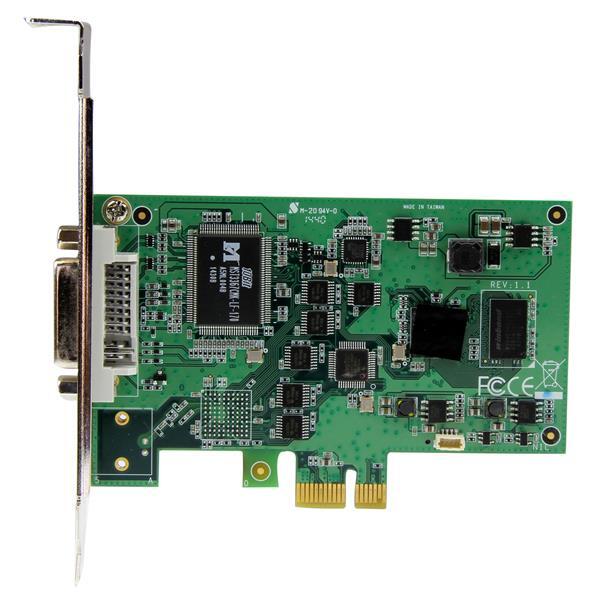

High-Definition PCIe Capture Card - HDMI VGA DVI & Component - 1080P

(PEXHDCAP2)

Hardware
Industry Standards NTSC, PAL-M, PAL-60, PAL
  Video Encoding: MPEG4/H.264
Packaging Information
Package Height 42 mm [1.7 in]
Package Length 14.8 cm [5.8 in]
Package Width 20.5 cm [8.1 in]
Shipping (Package) Weight 365 g [12.9 oz]
Performance
Audio Specifications 16-Bit 48000Hz, HDMI 2Ch Audio or RCA Stereo input
Maximum Digital Resolutions 1080p30
MTBF 1,757,807 Hours
Supported Resolutions TV: 1080i/p, 720p, 576i/p, 480i/p
PC: 1920x1080, 1440x900, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600
Physical Characteristics
Product Height 2 cm [0.8 in]
Product Length 12 cm [4.7 in]
Product Width 12 cm [4.7 in]
Weight of Product 58 g [2 oz]
Software
OS Compatibility Windows® 10 (32/64), 8/8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64)
What's in the Box
Included in Package DVI-D to HDMI adapter
  DVI-I breakout cable
  DVI-I to VGA adapter
  low profile bracket
  PCIe video capture card
  quick install guide
Hardware
Industry Standards DirectShow Compatible
Chipset ID Mstar - MST3367CMK-IF-170
AV Input VGA
  HDMI
  DVI
  Component
Audio Yes
Environmental
Storage Temperature -5°C to 40°C (23°F to 104°F)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Humidity 20~80% (non-condensing)
Connector(s)

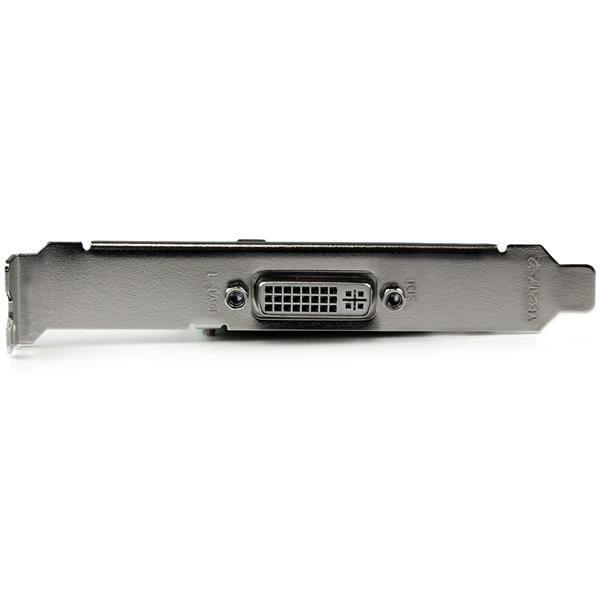

Connector B DVI-I (29 pin) Female Input
Connector A PCI Express x1 Male Output
SKU PEXHDCAP2
Barcode # 65030862387
Brand StarTech
Shipping Weight 365.0000kg
Shipping Width 0.205m
Shipping Height 0.042m
Shipping Length 0.148m
