TAP200

Name: Teltonika TAP200 – Wi-Fi 5 ACCESS POINT, Dual Band Wi-Fi, Supporting speeds of up to 1000 Mbps and PoE-in functionality, PSU excluded
Brand: TELTONIKA
SKU: TAP200
Price: 150 AUD
Availability: OutOfStock

Wi-Fi 5 ACCESS POINT

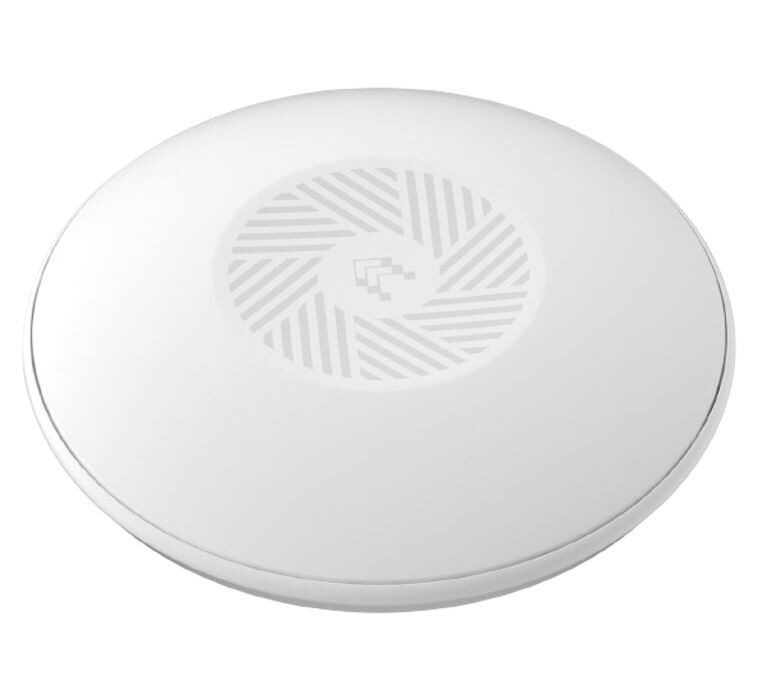

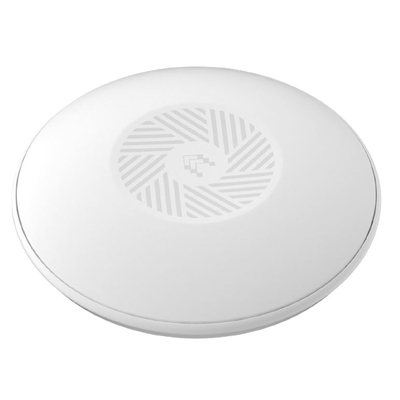

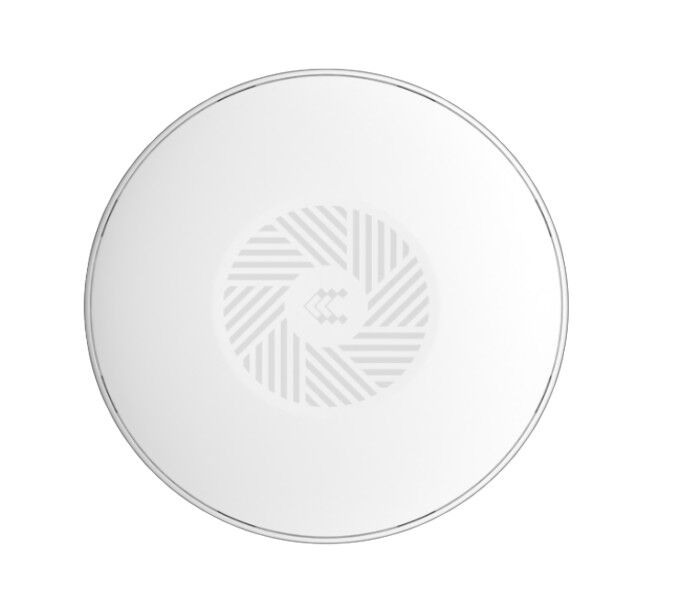

Equipped with dual-band technology, fast roaming, and an RJ45 port with PoE-in functionality, the Teltonika Networks TAP200 is a Wi-Fi 5 wireless access point designed to enhance Wi-Fi coverage in medium-density spaces where high network performance is essential. The TAP200 features an integrated mounting bracket for quick and easy installation, and a sleek design to seamlessly blend into retail, enterprise, or any other environment.

Wi-Fi 5

Wave-2 802.11 b/g/n/ac Dual Band Wi-Fi

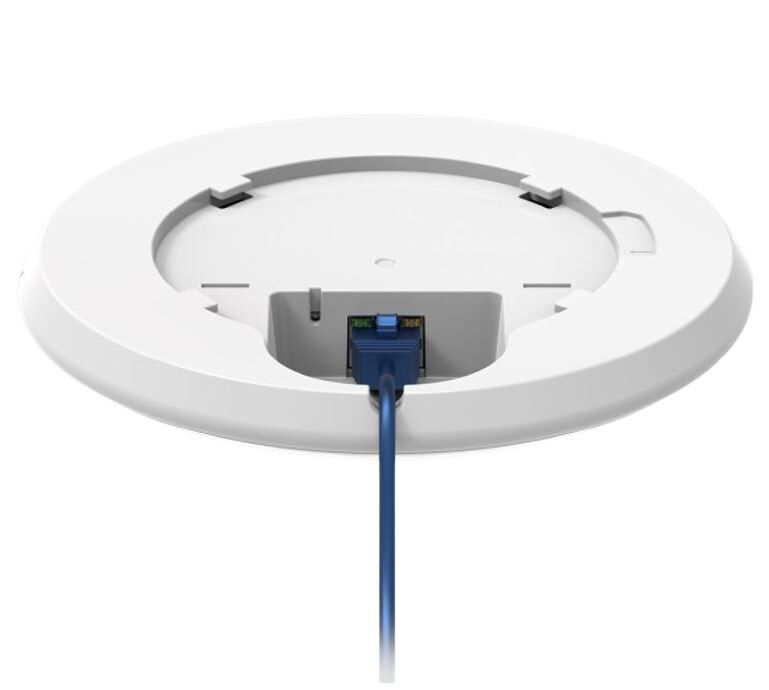

RJ45 & POE-IN

Supporting speeds of up to 1000 Mbps and PoE-in functionality

RESILIENT & EASY TO INSTALL

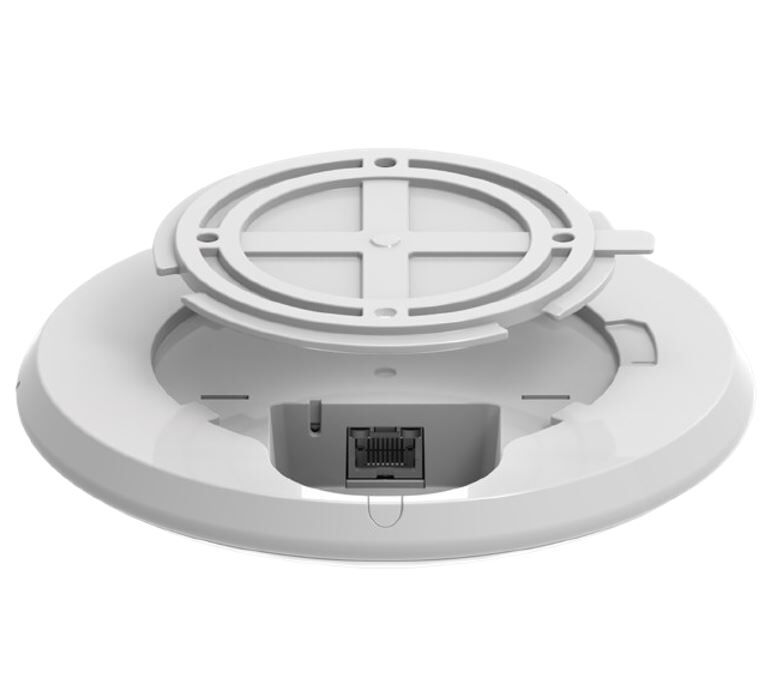

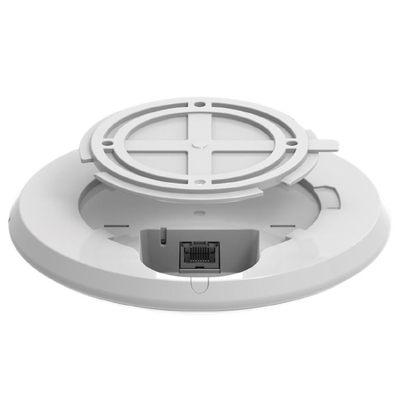

UV-stabilised housing for lasting colour with a mounting bracket for quick setup

RMS MANAGEMENT

Free RMS Management access for 24 months

For More Case Studies Click Here ...

(TAP200)

Category	Feature	Description
Wireless	Wireless mode	802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO)
	Wi-Fi security	WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
	SSID/ESSID	ESSID stealth mode (Hide SSID)
	Wi-Fi users	Up to 100 simultaneous connections
	Wireless Connectivity Features	Wireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v), radio resource measurement (802.11k)
	Wireless MAC filter	Allowlist, blocklist
	Wireless QR code generator	Once scanned, a user will automatically enter your network without needing to input login information
	TravelMate	Forward Wi-Fi hotspot landing page to a subsequent connected device
Ethernet	Ethernet	1 x RJ45 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Network	Network protocols	TCP, UDP, IPv4, IPv6, ICMP, HTTP, HTTPS, SSL v3, TLS, ARP, SSH
	DNS over HTTPS	DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
	Hotspot 2.0	Hotspot 2.0 is a Wi-Fi standard that enables seamless, secure, and automatic connection to trusted wireless networks
	Traffic Management	Real-time monitoring, wireless signal charts, traffic usage history
Security	802.1x	Port-based network access control client
	Authentication	SSH key based, HTTPS, CLI, IP & Login attempts block, time-based login blocking, built-in random password generator
	VLAN	Tag-based VLAN separation
DATA TO SERVER	Protocol	HTTP(S), MQTT, Azure MQTT
DATA TO SERVER	Data to server	Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature
API	Teltonika Networks Web API (beta) support	Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation:https://developers.teltonika-networks.com
Monitoring & Management	WEB UI	HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log
	FOTA	Firmware update from server, automatic notification
	SSH	SSH (v1, v2)
	Email	Receive email message status alerts of various services
	JSON-RPC	Management API over HTTP/HTTPS
	RMS	Teltonika Remote Management System (RMS)
System Characteristics	CPU	MediaTek, Dual-Core, 880 MHz, MIPS 1004Kc
	RAM	256 MB, DDR3
	FLASH storage	16MB, SPI NOR Flash
Firmware / Configuration	WEB UI	Update FW from file, check FW on server, configuration profiles, configuration backup
	FOTA	Update FW
	RMS	Update FW/configuration for multiple devices at once
	Keep settings	Update FW without losing current configuration
	Factory settings reset	A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration
FIRMWARE CUSTOMISATION	Operating system	RutOS (OpenWrt based Linux OS)
	Supported languages	Busybox shell, Lua, C, C++
	Development tools	SDK package with build environment provided
	GPL customization	You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
	Package Manager	The Package Manager is a service used to install additional software on the device
Power	Connector	RJ45 Socket
	Input voltage range	44.0 – 57.0 V
	PoE standards	802.3af PoE Class 1
	Power consumption	Idle: < 4 W / Max: < 5.5 W
Physical Interfaces	Ethernet	1 x RJ45 port, 10/100/1000 Mbps
	Status LEDs	1 x Power LED (can be turned off from web-UI)
	Antennas	2 x Internal for 2.4 GHz Wi-Fi, 2 x Internal for 5 GHz Wi-Fi
	Antennas specifications	2 x 2400 - 2500 MHz, 50 Ω, VSWR <2.7, gain < 4.9 dBi, omnidirectional2 x 5150 - 5850 MHz, 50 Ω, VSWR <2, gain < 5.02 dBi, omnidirectional
	Reset	Reboot/User default reset/Factory reset button
Physical Specification	Casing material	UV stabilized plastic
	Dimensions	Ø 158 mm x 30 mm
	Weight	190 g
	Mounting options	AP mounting bracket (for ceiling mount)
Operating Environment	Operating temperature	-40 °C to 50 °C
	Operating humidity	10% to 90% non-condensing
	Ingress Protection Rating	IP30
Regulatory & Type Approvals	Regulatory	CE, UKCA, FCC, IC, RCM, CB, EAC, UCRF, RoHS, REACH, WEEE, SDPPI (POSTEL)
EMC Emissions & Immunity	Standards	EN 55032:2015 + A11:2020EN 55035:2017 + A11:2020EN 61000-3-3:2013+A1:2019 + A2:2021EN IEC 61000-3-2:2019 + A1:2021EN 301 489-1 V2.2.3EN 301 489-17 V3.2.4
	ESD	EN 61000-4-2:2009
	Radiated Immunity	EN IEC 61000-4-3:2020
	EFT	EN 61000-4-4:2012
	Surge Immunity (AC Mains Power Port)	EN 61000-4-5:2014 + A1:2017
	CS	EN 61000-4-6:2014
	DIP	EN IEC 61000-4-11:2020
RF	Standards	EN 300 328 V2.2.2EN 300 893 V2.1.1EN 300 440 V2.2.1
Safety	Standards	CE:EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020RCM:AS/NZS 62368.1:2022CB:IEC 62368-1:2018
