DC-to-DC PoE conversion
The TP-DCDC-1224-HP converts the stated 10-15VDC DC input for delivery through its integrated PoE output.

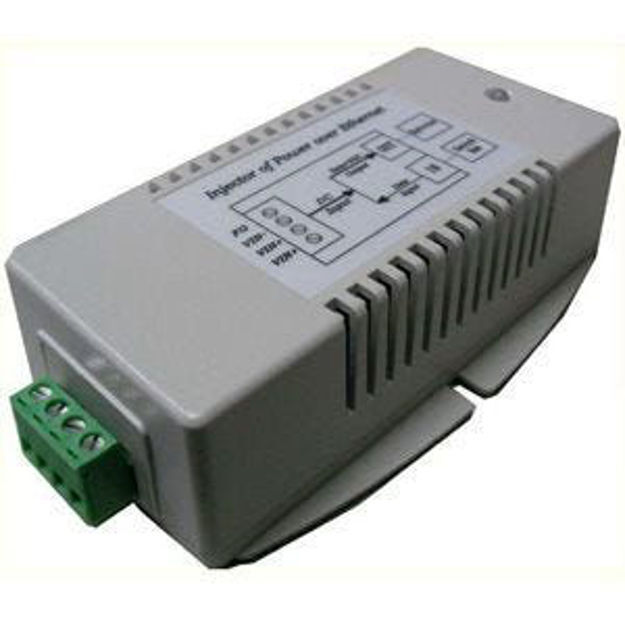

Tycon Power TP-DCDC-1224-HP
The Tycon Power TP-DCDC-1224-HP accepts 10-15VDC and provides a regulated 24V passive PoE output rated up to 35W over a 10/100 Ethernet connection.
Product highlights
Verified product information is organised below to support faster comparison and more confident installation planning.
The TP-DCDC-1224-HP converts the stated 10-15VDC DC input for delivery through its integrated PoE output.
The output is specified as 24VDC passive PoE.
The exact-model output rating is stated as 35W.
The supported data rate is identified as 10/100 Ethernet.
Two DC inputs are provided for connecting two power sources, such as primary and backup sources.
Short-circuit, over-current and reverse/over-voltage protection; surge and overload protection are also described.
DeviceDeal is an authorised reseller of Tycon Power. This product is supplied with the applicable Tycon Power manufacturer warranty in Australia, subject to the manufacturer's terms, eligibility requirements and product assessment.
Frequently asked questions
The Tycon Power TP-DCDC-1224-HP accepts 10-15VDC and provides a regulated 24V passive PoE output rated up to 35W over a 10/100 Ethernet connection.
The specified DC input is 10-15VDC.
The output is 24VDC passive PoE with a stated maximum of 35W.
The product information identifies 10/100 Ethernet data support.
Yes. Two DC inputs are provided for primary and backup power-source arrangements.
DeviceDeal is an authorised reseller of Tycon Power. This product is covered by the applicable Tycon Power manufacturer warranty in Australia, subject to the manufacturer's terms and product assessment. A specific warranty duration is not stated in the verified information.
(TP-DCDC-1224-HP)
Technical specifications
| Product details | |
|---|---|
| Brand | Tycon Power |
| Model | TP-DCDC-1224-HP |
| Product type | DC-to-DC PoE injector / converter |
| PoE output ports | 1 |
| Power and PoE | |
| DC input | 10-15VDC |
| PoE output voltage | 24VDC |
| PoE output type | passive PoE |
| Maximum output power | 35W |
| Networking | |
| Network data rate | 10/100 Ethernet |
| Protection and construction | |
| Dual DC inputs | Yes |
| Input/output isolation | Yes |
| Protection features | Short-circuit, over-current and reverse/over-voltage protection; surge and overload protection are also described. |
| Operating temperature | -30°C to 60°C |
| Housing material | UV ABS 94V0 plastic |
| SKU | TP-DCDC-1224-HP |
| Brand | TYCON POWER |
| Shipping Weight | 0.5000kg |
DeviceDeal authorised reseller
DeviceDeal is an authorised reseller of Tycon Power. TP-DCDC-1224-HP is supplied with the applicable Tycon Power manufacturer warranty in Australia. Warranty coverage and claims remain subject to the manufacturers current terms, eligibility requirements and product assessment.
