Tycon Power • TP-DCDC-4824-HP

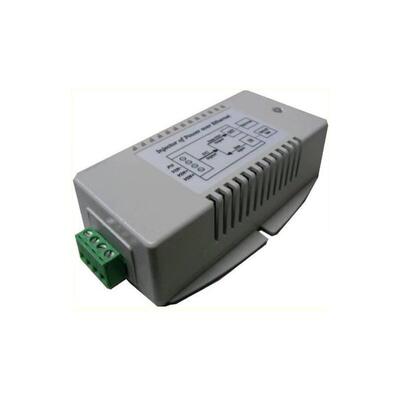

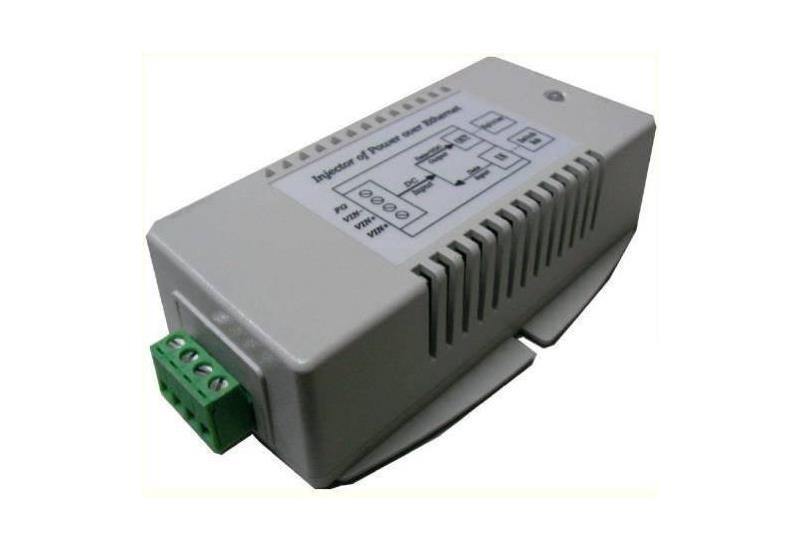

Tycon Power TP-DCDC-4824-HP 36-72VDC to 24V 35W High-Power Passive PoE Injector

The Tycon Power TP-DCDC-4824-HP converts a 36-72VDC source to a 24VDC passive PoE output rated up to 35W, with an integrated PoE inserter and stated low self-consumption.

36-72VDC input 24V passive PoE Up to 35W Integrated inserter Protected conversion

Product highlights

Key supplied and exact-model details for the TP-DCDC-4824-HP.

Wide DC input range

The supplied product information specifies a 36-72VDC input range.

24V passive PoE output

The converted output is identified as 24VDC passive PoE.

35W high-power output

Maximum output power is stated as 35W.

Integrated PoE insertion

Power is inserted onto the Ethernet connection by the integrated PoE section.

Low self-consumption

The supplied information identifies low internal power consumption.

Electrical protection

The product is presented as a protected DC-to-DC conversion and PoE power source.

Buy with confidence from DeviceDeal

DeviceDeal is an authorised Tycon Power reseller. This product is supplied with the applicable Tycon Power manufacturer warranty in Australia, subject to the manufacturer’s current terms, eligibility requirements and product assessment.

Frequently asked questions

Helpful answers based on the supplied and exact-model product information.

What does the TP-DCDC-4824-HP do?

It converts 36-72VDC input power to a 24V passive PoE output.

What is the maximum output power?

The supplied exact-model information states up to 35W.

Is the output standards-based IEEE PoE?

The supplied information identifies a 24V passive PoE output, so device voltage and wiring compatibility must be checked.

Is Gigabit Ethernet confirmed?

No exact data-rate specification was supplied for this model.

What should be checked before installation?

Confirm the DC input range, 24V passive PoE pair assignment, power demand and Ethernet speed required by the connected equipment.

What warranty applies?

DeviceDeal is an authorised Tycon Power reseller. The applicable manufacturer warranty applies, subject to Tycon Power’s terms and assessment.

(TP-DCDC-4824-HP)

Technical specifications

Tycon Power TP-DCDC-4824-HP

Product details
Brand Tycon Power
Model TP-DCDC-4824-HP
Product type High-power DC-to-DC passive PoE injector
Power and PoE
DC input 36-72VDC
PoE output voltage 24VDC
PoE output type Passive PoE
Maximum output power 35W
Integrated PoE inserter Yes
Installation notes
Network data rate Not stated in the supplied exact-model information
Compatibility requirement Connected equipment must support 24V passive PoE
Self-consumption Stated as low; no exact value supplied
SKU TP-DCDC-4824-HP
Brand TYCON POWER
Shipping Weight 0.4000kg
DeviceDeal authorised reseller

Tycon Power manufacturer warranty

DeviceDeal is an authorised reseller of Tycon Power. The TP-DCDC-4824-HP is supplied with the applicable Tycon Power manufacturer warranty in Australia. Warranty coverage and claims remain subject to the manufacturer’s current terms, eligibility requirements and product assessment.

Manufacturer warranty The applicable Tycon Power manufacturer warranty applies. No unverified warranty duration has been stated.
Keep your proof of purchase Retain your DeviceDeal tax invoice or order record to support a warranty request.
Assessment process Eligibility and the available remedy are determined under Tycon Power’s warranty terms and product assessment process.
Warranty approval, replacement, repair or other remedy is not automatic and is not represented as on-site service.
