Tycon Power • TP-DCDC-4824G-HP

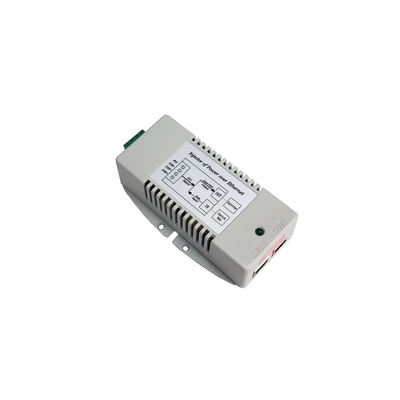

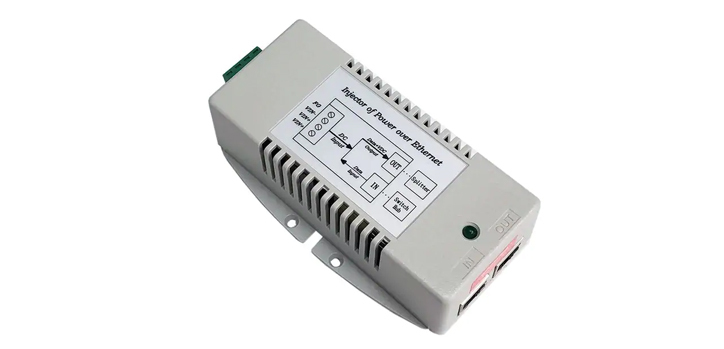

Tycon Power TP-DCDC-4824G-HP 36-72VDC to 24V 30W Gigabit Passive PoE Injector

The Tycon Power TP-DCDC-4824G-HP converts 36-72VDC input power to 24V passive PoE with Gigabit data and an exact-model maximum output of 30W.

36-72VDC input 24V passive PoE 30W output Gigabit Ethernet Dual DC inputs

Product highlights

Key supplied and exact-model details for the TP-DCDC-4824G-HP.

High-power 24V conversion

The exact model converts 36-72VDC input to a 24V passive PoE output.

30W exact-model rating

The product title and exact specification identify a 30W maximum output.

Gigabit data support

An integrated 10/100/1000Mb PoE inserter carries Gigabit Ethernet.

Dual isolated inputs

Two DC inputs support primary and backup source arrangements.

Industrial temperature range

The exact specification states operation from -40°C to 70°C.

Protection functions

Short-circuit, over-current, reverse-voltage, over-voltage, surge and overload protection are stated.

Buy with confidence from DeviceDeal

DeviceDeal is an authorised Tycon Power reseller. This product is supplied with the applicable Tycon Power manufacturer warranty in Australia, subject to the manufacturer’s current terms, eligibility requirements and product assessment.

Frequently asked questions

Helpful answers based on the supplied and exact-model product information.

What does the TP-DCDC-4824G-HP do?

It converts 36-72VDC input power to a 24V passive PoE output with Gigabit data.

What is its maximum output power?

The exact-model specification states 30W.

Why does other vendor text mention 50W?

That wording describes the wider product family. The exact TP-DCDC-4824G-HP specification is 30W.

Does it support Gigabit Ethernet?

Yes. The data path supports 10/100/1000Mb Ethernet.

Is the output passive PoE?

Yes. Confirm that the connected equipment supports 24V passive PoE before connection.

What warranty applies?

DeviceDeal is an authorised Tycon Power reseller. The applicable manufacturer warranty applies, subject to Tycon Power’s terms and assessment.

(TP-DCDC-4824G-HP)

Technical specifications

Tycon Power TP-DCDC-4824G-HP

Product details
Brand Tycon Power
Model TP-DCDC-4824G-HP
Product type High-power DC-to-DC Gigabit passive PoE injector
Power and PoE
DC input 36-72VDC
PoE output voltage 24VDC
PoE output type Passive PoE
Maximum output power 30W
DC inputs Two isolated inputs
Networking
Network data rate 10/100/1000Mb Gigabit Ethernet
Power pairs Pins 4,5 (+) and 7,8 (-)
Environmental and construction
Protection Short-circuit, over-current, reverse/over-voltage, surge and overload protection
Operating temperature -40°C to 70°C
Housing UV-resistant ABS 94V-0 plastic
SKU TP-DCDC-4824G-HP
Brand TYCON POWER
Shipping Weight 0.4000kg
DeviceDeal authorised reseller

Tycon Power manufacturer warranty

DeviceDeal is an authorised reseller of Tycon Power. The TP-DCDC-4824G-HP is supplied with the applicable Tycon Power manufacturer warranty in Australia. Warranty coverage and claims remain subject to the manufacturer’s current terms, eligibility requirements and product assessment.

Manufacturer warranty The applicable Tycon Power manufacturer warranty applies. No unverified warranty duration has been stated.
Keep your proof of purchase Retain your DeviceDeal tax invoice or order record to support a warranty request.
Assessment process Eligibility and the available remedy are determined under Tycon Power’s warranty terms and product assessment process.
Warranty approval, replacement, repair or other remedy is not automatic and is not represented as on-site service.
