Tycon Power • TP-MS4G-VHP

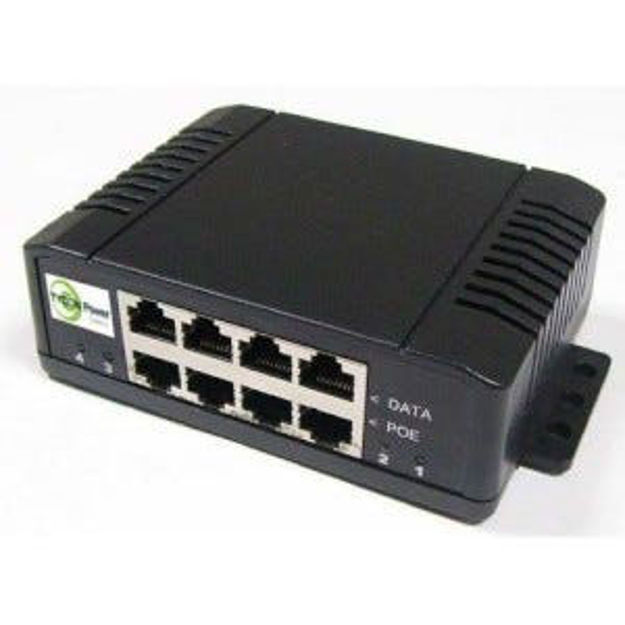

Tycon Power TP-MS4G-VHP 4-Port Gigabit 4-Pair Passive PoE Midspan - 20-60VDC, 1.8A/Port

The Tycon Power TP-MS4G-VHP is a four-port Gigabit midspan that applies 4-pair passive PoE at the connected 20-60VDC input voltage, with up to 1.8A available per port.

4 PoE ports 20-60VDC UniVolt Up to 1.8A/port 4-pair passive PoE Gigabit

Product highlights

Key supplied and exact-model details for the TP-MS4G-VHP.

Four high-power ports

Four independent midspan channels provide data input and data-plus-power output.

UniVolt output behaviour

The passive PoE output voltage follows the connected 20-60VDC input voltage.

Four-pair power delivery

Power is applied across both Ethernet pair sets for high-power compatible equipment.

Up to 1.8A per port

The maximum stated output current is 1.8A on each port.

Gigabit data support

The unit supports Gigabit Ethernet and is backward compatible with 10/100Mb.

DIN-rail installation

DIN-rail adapters are included.

Buy with confidence from DeviceDeal

DeviceDeal is an authorised Tycon Power reseller. This product is supplied with the applicable Tycon Power manufacturer warranty in Australia, subject to the manufacturer’s current terms, eligibility requirements and product assessment.

Frequently asked questions

Helpful answers based on the supplied and exact-model product information.

What does UniVolt mean on the TP-MS4G-VHP?

The PoE output voltage follows the connected 20-60VDC input voltage.

How many PoE ports are provided?

The unit provides four passive PoE output channels.

How much current is available per port?

The maximum stated output is 1.8A per port.

Does it support Gigabit Ethernet?

Yes. It supports Gigabit and is backward compatible with 10/100Mb.

Is the output IEEE-negotiated PoE?

No. It is four-pair passive PoE, so voltage and wiring must match the connected equipment.

What warranty applies?

DeviceDeal is an authorised Tycon Power reseller. The applicable manufacturer warranty applies, subject to Tycon Power’s terms and assessment.

(TP-MS4G-VHP)

Technical specifications

Tycon Power TP-MS4G-VHP

Product details
Brand Tycon Power
Model TP-MS4G-VHP
Product type Four-port Gigabit high-power passive PoE midspan
PoE port count 4
Power and PoE
DC input / PoE voltage 20-60VDC; PoE output voltage equals input voltage
PoE output type 4-pair passive PoE
Maximum output current 1.8A per port
Isolation Non-isolated design
Protection Per-port over-current, over/under-voltage and short-circuit protection
Networking
Network data rate 10/100/1000Mb Gigabit Ethernet
Power pairs Pins 1,2 and 3,6 plus pins 4,5 and 7,8
Installation and environmental
Mounting DIN rail; adapters included
Operating temperature -30°C to 60°C
SKU TP-MS4G-VHP
Brand TYCON POWER
Shipping Weight 1.5000kg
DeviceDeal authorised reseller

Tycon Power manufacturer warranty

DeviceDeal is an authorised reseller of Tycon Power. The TP-MS4G-VHP is supplied with the applicable Tycon Power manufacturer warranty in Australia. Warranty coverage and claims remain subject to the manufacturer’s current terms, eligibility requirements and product assessment.

Manufacturer warranty The applicable Tycon Power manufacturer warranty applies. No unverified warranty duration has been stated.
Keep your proof of purchase Retain your DeviceDeal tax invoice or order record to support a warranty request.
Assessment process Eligibility and the available remedy are determined under Tycon Power’s warranty terms and product assessment process.
Warranty approval, replacement, repair or other remedy is not automatic and is not represented as on-site service.
