Standards-based PoE input
The input accepts 48V IEEE 802.3af/at PoE from a compatible switch or injector.

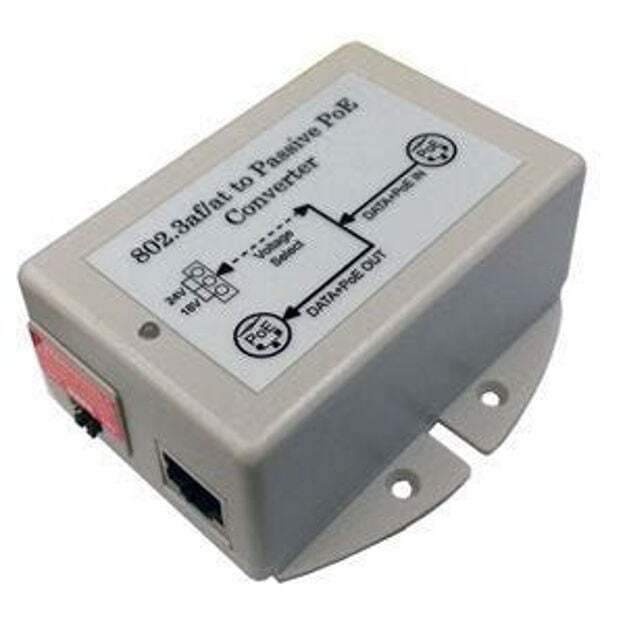

The Tycon Power TP-POE-1824G accepts 48V IEEE 802.3af/at PoE and converts it to a selectable 18V or 24V passive PoE output while carrying Gigabit Ethernet.
Key supplied and exact-model details for the TP-POE-1824G.
The input accepts 48V IEEE 802.3af/at PoE from a compatible switch or injector.
An external selection sets the output to 18VDC or 24VDC passive PoE.
The G model supports 10/100/1000Mb Ethernet.
The current product title identifies a 24W output rating.
The manufacturer states operation through CAT5 cable up to 100m.
Short-circuit, over-current, overload and over-voltage protection are stated.
DeviceDeal is an authorised Tycon Power reseller. This product is supplied with the applicable Tycon Power manufacturer warranty in Australia, subject to the manufacturer’s current terms, eligibility requirements and product assessment.
Helpful answers based on the supplied and exact-model product information.
It converts 48V IEEE 802.3af/at PoE input to selectable 18V or 24V passive PoE output.
The product uses an external selection to choose 18VDC or 24VDC.
The G model supports Gigabit Ethernet.
The current exact-model title states 24W.
Only devices that accept the selected 18V or 24V output and the stated pair assignment should be connected.
DeviceDeal is an authorised Tycon Power reseller. The applicable manufacturer warranty applies, subject to Tycon Powers terms and assessment.
(TP-POE-1824G)
Tycon Power TP-POE-1824G
| Product details | |
|---|---|
| Brand | Tycon Power |
| Model | TP-POE-1824G |
| Product type | Gigabit IEEE PoE-to-passive-PoE converter |
| Power and PoE | |
| PoE input | 48V IEEE 802.3af/at |
| PoE output | Selectable 18VDC or 24VDC passive PoE |
| Output selection | External jumper / selector |
| Maximum output power | 24W exact-model title |
| Power pairs | Pins 4,5 (+) and 7,8 (-) |
| Networking | |
| Network data rate | 10/100/1000Mb Gigabit Ethernet |
| Maximum stated cable distance | Up to 100m |
| Environmental and construction | |
| Protection | Surge, short-circuit, overload and over-voltage protection |
| Operating temperature | -30°C to 60°C |
| Housing | UV-resistant ABS 94V-0 plastic |
| Mounting | Floor, desktop or wall |
| SKU | TP-POE-1824G |
| Brand | TYCON POWER |
| Shipping Weight | 0.2000kg |
DeviceDeal is an authorised reseller of Tycon Power. The TP-POE-1824G is supplied with the applicable Tycon Power manufacturer warranty in Australia. Warranty coverage and claims remain subject to the manufacturer’s current terms, eligibility requirements and product assessment.
