Expansion Card

E10G18-T1

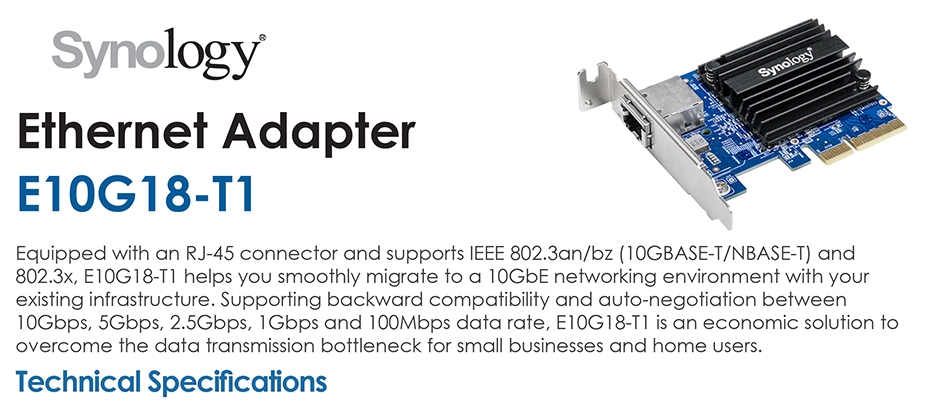

Name: Synology E10G18-T1 PCIe 3 10GBe Single Ethernet Adapter
Brand: SYNOLOGY
SKU: E10G18-T1
Price: 270 AUD
Availability: OutOfStock

Enterprise-grade expansion card storage solution

E10G18-T1 is an economic solution to overcome the data transmission bottleneck for small businesses and home users.

Flexible and economic solution for 10GbE adoption

Equipped with an RJ-45 connector and supports IEEE 802.3an/bz (10GBASE-T/NBASE-T) and 802.3x, E10G18-T1 helps you smoothly migrate to a 10GbE networking environment with your existing infrastructure. Supporting backward compatibility and auto-negotiation between 10Gbps, 5Gbps, 2.5Gbps, 1Gbps, and 100Mbps, E10G18-T1 is an economic solution to overcome the data transmission bottleneck for small businesses and home users.

5-year warranty

Built to handle intensive workloads, Synology network add-in-cards are backed by Synology's 5 year limited warranty.

(E10G18-T1)

Technical Specifications

Complete hardware and software specifications

General

Host Bus Interface PCIe 3.0 x4

Bracket Height Low Profile and Full Height

Size (Height x Width x Depth) 68.1 mm x 86.0 mm x 13.6 mm

Operating Temperature 0°C to 40°C (32°F to 104°F)

Storage Temperature -20°C to 60°C (-5°F to 140°F)

Relative Humidity 5% to 95% RH

Warranty 5 Years

Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Network

IEEE Specification Compliance IEEE 802.3x Flow Control IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3bz 2.5Gbps / 5Gbps Ethernet IEEE 802.3an 10Gbps Ethernet

Data Transfer Rates 10 Gbps

Network Operation Mode Full Duplex

Supported Features 9 KB Jumbo Frame TCP/UDP/IP Checksum Offloading Auto-negotiation between 100Mb/s, 1Gb/s, 2.5Gb/s, 5Gb/s, and 10Gb/s

Applied Models

Applied Models FS series: FS6400, FS3600, FS3410, FS3400, FS3017, FS2500, FS2017, FS1018 SA series: SA6400, SA3610, SA3600, SA3410, SA3400D, SA3400, SA3200D UC series: UC3400, UC3200 25 series: RS2825RP+, DS1825+ 23 series: RS2423RP+, RS2423+, DS1823xs+ 22 series: RS822RP+, RS822+, DS3622xs+, DS2422+ 21 series: RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+, DS1821+, DS1621xs+, DS1621+ 20 series: RS820RP+, RS820+ 19 series: RS1619xs+, RS1219+, DS2419+II, DS2419+, DS1819+ 18 series: RS3618xs, RS2818RP+, RS2418RP+, RS2418+, RS818RP+, RS818+, DS3018xs, DS1618+ 17 series: RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, RS3617xs, DS3617xsII, DS3617xs, DS1817+, DS1517+ 16 series: RS18016xs+ 15 series: RC18015xs+, DS3615xs 14 series: RS3614xs+, RS3614RPxs, RS3614xs 13 series: RS10613xs+, RS3413xs+ 12 series: RS3412RPxs, RS3412xs, DS3612xs 11 series: RS3411RPxs, RS3411xs, DS3611xs

Notes DSM version requirement: 6.2-23739-2 onward (or 6.1-15284-2 onward with DSM 6.1)

SKU	E10G18-T1
Barcode #	846504003105
Brand	SYNOLOGY
Shipping Weight	0.2000kg
Shipping Width	0.140m
Shipping Height	0.180m
Shipping Length	0.030m
Shipping Cubic	0.000756000m3

Manufacturer Warranty: 5 Years Limited Warranty
Manufacturer Contact Info: http://www.synology.com
