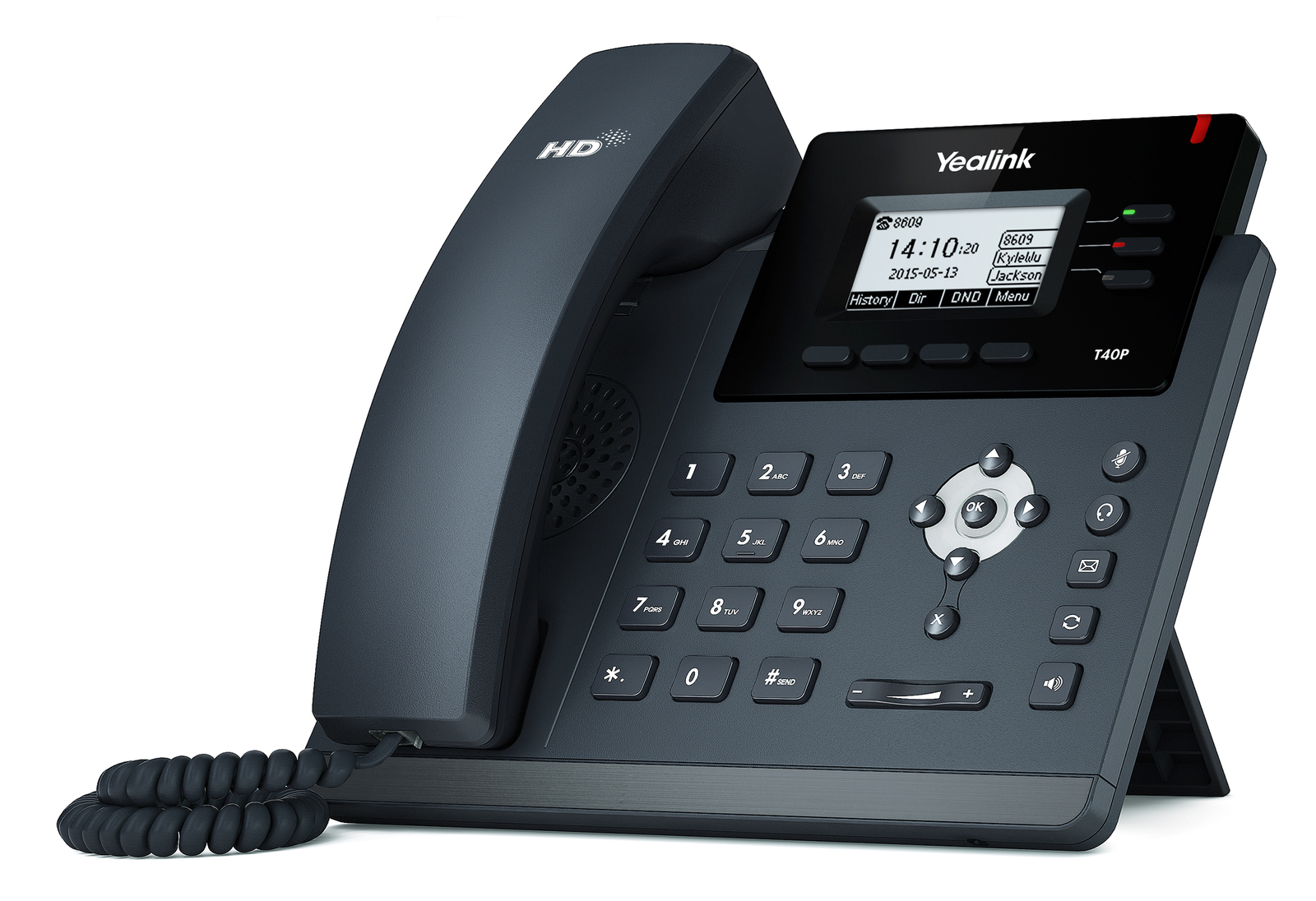

SIP-T40P

3 Line, Dual 10/100, 2.3" LCD IP Phone Paper label free design, Optima HD Audio

(SIP-T40P)

Audio Features
•	HD voice: HD handset, HD speaker
•	Codecs: G.722, G.711(A/µ), G.723, G.729AB, G.726, GSM
•	DTMF: In-band, Out-of-band(RFC 2833) and SIP INFO
•	Full-duplex hands-free speakerphone with AEC
•	VAD, CNG, AEC, PLC, AJB, AGC
Phone Features
•	3 VoIP accounts
•	Mute, auto-answer, DND
•	One-touch speed dial, redial
•	Call forward, call waiting, call transfer, call hold
•	Group listening, call return
•	Mute, auto answer, DND
•	Call history: dialed/received/missed/forwarded
•	3-way confernecing
•	Direct IP call without SIP proxy
•	Ring tone selection/import/delete
•	Hotline, emergency call
•	Set date time manually or automatically
•	Dial plan, XML Browser, action URL
Directory
•	Local phonebook up to 1000 entries
•	BroadSoft contacts: custom/enterprise/personal/common/search/speed dial
•	Black list
•	XML/LDAP remote phonebook
•	Intelligent search method
•	Phonebook search/import/export
IP-PBX and BroadSoft Features
•	Busy Lamp Field (BLF), BLF list
•	Bridged Line Apperance(BLA)/SCA
•	Anonymous call, Anonymous call rejection
•	DND & forward synchronization
•	BroadWorks Anywhere
•	N-Way Calling, remote office
•	Message Waiting Indicator (MWI)
•	BroadSoft call center features
•	Voice mail, call park, call pickup
•	Intercom, paging, music on hold
•	Call recording, hot-desking
Display and Indicator
•	2.3" 132 x 64-pixel 4-level grayscale graphical LCD display with backlight
•	Caller ID with name, number
•	LED for call and message waiting indication
•	Dual-color (red or green) illuminated LEDs for line status information
•	Intuitive user interface with icons and soft keys
•	National language selection
Feature keys
•	3 line keys with LED
•	5 features keys: message, headset, mute, redial, hands-free speakerphone
•	4 context-sensitive “soft” keys
•	6 navigation keys
•	2 volume control keys
Interface
•	Dual-port RJ-45100Base-TX Fast Ethernet
•	1x RJ-9 (4P4C) handset port
•	1x RJ-9 (4P4C) headset port
•	1x RJ-12 (6P6C) EHS port
•	Power over Ethernet (IEEE 802.3af), Class 2
Other Physical Features
•	Stand with 2 adjustable angles
•	Wall mountable
External universal AC adapter (optional): AC 100-240V input and DC 5V/1.2A output
•	Power consumption (PSU): 1.05W-3.23W
•	Power consumption (POE): 1.7W-3.2W
•	Dimension(WxD*HxT): 212mmx189mmx175mmx54mm
•	Operating humidity: 10-95%
•	Storage temperature: -10-50°C
Management
•	Configuration: browser/phone/auto-provision
•	Auto provision via FTP/TFTP/HTTP/HTTPS for mass deployment
•	Auto-provision with PnP
•	BroadSoft device management
•	Zero-sp-touch
•	Provisioning server redundancy supported
•	Phone lock for personal privacy protection
•	Reset to factory, reboot
•	Package tracing export, system log
Network and Security
•	SIP v1 (RFC2543), v2 (RFC3261)
•	NAT transverse: STUN mode
•	Proxy mode and peer-to-peer SIP link mode
•	IP assignment: static/DHCP
•	HTTP/HTTPS web server
•	Time and date synchronization using SNTP
•	UDP/TCP/DNS-SRV(RFC 3263)
•	QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
•	SRTP for voice
•	Transport Layer Security (TLS)
•	HTTPS certificate manager
•	AES encryption for configuration file
•	Digest authentication using MD5/MD5-sess
•	OpenVPN, IEEE802.1X
•	IPv6

SKU	SIP-T40P
Barcode #	6938818301269
Brand	Yealink
Shipping Weight	1.5000kg
Shipping Width	0.150m
Shipping Height	0.220m
Shipping Length	0.220m
Shipping Cubic	0.007260000m3
